LC-60E77UN/LC-65E77UM/LC-C6077UN/LC-C6577UM
4 – 4

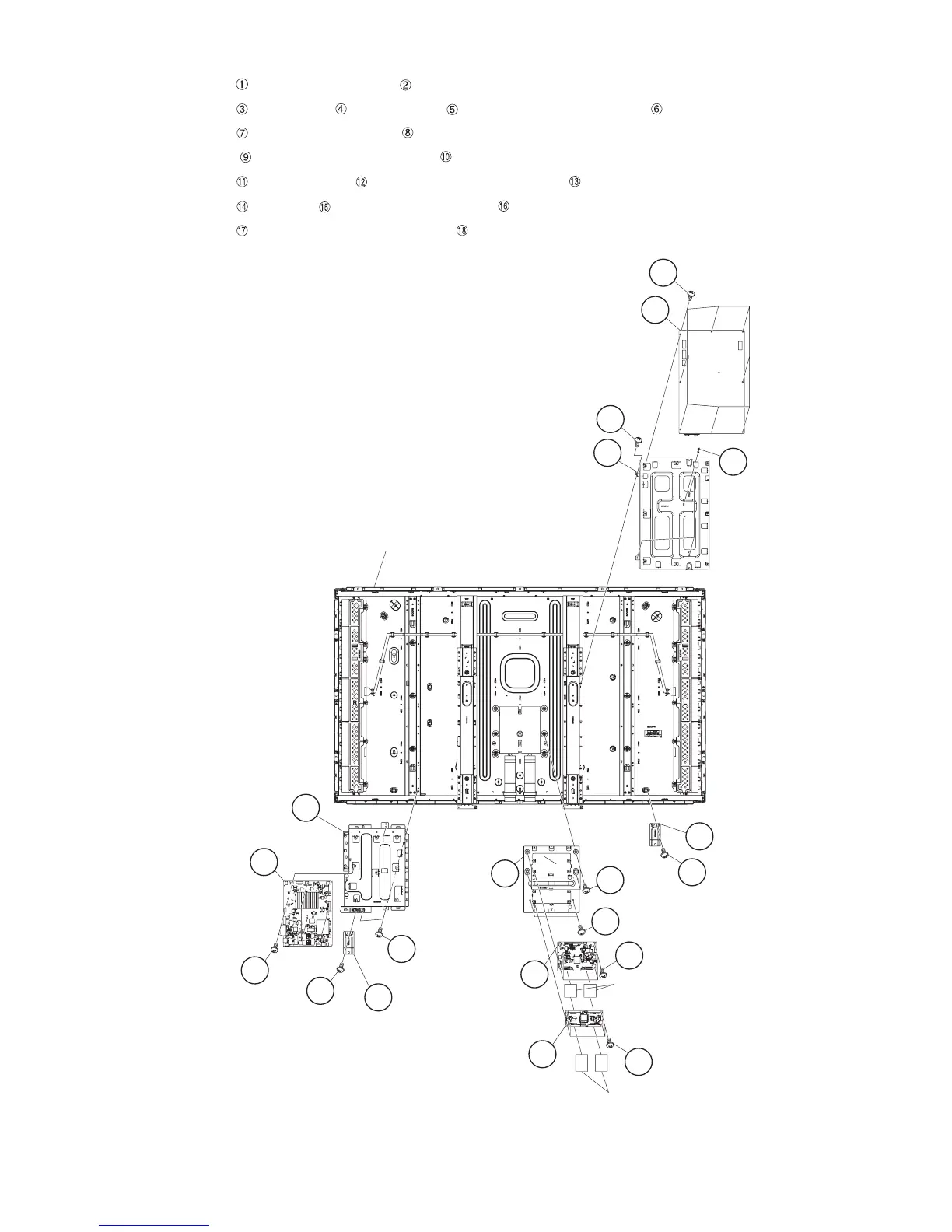

4. Removing of MAIN Unit, FPGA Unit, LCD Control Unit and POWER Unit.
1. Remove the 4 lock screws and detach the MAIN Unit .
2. Remove the 3 lock screws , 2 lock screws and 2 Panel Lug and detach the MAIN PWB Angle .
3. Remove the 4 lock screws and detach the FPGA Unit .
4. Remove the 4 lock screws and detach the LCD Control Unit .
5. Remove the 2 lock screws and 4 lock screws and detach the Control PWB Angle .
6. Remove the 8 lock screws and 1 hook and detach the POWER Unit .
7. Remove the 4 lock screws and detach the POWER PWB Angle
16POWER Unit
18POWER PWB Angle
2MAIN Unit
6MAIN PWB Angle
15
4
12
3
5 Panel Lug
5 Panel Lug
11
9
7
8FPGA Unit
10LCD Control Unit
13
Control
PWB Angle
4
1
14
17
LCD Panel Module Unit Ass'y
Connecting
Cord
(FFC2)
Connecting
Cord
(FFC1)
To Next Page
