LC-60E77UN/LC-65E77UM/LC-C6077UN/LC-C6577UM
4 – 3
3. Removing of Connectors, Side Terminal Cover Ass’y, MAIN PWB Shield.
1. Remove the 3 lock screws , Side Terminal Cover Ass’y , 2 lock screws and 4 lock screws and detach the MAIN PWB Shield .
2. Disconnect the following connectors from the MAIN Unit. (LB1, PD, LP, LW, KM)
3. Disconnect the following connectors from the LCD Control Unit and FPGA Unit. (LW, PL, LP)
4. Disconnect the following connectors from the POWER Unit. (LA2, LA1, PD, PL)

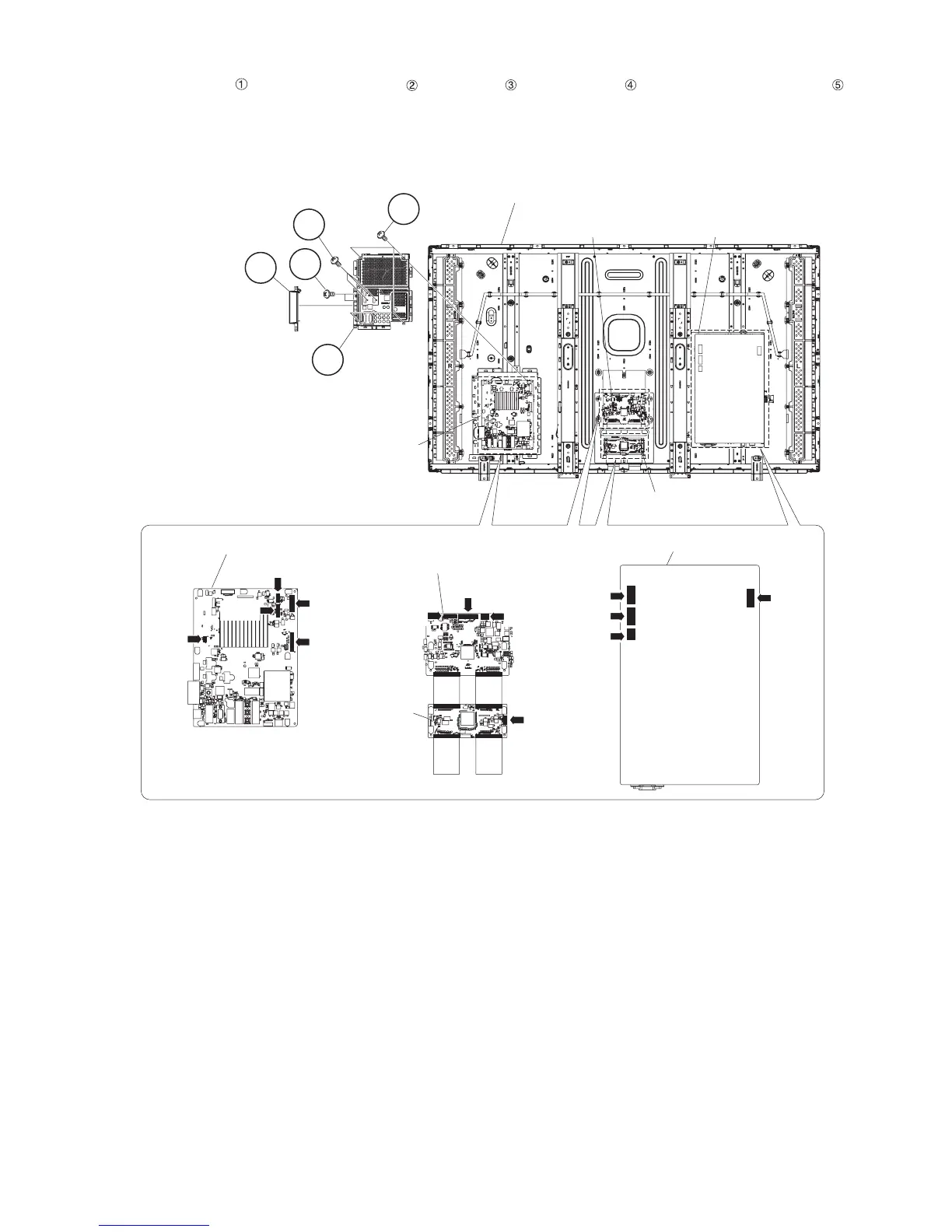

LCD Panel Module Unit Ass'y
2Side Terminal
Cover Ass'y
3
1
4
5MAIN PWB Shield
MAIN Unit
POWER UnitLCD Control Unit
FPGA Unit
MAIN Unit
POWER Unit
LCD Control Unit
FPGA Unit
[LB1]
[LA2]
[LA1]
[KM]
[LP]
[LP]
[PD]
[PL]
[PD]
[PL]
[PL]
[LW]
[LW]
To Next Page
