Sharp LC-60LE650U User Manual

LC-60/70LE650U/C6500U/LE657U,LC-60/70LE755U/LE757U/LE857U/C7500U
5 – 12

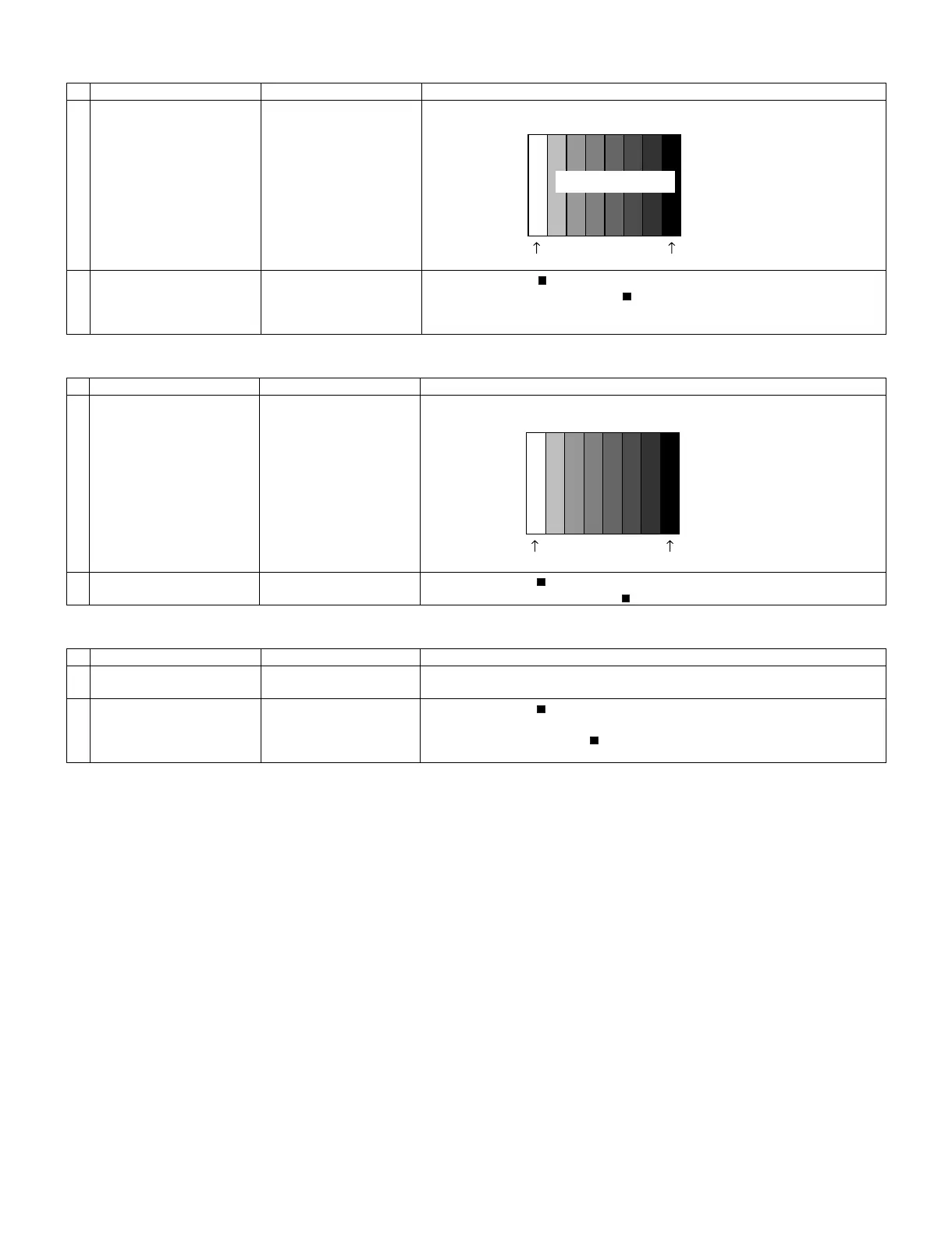

8.2.4 Component 33K signal adjustment
8.2.5 Analog RGB signal adjustment
8.2.6 Tuner/V-CHIP adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 Setting 1080i signal • Send the 100% color bar signal to the component input.
2 Automatic adjustment exe-
cution
Point the cursor to [ COMP33K ADJ(INPUT1)] and press the [Enter] key.
The adjustment is complete when [ COMP33K ADJ(INPUT1) OK] is displayed.
"Compornent 15K" Adjustment is internally handled automatically.
AUTO CLANP 1, parameters are copied from the 33K.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting Signal: XGA
(1024x768) 60Hz
SYNC: HV separate
• Send the 100% color bar signal to the PC input.
2 Automatic adjustment exe-
cution
Point the cursor to [ ANALOG RGB ADJ] and press the [Enter] key.
The adjustment is complete when [ ANALOG RGB ADJ OK] is displayed.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting NTSC RF signal
US-7(AIR)ch
• Send the NTSC signal to the RF antenna input.
2 Automatic adjustment exe-
cution
Point the cursor to [ VCHIP TEST(*07ch)] and press the [Enter] key.
(* Adjust the selected channel to the in-house signal.)
The adjustment is OK when [ VM-OK] is displayed in green.
(NG when VM-NG is displayed in red.)
100% white 0% black
1080i
100% color bar
Color saturation: 100%
100% white 0% black
XGA (1024x768)
100% color bar

Sharp LC-60LE650U Specifications

General

Display diagonal	60 \
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Edge-Lit LED
Supported video modes	1080p
Contrast ratio (dynamic)	4000000:1
Viewing angle, horizontal	176 °
3D	No
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
HDMI version	1.4
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Aquos Link
Electronic Program Guide (EPG)	-
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Power consumption (typical)	188 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	360 mm
Height (with stand)	851 mm
Weight (with stand)	28000 g
Depth (without stand)	77 mm
Width (without stand)	1379 mm
Height (without stand)	826 mm
Weight (without stand)	25000 g
