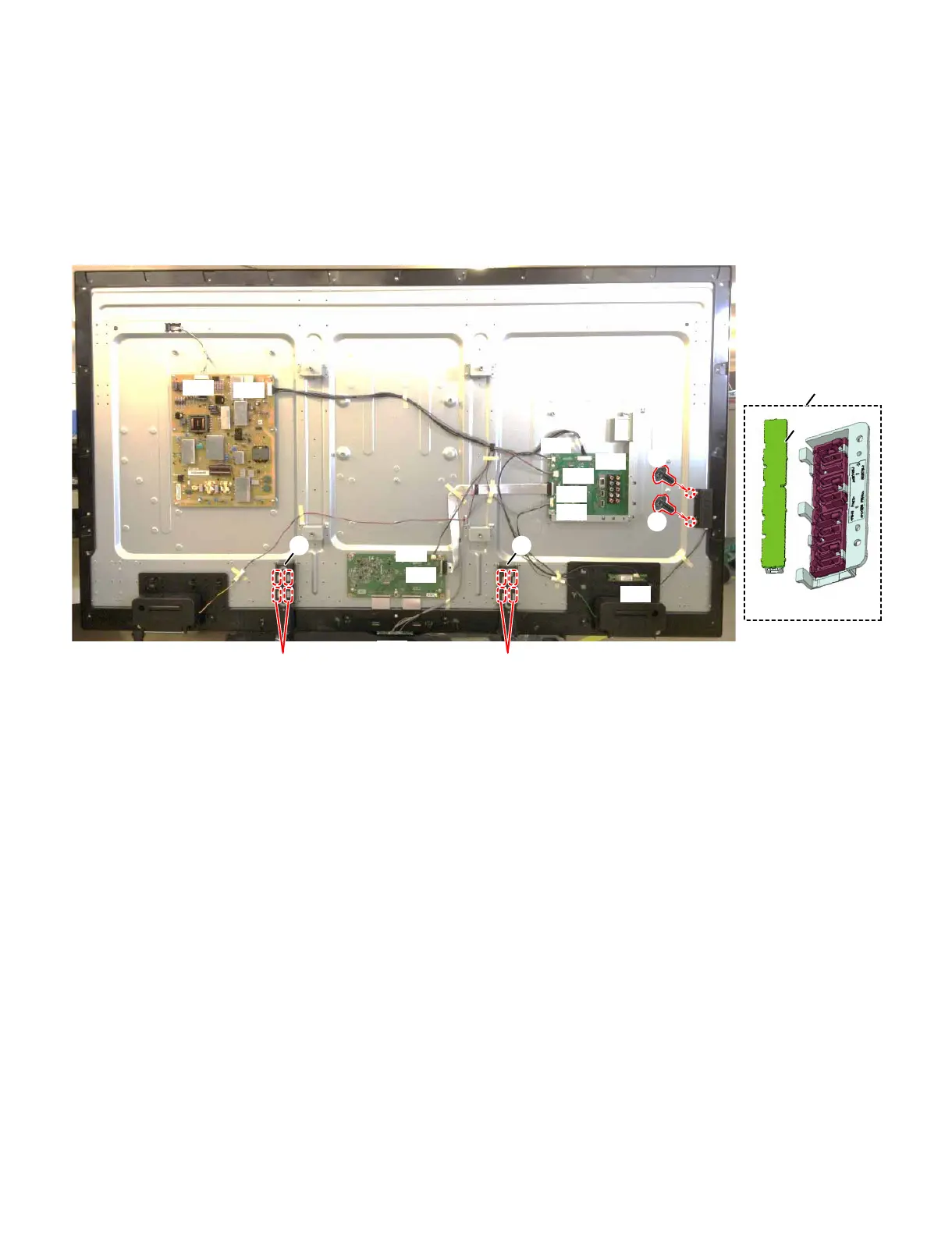

2. Removing of connectors, Bottom Cover and KEY Cover Ass'y.
1. Remove the 8 Hooks and detach the 2 Bottom Covers (1).
2. Disconnect the following connectors from the MAIN Unit. (PD, UB, SP, LW, RA)
3. Disconnect the following connectors from the LCD CONTROL Unit. (LW, PL)
4. Disconnect the following connectors from the POWER/LED DRIVER Unit. (PD, L1)
5. Disconnect the following connectors from the Wi-Fi Unit. (UB)
6. Disconnect the following connectors from the RC/ICON Unit. (RA)
7. Remove the 2 lock screws (2) and detach the KEY Cover Ass'y (3) and disconnect the KM connector.
8. Remove 3 hooks and detach the KEY Unit (4) from the KEY Cover Ass'y (3).
RA
LW
SP
UB
PD
LW
PL
PD
L1
RA
UB
KM
*QQM *QQM
Ԙ Ԙ
ԙ
ԙ
Ԛ
ԛ

Sharp LC-60LE660U Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	60 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Edge-Lit LED
Contrast ratio (dynamic)	4000000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	AquoMotion 240
3D	No
Teletext function	-
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Package depth	200 mm
Package width	1521 mm
Package height	949 mm
Package weight	31700 g
Sustainability certificates	ENERGY STAR
Cables included	AC

Weight and Dimensions

Depth (with stand)	343 mm
Height (with stand)	824 mm
Weight (with stand)	24600 g
Depth (without stand)	86 mm
Width (without stand)	1355 mm
Height (without stand)	781 mm
Weight (without stand)	22800 g
