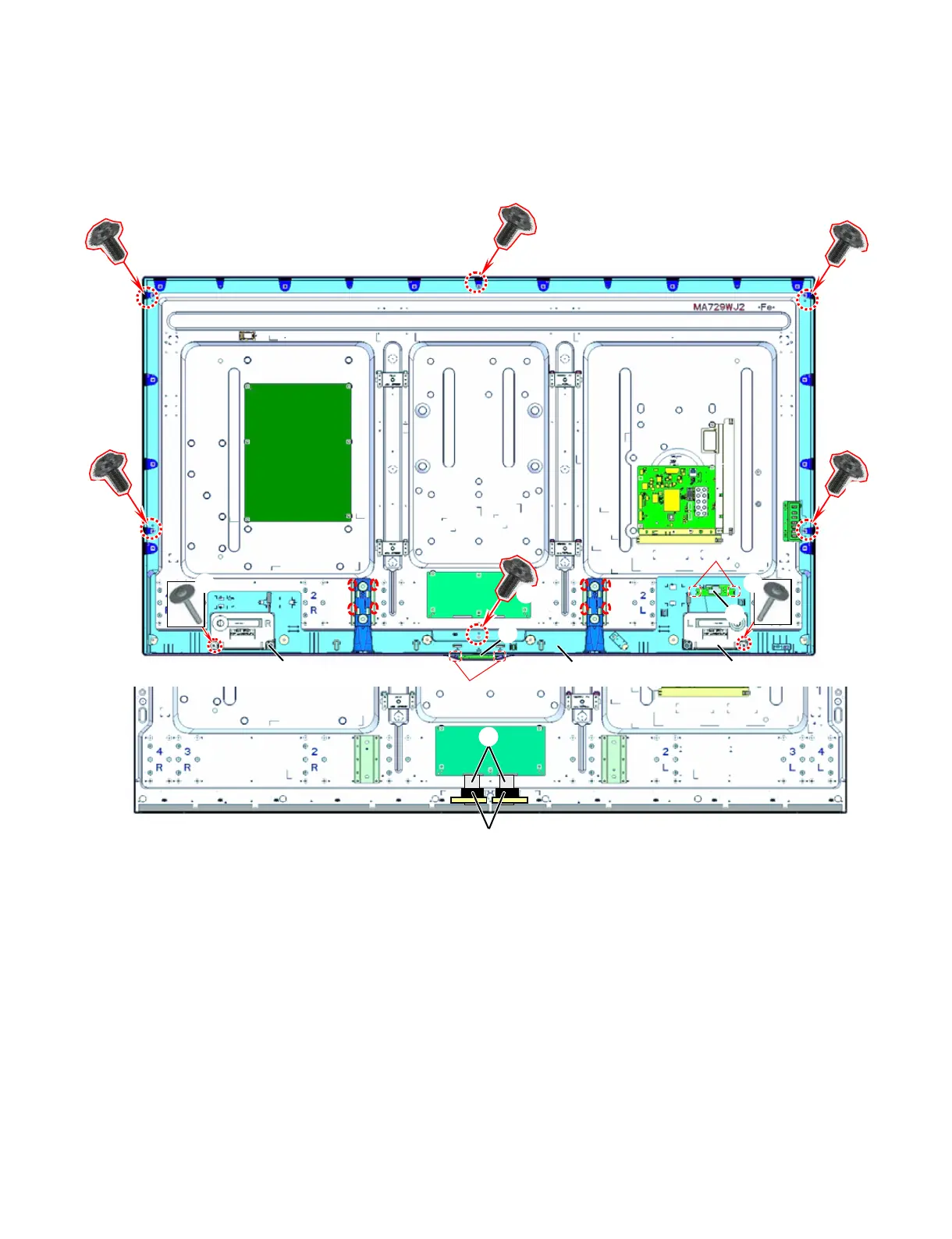

3. Removing of Middle Cabinet Ass'y, Speaker Unit (L/R), RC/ICON Unit and Wi-Fi Unit.
1. Remove the 2 lock screws (1) and detach the Speaker Unit (L) (2), Speaker Unit (R) (3).
2. Remove the 6 lock screws (4) and detach the Middle Cabinet Ass'y (5).
3. Remove the 2 hooks and detach the RC/ICON Unit (6) from the Middle Cabinet Ass'y (5).
4. Remove the 2 hooks and detach the Wi-Fi Unit (7) from the Middle Cabinet Ass’y(5).
5. Remove the 2 connecting Cords(FFC80P) (8), 2 Ferrite Cores (9).
