Installation
You can install the touch display for each monitor in the
following positions.
Installation position LL-S242A-W LL-P202V
Standing
position
Rack stand Yes No
Variable stand
No Yes
Pen writing position No Yes
Horizontal position Yes Yes

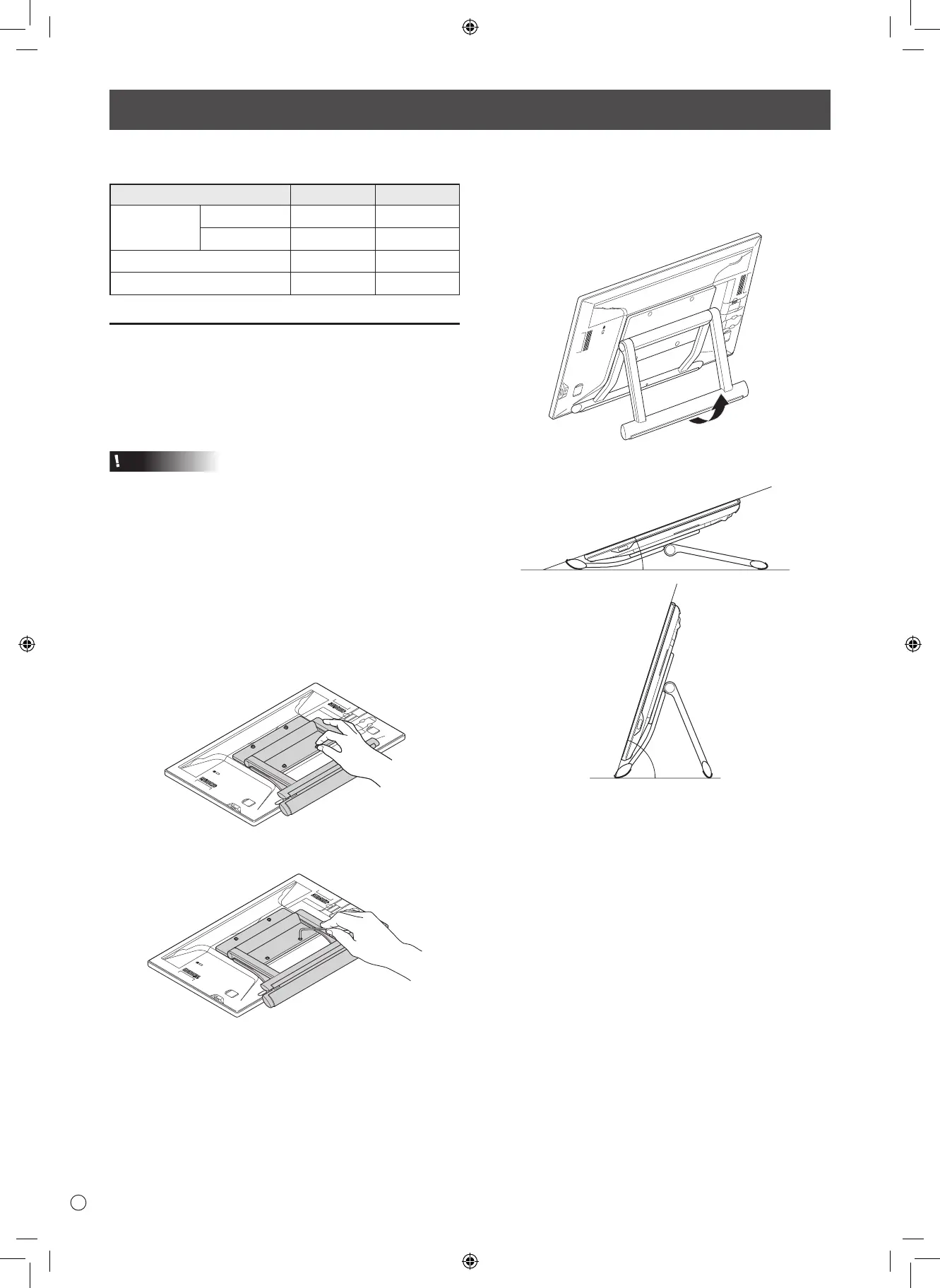

Installing on a stand
(Standing position)
n
LL-P202V
Placement on the variable stand
Place the unit on the supplied variable stand.
Caution
• The variable stand is designed for placement of the unit in
the landscape orientation. It cannot be used for the portrait
orientation.
• For installation, place the monitor face-down carefully on a
soft cloth on top of a at, stable surface.
• Applying excessive pressure to the LCD panel with your
hands may result in damage to the unit.
• Be careful not to get your ngers caught when adjusting the
angle, for example.
1. Place the variable stand on the rear of the monitor,
insertthexingscrewsandtightenbyhandtoposition
the stand.
2. Securelytightenthexingscrewsusingthesupplied
hexagonalwrench.
3. Place the monitor in the standing position, and adjust
the angle of the stand.
Hold the display with one hand so that it does not fall over,
hold the rear leg of the stand with your other hand, and
adjust the angle of the stand.
The legs can extend about 20 to 75 degrees in relation to
the at surface.
20°
75°
