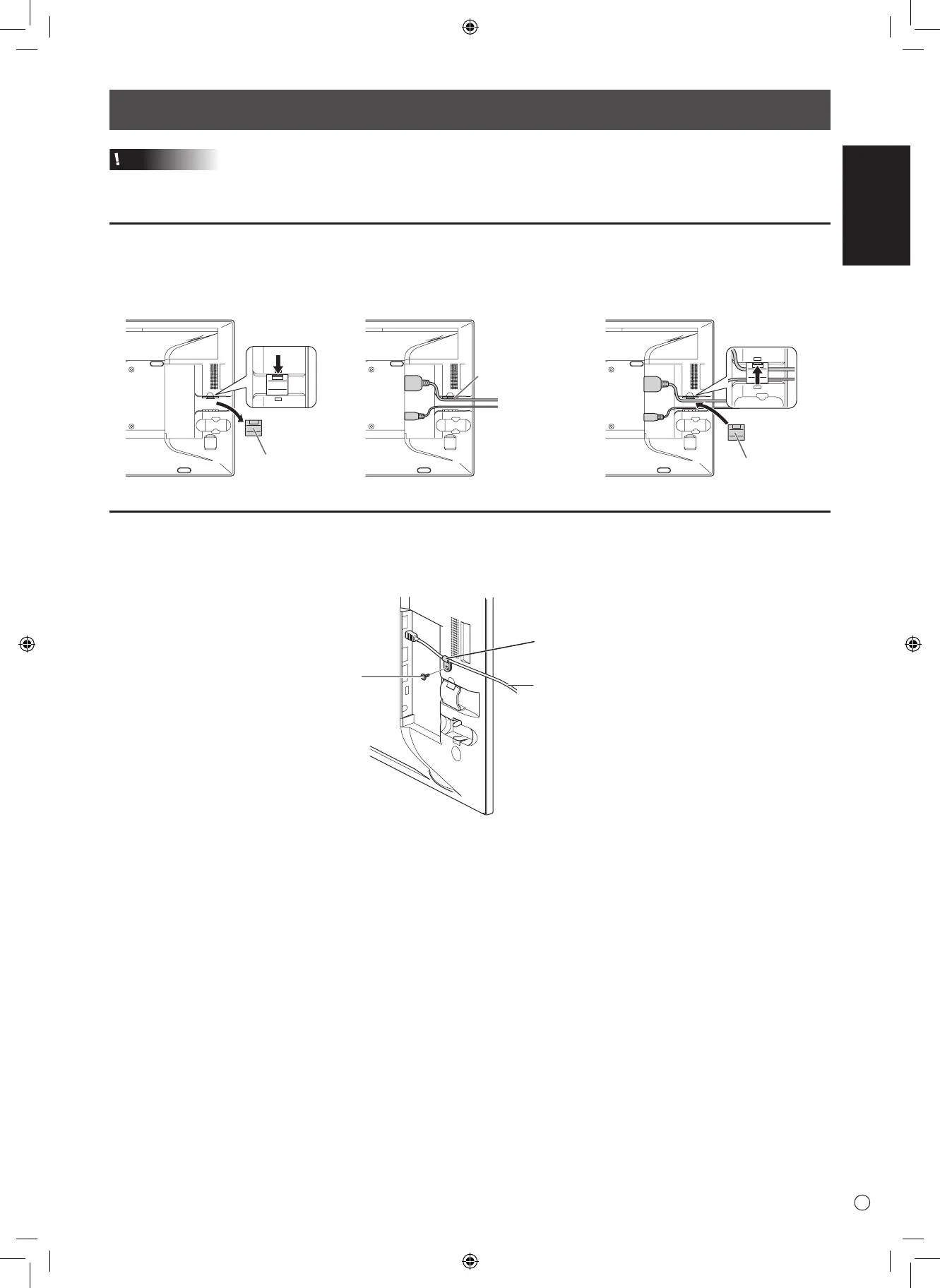

Binding Cables
Caution
• When connecting cables, spread a soft cloth on a stable level surface such as a desk, and gently place the monitor on it with
the screen facing down.
Video cable and USB cable
Secure the video cable (HDMI or DisplayPort) and USB cable using the cable clamp.
1. Remove the cable clamp.
Cable clamp
2. Route the cables through the cable
restraint slot.
Cable restraint
slot
3. Push the cable clamp down into
place.
Cable clamp
Digitizer pen cable
Secure the digitizer pen cable using the supplied clamper and xing screw.
1. Pass the digitizer pen cable through the ring of the clamper.
2. Attachtheclamperusingthexingscrew.
Clamper
Digitizer pen cable
Fixing screw
