MD-MT821/W
– 4 –

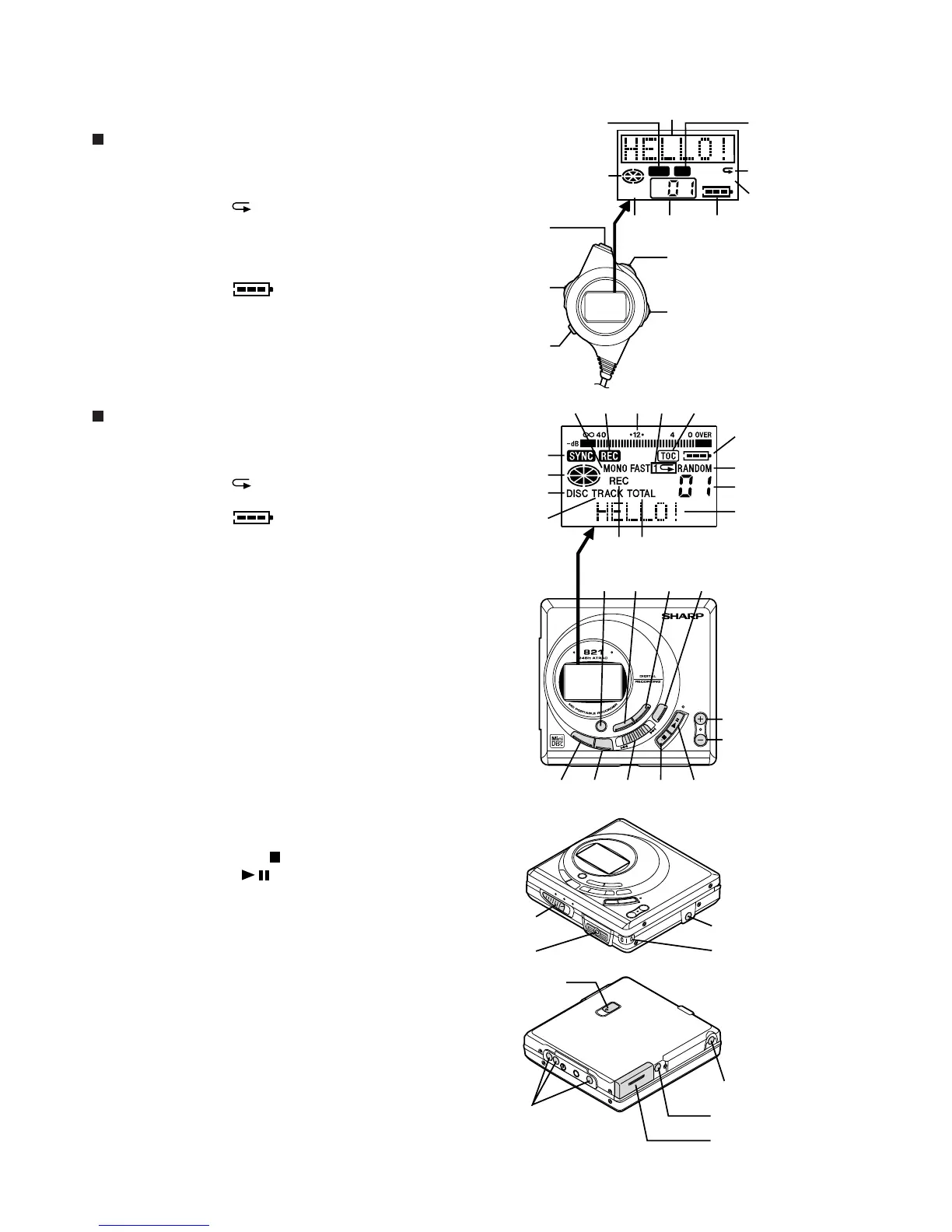

NAMES OF PARTS
Remote control unit
1. Synchro Recording Indicator
2. Character/Time Information Indicator
3. Record Indicator
4. Repeat Indicator:
5. Random Indicator
6. Disc Mode Indicator
7. Total Track Number Indicator
8. Track Number Indicator
9. Battery Indicator:
10. Headphones Jack (MT821)
10. Earphones Socket (MT821W)
11. Display/Volume Shuttle Switch
12. Hold Switch
13. Play/Pause/Fast Reverse/ Fast Forward Shuttle Switch
14. Stop/Power Off/Bass/Play Mode Shuttle Switch
Main unit
1. Monaural Long-Play Mode Indicator
2. Record Indicator
3. Level Meter
4. Repeat Indicator:
5. TOC Indicator
6. Battery Indicator:
7. Random Indicator
8. Track Number Indicator
9. Character/Time Information Indicator
10. Synchro Recording Indicator
11. Disc Mode Indicator
12. Disc Name Indicator
13. Track Name Indicator
14. Remaining Recording Time Indicator
15. Total Track Number Indicator
16. Record/Track Mark Button
17. Mode Button
18. Bass/Delete Button
19. Enter/Fast Play/Synchro Button
20. Volume/Cursor Up Button: +
21. Volume/Cursor Down Button: -
22. Edit/Auto Mark/Time Mark Button
23. Display/Character Select Button
24. Fast Reverse/Fast Forward/Record-ing Level Control/
Name Select Shuttle Switch
25. Stop/Power Off Button: /:OFF
26. Play/Pause Button:
27. Open Lever
28. Headphones Jack (MT821)
28. Earphones Socket (MT821W)
29. Optical/Line Input Jack (MT821)
29. Optical/Line Input Socket (MT821W)
30. Handstrap Holder
31. Hold Switch
32. Battery Case Connection Terminals
33. Microphone Input Jack (MT821)
33. Microphone Input Socket (MT821W)
34. 5V DC Input Jack (MT821)
34. 5V DC Input Socket (MT821W)
35. Rechargeable Lithium-lon Battery Compartment
RANDOM
TOTAL
1
REC
SYNC
1
6
2
3
4
5
78 9
13
10
11
12
14
12345
6
7
8
9
10
11
12
13
1415
20
16
26
M
O
D
E
B
A
S
S
E
N
T
E
R
S
Y
N
C
R
E
C
L
E
V
E
L
:
O
F
F
VOL
REC
E
D
I
T
D
I
S
P
17 18 19
21
25242322
27
28 30
29
31
32
35
34
33
