Sharp MD-X5H User Manual

MD-X5H/CP-X5H
– 10 –

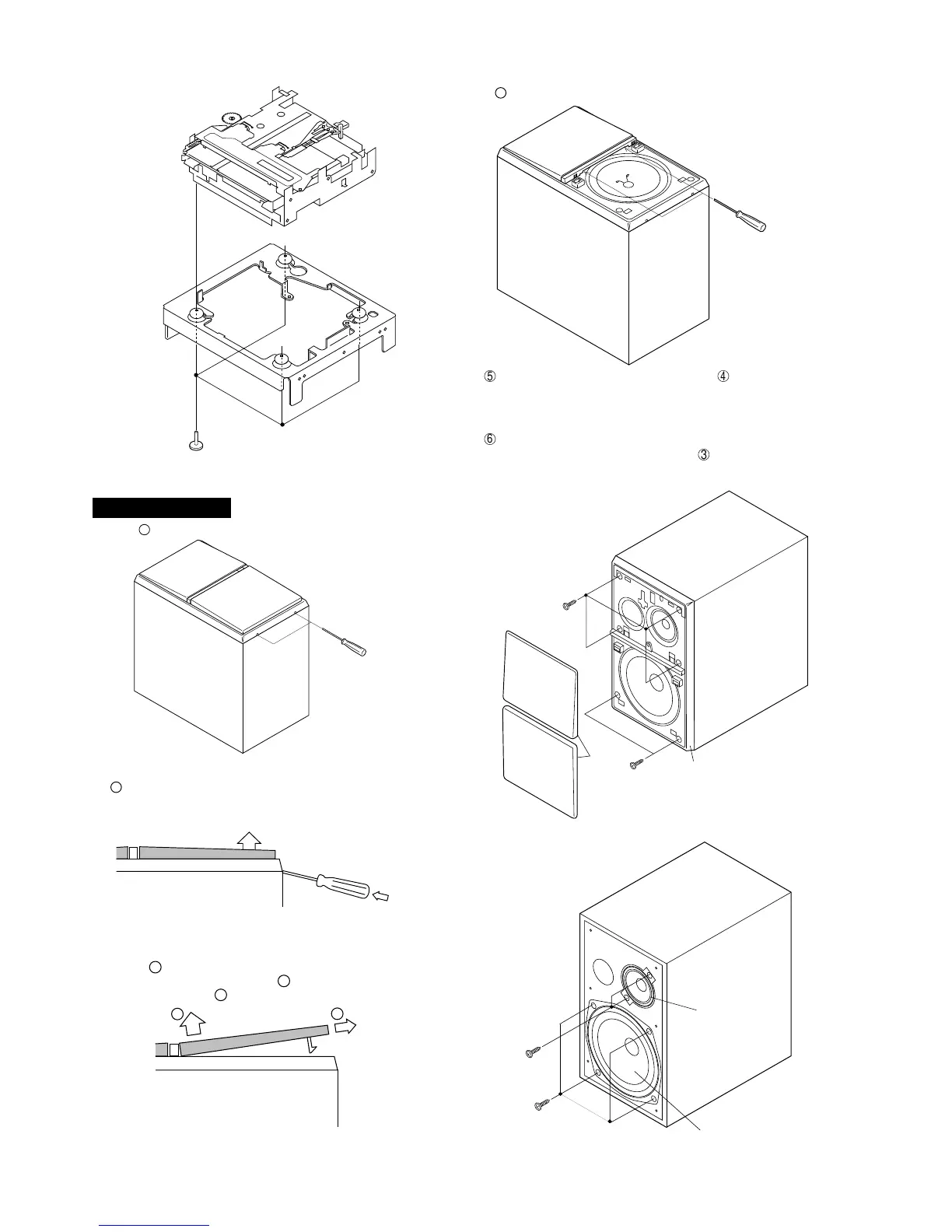

CP-X5H
Figure 10-2
Figure 10-3
Figure 10-1
Figure 10-5
Figure 10-6
Figure 10-4
(R1)x4
ø1.7x8.9mm
MD Mechanism
Front Pane
(A2)x2
ø4x16mm
(A2)x4
ø4x16mm
(A1)x2
(B1)x4
ø4x16mm
(C1)x2
ø4x16mm
Speaker
Tweeter
Bottom Side
Insert the head of screwdriver
or metallic bar (2.5 or less) into
the panel notch hole.
1
Insert the head of screwdriver into the hole,
and push further the screwdriver, pulling up
the net. Thereby the lower pawl is disengaged
It is better to hold the
screwdriver aslant as
shown in the figure.
2
1
1
2
3
After disengaging the lower pawl pull slightly
in the arrow direction 1 , and then pull in the
direction 2 . Thereby the net can be removed.
Push the vicinity of end
of center decoration notch.
4
5 Insert the head of screwdriver near 4 , push further the
screwdriver, pulling up the net. Thereby the lower pawl is
disengaged (at first disengage at one side and then at other
side).
6 After disengaging both pawls disengage the upper pawl by
the same procedure as stated in 3 above.

Sharp MD-X5H Specifications

General

Brand	Sharp
Model	MD-X5H
Category	Stereo System
Language	English
