MD-X5H/CP-X5H

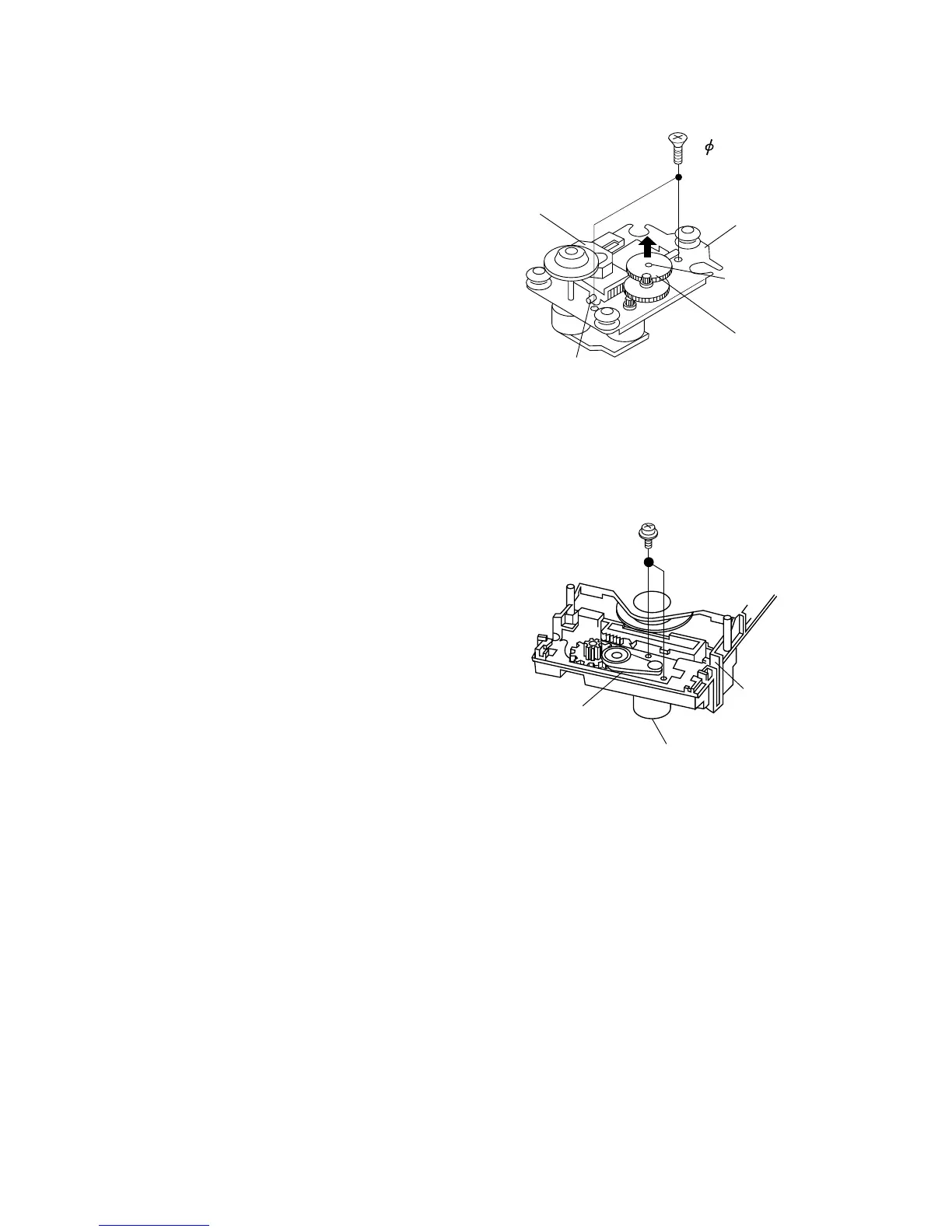

Figure 13-1
How to remove the pickup (See Fig. 13-1)
1. Remove the screw (A1) x 2 pcs., to remove the shaft (A2)
x 1 pc.
2. Remove the stop washer (A3) x 1 pc., to remove the gear
(A4) x1 pc.
3. Remove the pickup.
Note:
After disconnecting the optical pickup connector wrap the
front end of connector in the conductive aluminium foil so as
to prevent electrostatic damage of optical pickup.
CD MECHANISM SECTION
Perform steps 1,to 7 and 12 of the disassembly method to
remove the CD mechanism.
How to remove the CD loading motor
(See Fig. 13-2)
1. Remove the belt (B1) x 1 pc.
2. Remove the screw (B2) x 2 pcs.
3. Remove the loading motor.
Note:
After disconnecting the optical pickup connector wrap the
front end of connector in the conductive aluminium foil so as
to prevent electrostatic damage of optical pickup.
Figure 13-2
( A1 ) x2
2.6 x 6 mm
Stop Wassher
( A3 ) x1
CD Mechanism
Gear
( A4 ) x1
Shaft
( A2 ) x1
Optical Pickup
(B2) x 2
Ø 2 x 4mm
CD Unit
Belt
(B1) x 1
Loading Motor
