– 3 –
MD-X5H/CP-X5H
(Tuner section)
Frequency range: FM; 87.5 - 108 MHz
AM; 522 - 1,620 kHz
Sensitivity: FM; 8.0 µV (75 ohms, unbalanced)
AM; 650 µV/m
(General)
Power source: AC 230 V, 50 Hz
Power consumption: 80 W
Output power: PMPO; 80 W (total)
MPO; 40 W (20 W+20 W) DIN 45 324
RMS; 25 W(12.5 W+ 12.5 W) DIN 45 324
Input terminals: Auxilialy (Analog); 2.0 V (30 kohms)
Auxilialy (Digital-1)
Auxilialy (Digital-2)
Phono; 2.5 mV (10 kohm)
Output terminals: Headphones; 16-50 ohms
(recommended; 32 ohms)
Speakers; 6 ohms
Line out (Analog); 2.0 V (47 kohm)
Dimensions: Width; 150 mm (5-15/16")
Height; 241 mm (9-1/2")
Depth; 307 mm (12-1/8")
Weight: 4.3 kg (9.5 lbs.)
Speaker section
Type: 2-way 120 mm (4-3/4") woofer and
50 mm (2") tweeter type
Maximum input power: 25 W
Rated input power: 12.5 W
Impedance: 6 ohms
Dimensions: Width; 146 mm (5-3/4")
Height; 241 mm (9-1/2")
Depth; 229 mm (9-1/8")
Weight: 2.2 kg (4.9 lbs. )/each
Main unit section
(MiniDisc recorder section)
Type: MiniDisc recorder
Signal readout: Non-contact, 3-beam semi-conductor
laser pick-up
Audio channel: Stereo; 2 channel
Monaural; 1 channel (long-time
recording mode)
Frequency response: 20 - 20,000 Hz
Rotational speed: 400 - 900 rpm CLV, Approx.
Quantization: 16-bit linear
Filter: 8-times oversampling digital filter
Error correction: ACIRC (Advanced Cross Interleave
Reed-solomon Code)
Coding: ATRAC (Adaptive Tranceformed
Acoustic Coding)
Recording Method: Magnetic modulation overwrite method
D/A converter: 1-bit
Sampling frequency: 44.1 kHz
Wow and flutter: Unmeasurable
(less than 0.001% W. peak)
Signal/noise ratio: 95 dB (1kHz)
Dynamic range: 90 dB (1kHz)
T.H.D at 1 kHz: 0.1%
(Compact disc player)
Type: Compact disc player
Signal readout: Non-contact, 3-beam semi-conductor
laser pickup
Rotational speed: 200 - 500 rpm CLV, Approx.
Error correction: CIRC (Cross Interleave Reed-
Solomon Code)
Quantization: 16-bit linear
D/A converter: 1-bit
Filter: 4-times oversampling digital filter
Frequency response: 20 - 20,000 Hz
Signal/noise ratio: 95 dB (1 kHz)
Dynamic range: 90 dB (1 kHz)
Wow and flutter: Unmeasurable
(less than 0.001% W. peak)
SPECIFICATIONS
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Specifications for this model are subject to change without
prior notice.
MD-X5H
CP-X5H

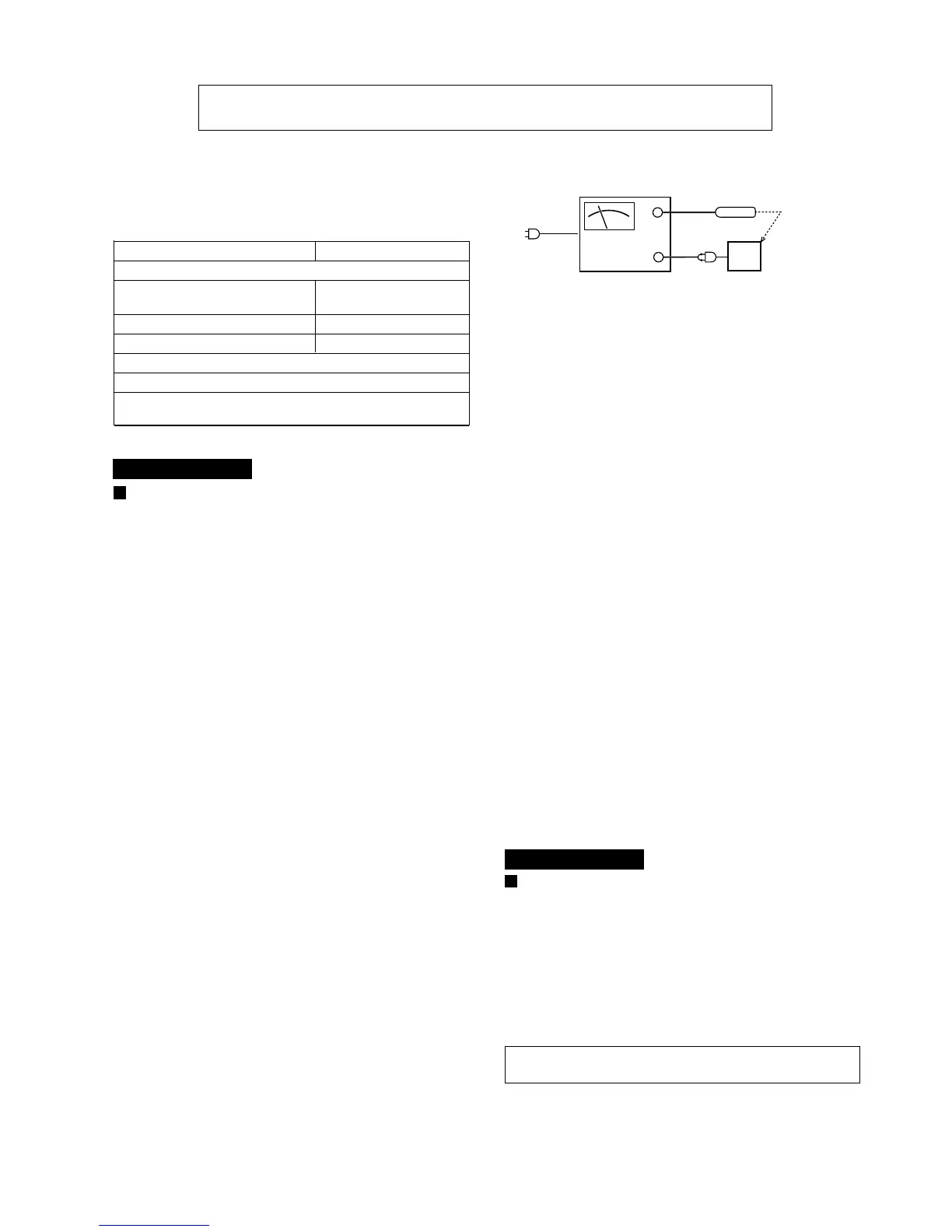

Before returning the unit to the customer after completion of a
repair or adjustment it is necessary for the following withstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current(Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzor sounds.
SHORT-CIRCUIT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND TERMINAL
OF PHONO TERMINAL
PROBE
AC
UNIT
WITHSTANDING
VOLTAGE TESTER
+
-
OUT
OF CHASSIS
SCREW
IMPORTANT SERVICE NOTES ( FOR UK ONLY)
