MD-X5H/CP-X5H
– 12 –

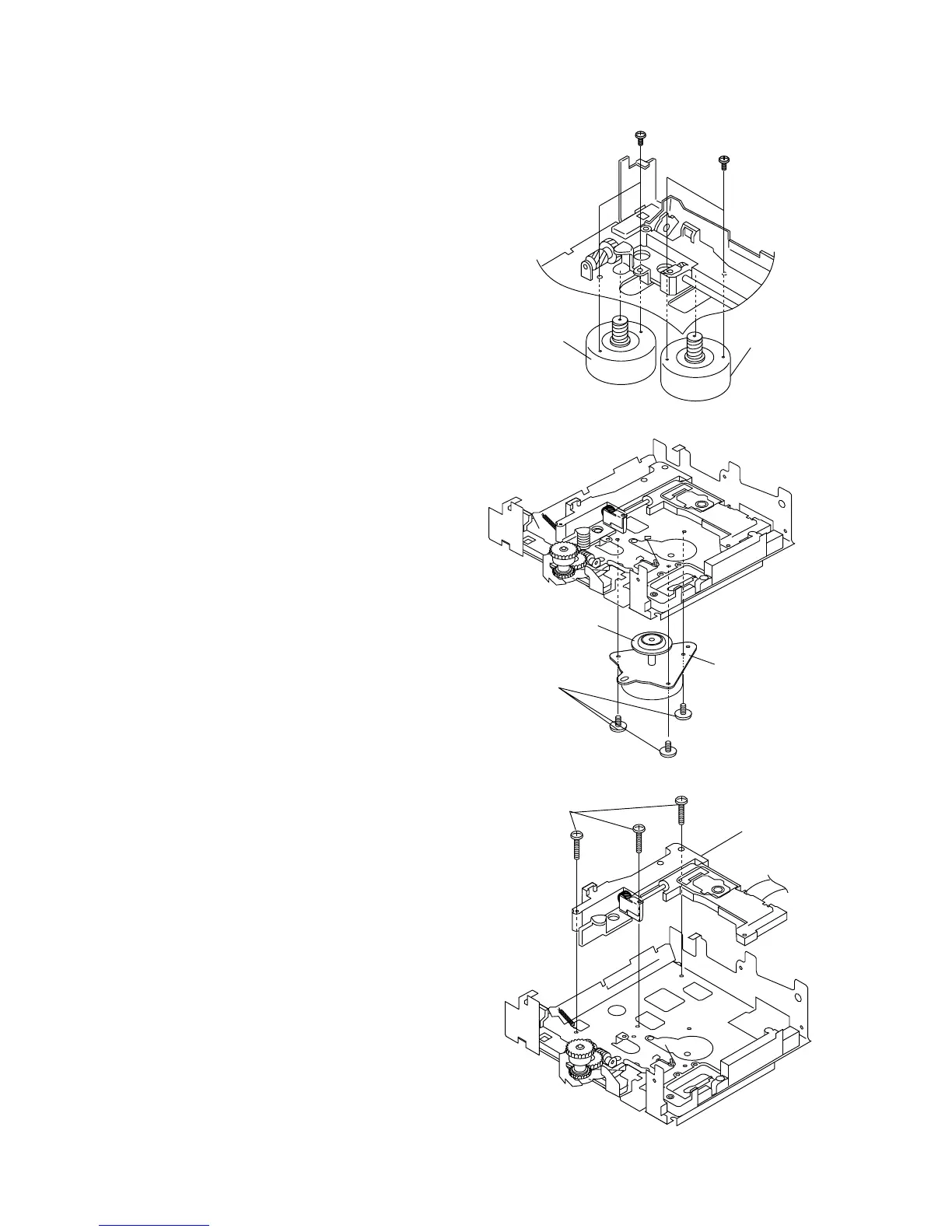

How to remove the sled motor/loading motor
(See Fig. 12-1)
1. Remove the screws (D1) x 1 pcs., and remove the sled
motor/loading motor.
Caution:
Be careful so that the gear is not damaged.
(The damaged gear emits noise during searching.)
Figure 12-1
Figure 12-2
Figure 12-3
How to remove the spindle motor
(See Fig. 12-2)
1. Remove the screws (E1) x 3 pcs., and remove the spidle
motor.
Caution:
Be careful so that the turntable is not damaged.
How to remove the optical pickup
(See Fig. 12-3)
1. Remove the screws (F1) x 3 pcs.
Caution:
Be careful so that the gear is not damaged.
(The damaged gear emits noise during searching.)
Sled Motor
Loading
Motor
(D1)x2
Ø1.7x2mm
(D1)x2
Ø1.7x2mm
Spindle Motor
Turntable
(E1)x3
Ø1.7x2.5mm
Optical Pickup
(F1)x3
Ø1.7x9.5mm
To Next Page
