Sharp MX-2300 G

MX-2300/2700 N/G MX-RPX1 4 – 5

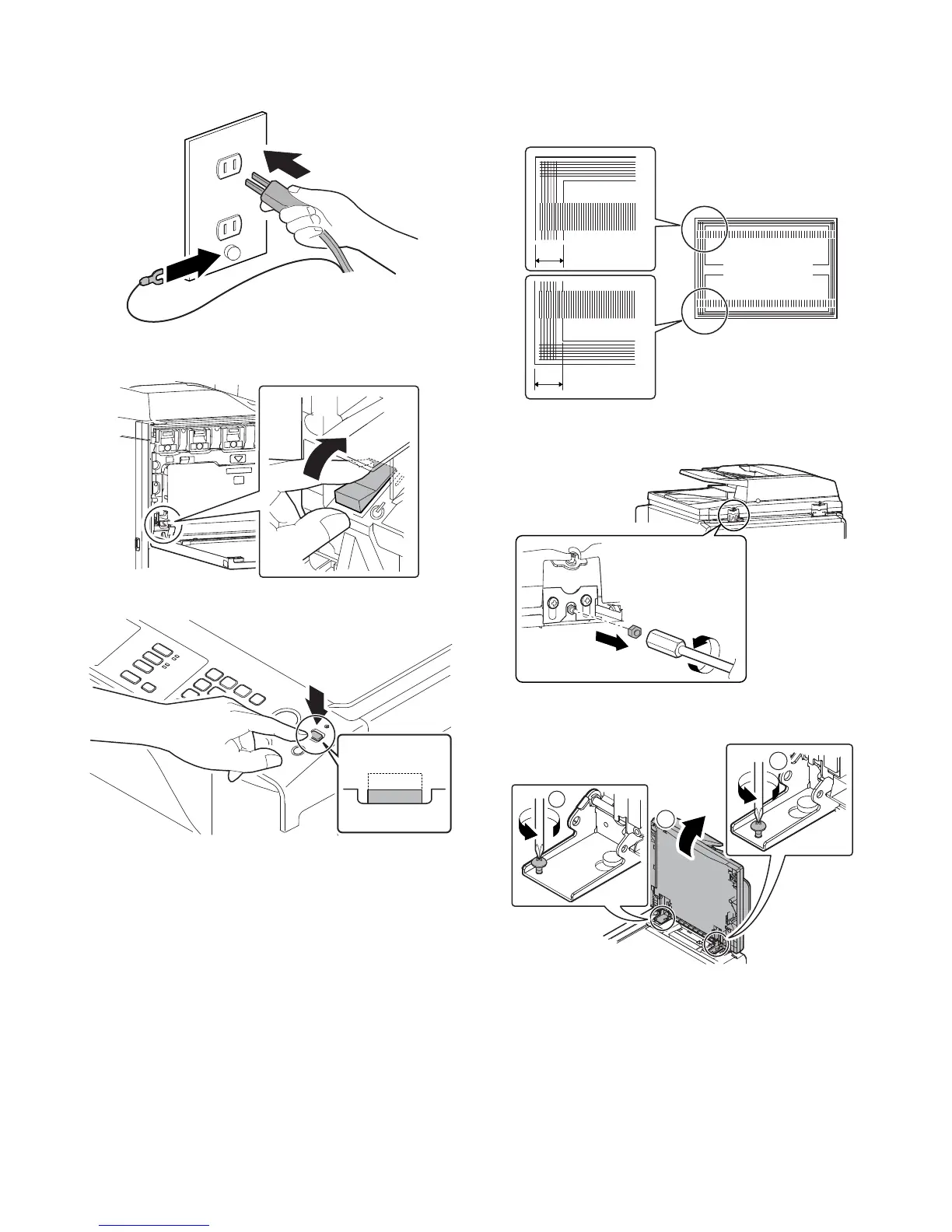

D. Turn on the power of the main unit.
1) Connect the earth cord, and insert the power plug of the main
unit into the power outlet.
2) Open the front cabinet.
Turn ON the power switch in the front cabinet of the main unit.
3) Turn ON the power switch on the operation panel.
E. RSPF diagonal adjustment
1) Set a test chart (A3) on the RSPF document tray, and make a
copy.
2) Measure (a) and (b) on the copied test chart. If (a) – (b) =
r1mm or more, perform the diagonal adjustment.
3) Remove the hex nut cover in the RSPF diagonal adjustment
screw section.
4) Raise the RSPF unit upright, and loosen the fixing screw of the
hinge.
ON
ON
ON
a
b
TEST CHART
A3 size
1
2
2
