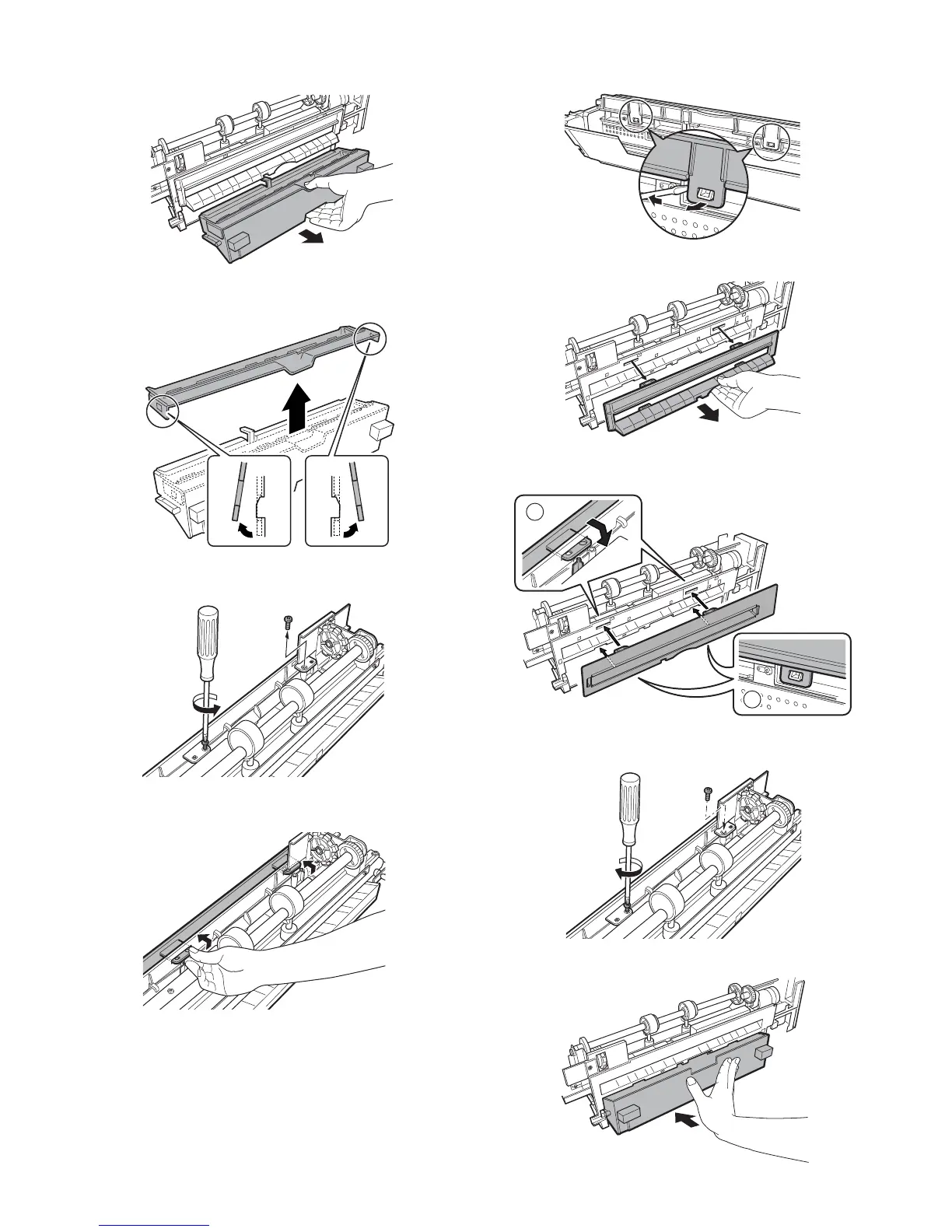

Replacement of the paper entry paper guide
1) Remove the dust box of the punch unit.
2) Remove the guide from the dust box.
The guide is not used in the MX-FNX2.
3) Remove two screws which are fixing the paper entry paper
guide.
4) Remove the hook (boss) on the upper side of the paper entry
paper guide.
5) Remove the hook (boss) on the upper side of the paper entry
paper guide with a screwdriver.
6) Remove the paper entry paper guide.
7) Install the paper entry paper guide exclusively used for the
MX-FNX2 packed with the saddle finisher.
8) Fix the incoming paper guide using the screws removed in
step 2.
9) Replace the dust box to the original position.
