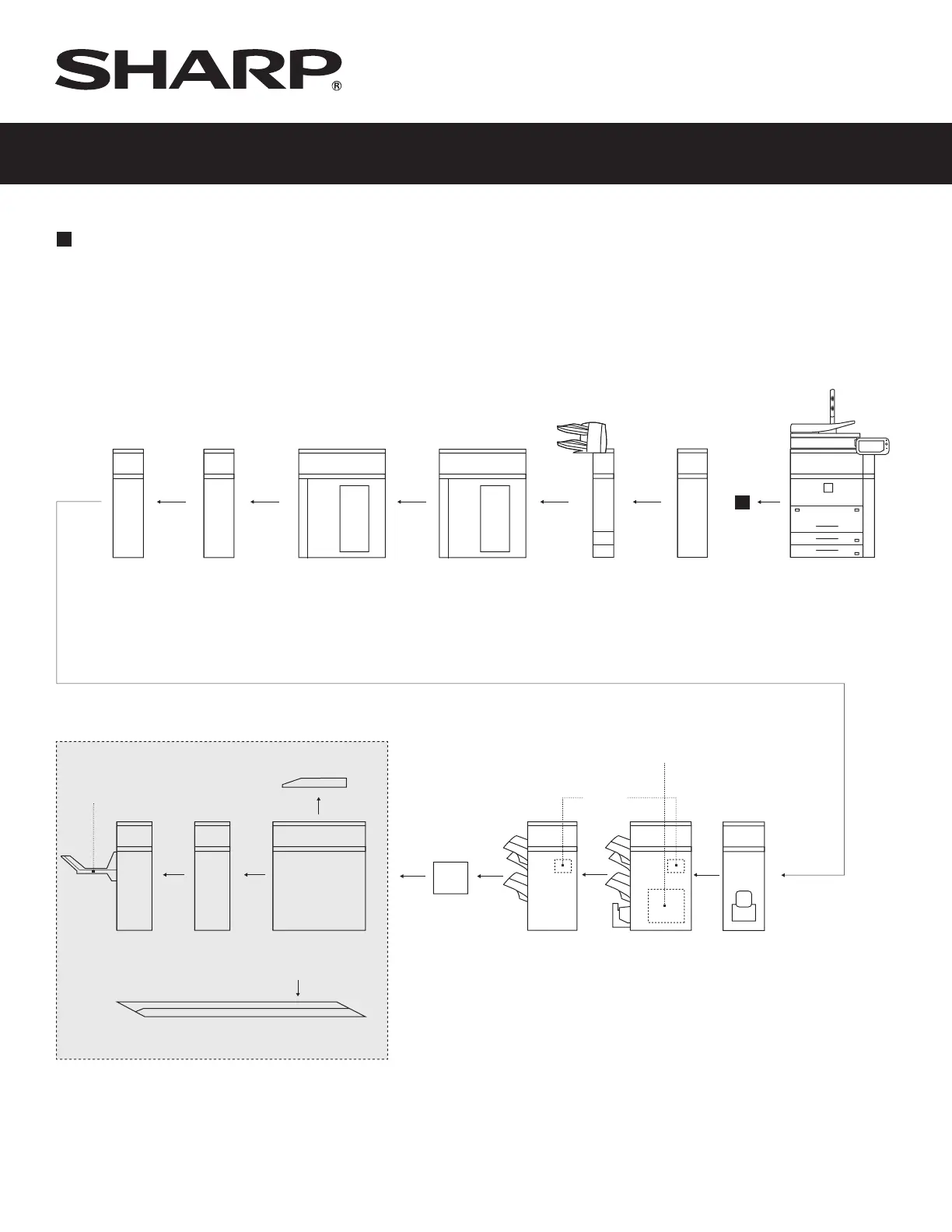

Configuration D: Advanced 100-sheet Staple Finishing
This configuration requires the MX-RB18 and an MX-FN21 or MX-FN22.
• The MX-CF11, both MX-ST10s, MX-GBCX2, MX-FD10, and Plockmatic Production Booklet Maker System are all optional.
• The MX-GBCX2 requires the MX-RB13.
• The MX-RB13 or MX-FD10 is required to connect a 100-sheet finisher and 2-Tray Inserter Unit directly.
• The MX-FN21 cannot be used with the MX-FN22.
• The MX-BM50 requires the MX-FN21.
• The MX-FD50 must be connected to the MX-TM50.
• The MX-SL10 Status Indicator can be added to any configuration.
MX-ST10
High Capacity
Stacker
MX-CF11
2-Tray
Inserter Unit
MX-RB18
Curl Correction
Unit
andand/orand
and/or
and/orand/or
MX-FD10
Multi-Folding
Unit
(continued)
MX-SL10
Status Indicator
(optional)
and
MX-FN22
Saddle Stitch
Finisher 4K
(100-sheet staple)
MX-FN21
Finisher 4K
(100-sheet staple)
MX-PCB50
andand
or
MX-TM10
Trimming Unit
Plockmatic
Interface Kit
MX-PN13B
3-Hole
Punch Unit
MX-BM50
Booklet Maker
MX-CF50
Cover Feeder
Exit Tray Included
with MX-BM50
MX-TM50
Face Trimmer
Module
MX-XB50
Rail Unit (recommended)
MX-FD50
Square Fold
Module
andand
and
and
Plockmatic Production Booklet Maker System
Step 2: chooSe finiShing configuration (continued)
mX-m904/m1054/m1204 configuration chart
