12
BEFORE USING THE MACHINE

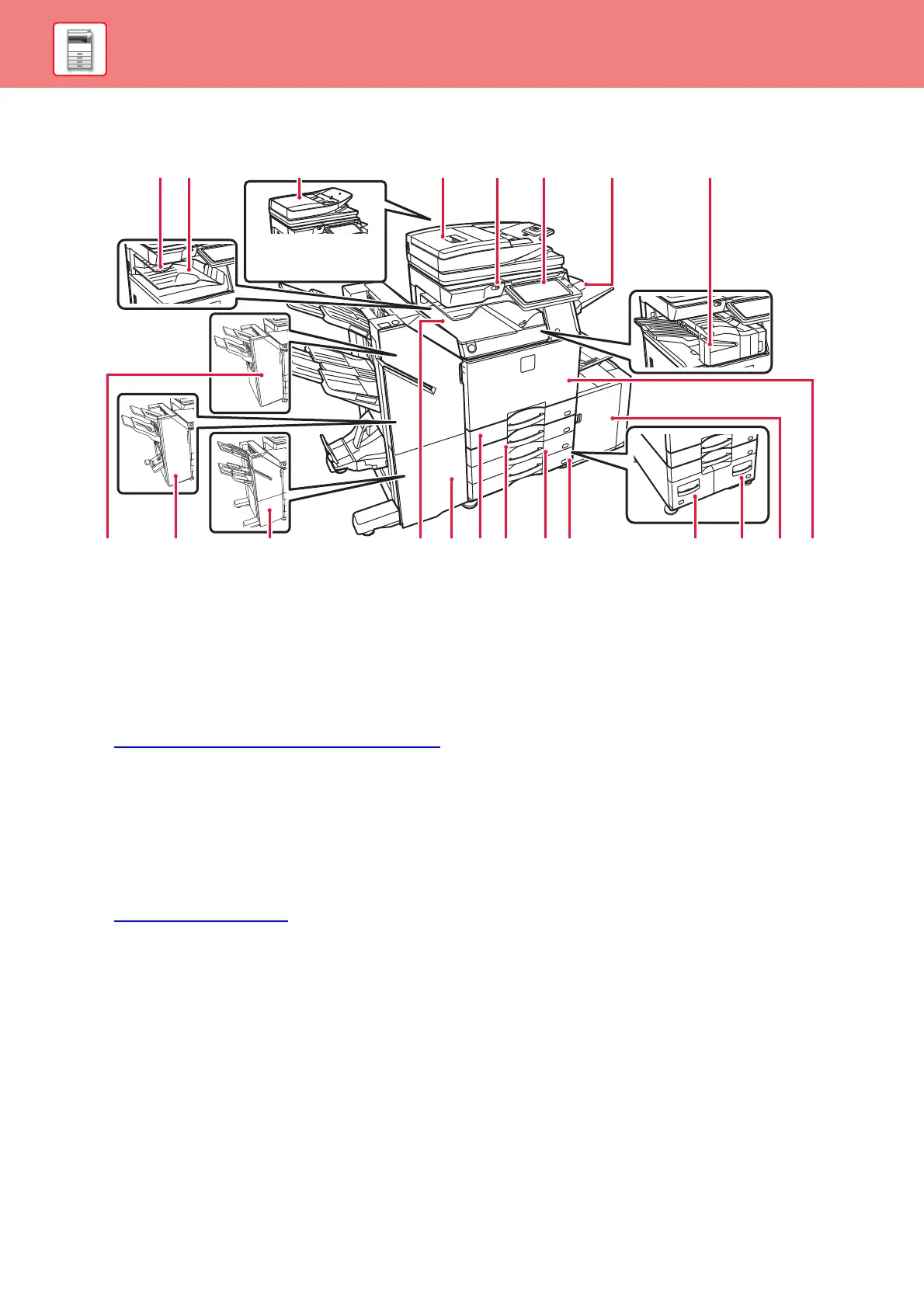

PART NAMES AND FUNCTIONS
(1) Job separator (upper tray)
*
Received faxes and printed papers are delivered to this tray.
You can also output jobs to the job separator (center tray) when
a relay unit is installed.
(2) Output tray
*
Output is delivered to this tray.
(3) Automatic document feeder
It automatically feeds and scans multiple originals. 2-sided
originals can be automatically scanned. For the
MX-3071/MX-3571/MX-4071, both sides of 2-sided originals can
be automatically scanned at one time.
►
USING THE AUTOMATIC DOCUMENT FEEDER (page 18)
(4) USB port (A type)
This is used to connect a USB device such as a USB memory
device to the machine.
Supports USB 2.0 (Hi-Speed).
(5) Operation panel
This panel hosts the [Power] button, [Power Save]
button/indicator, error indicator, [Home Screen] key, main power
indicator, data notification indicator, communication indicator,
and touch panel.
Use the touch panel to operate each of these functions.
► OPERATION PANEL (page 15)
(6) Exit tray unit (right tray)
*
Set so that paper is output into this tray as required.
(7) Inner finisher
*
This staples paper. A punch module can also be installed to
punch holes in output paper.
You can also perform stapling manually.
(8) Finisher
*
This staples paper. A punch module can also be installed to
punch holes in output paper.
(9) Saddle Stitch Finisher
*
This staples and folds paper. A punch module can also be
installed to punch holes in output paper.
(10) Finisher (large stacker)*
This staples paper. A punch module can also be installed to
punch holes in output paper.
You can also perform stapling manually.
(11) Paper pass unit
*
Relay between the machine and the finisher or saddle stitch finisher.
(12) Saddle Stitch Finisher (large stacker)*
This staples and folds paper. A punch module can also be
installed to punch holes in output paper.
You can also perform stapling manually.
(13) Tray 1
Store paper in this tray. A maximum of 550 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(14)
Tray 2 (when a low stand/550 sheet paper drawer or
stand/550/2x550/3x550/550&2100 sheet paper drawer is installed)
*
Store paper in this tray. A maximum of 550 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(15) Tray 3 (when a stand/2x550/3x550 sheet paper drawer is
installed)
*
Store paper in this tray. A maximum of 550 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(16) Tray 4 (when a stand/3x550 sheet paper drawer is installed)
*
Store paper in this tray. A maximum of 550 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(17) Tray 3 (when a stand/550&2100 sheet paper drawer is
installed)
*
Store paper in this tray. A maximum of 1200 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(18) Tray 4 (when a stand/550&2100 sheet paper drawer is
installed)
*
Store paper in this tray. A maximum of 900 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(19) Tray 5 (when a large capacity tray is installed)*
Store paper in this tray. A maximum of 3000 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(20) Front cover
Open this cover to switch the main power switch to "On" or "Off"
to replace a toner cartridge.
* Peripheral device. For more information, see the User's Manual.
(2) (3)(3) (4) (5)
(12)(11)(10)(9)(8) (13)(14) (15)(16) (17)
(1)
(18) (19) (20)
(6) (7)
MX-2651/MX-3051/
MX-3551/MX-4051
