SADDLE STITCH FINISHER MAINTENANCE
When the staple cartridge runs out of staples, a message will appear in the operation panel. Follow the procedure below
to replace the staple cartridge.

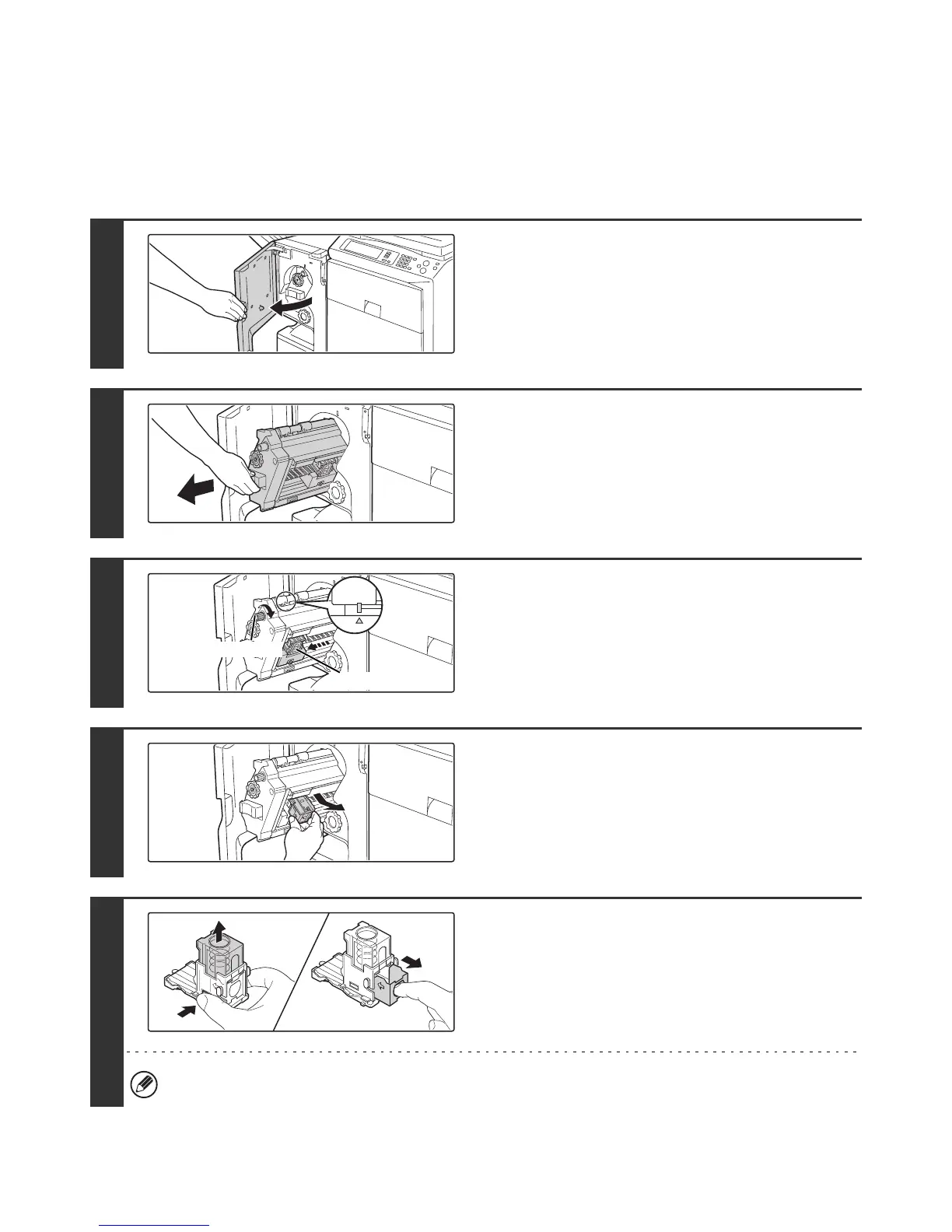

Replacing the staple cartridge
1
Open the front cover.
2
Pull out the stapler section.
Pull out until the stapler section until it stops.
3
Turn roller rotating knob A in the
direction of the arrow to move the staple
unit out to the front.
Turn the roller rotating knob as shown until the triangle mark is
aligned with the indicator.
4
Remove the empty staple case.
5
Remove the empty staple cartridge.
Press the lock button to release the staple case cover and then
remove the staple cartridge.
When staples remain, the staple cartridge cannot be removed.
Roller rotating knob A
Staple unit
To Next Page
