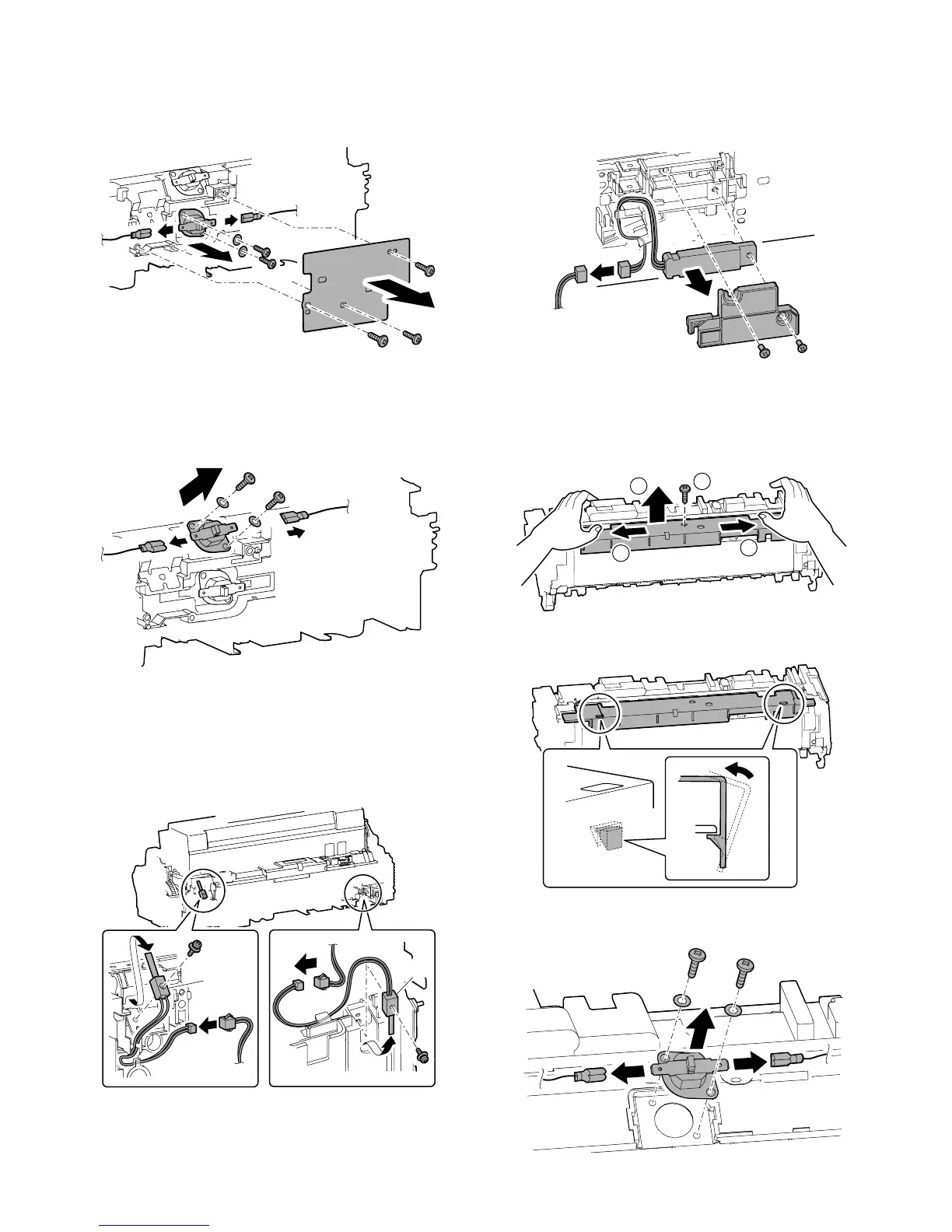

MX3500N FUSING SECTION N – 4
a. Upper thermostat main
1) Remove the fusing unit.
2) Remove the screws and remove the fusing cover. Disconnect
the connector, and remove the screws, the washer, and then
remove the upper thermostat main.
b. Upper thermostat sub
1) Remove the fusing unit.
2) Remove the web unit.
3) Disconnect the connector, and remove the screws, the washer,
and then remove the upper thermostat sub.
c. Upper thermistor side
d. Upper thermistor sub
1) Remove the fusing unit.
2) Disconnect the connector, and remove the screws, and
remove the upper thermistor side (A), and the upper thermistor
sub (B).
e. Upper thermistor C (Non-contact)
1) Remove the fusing unit.
2) Remove the screws, and remove the cover. Disconnect the
connector, and remove the screws, then remove the upper
thermistor C (Non-contact).
f. Lower thermostat
1) Remove the fusing unit.
2) Remove the screw. Pull the fusing lower cover to the front side
and the rear side to remove the lower cover as shown in the
figure below.
* When installing, engage the pawl of the fusing lower cover
first, then assemble the fusing lower cover.
3) Remove the connector, the screw, and the washer. Remove
the lower thermostat.
B
A
1
2
2
3
To Next Page
