MX3500N DRIVE SECTION P – 5

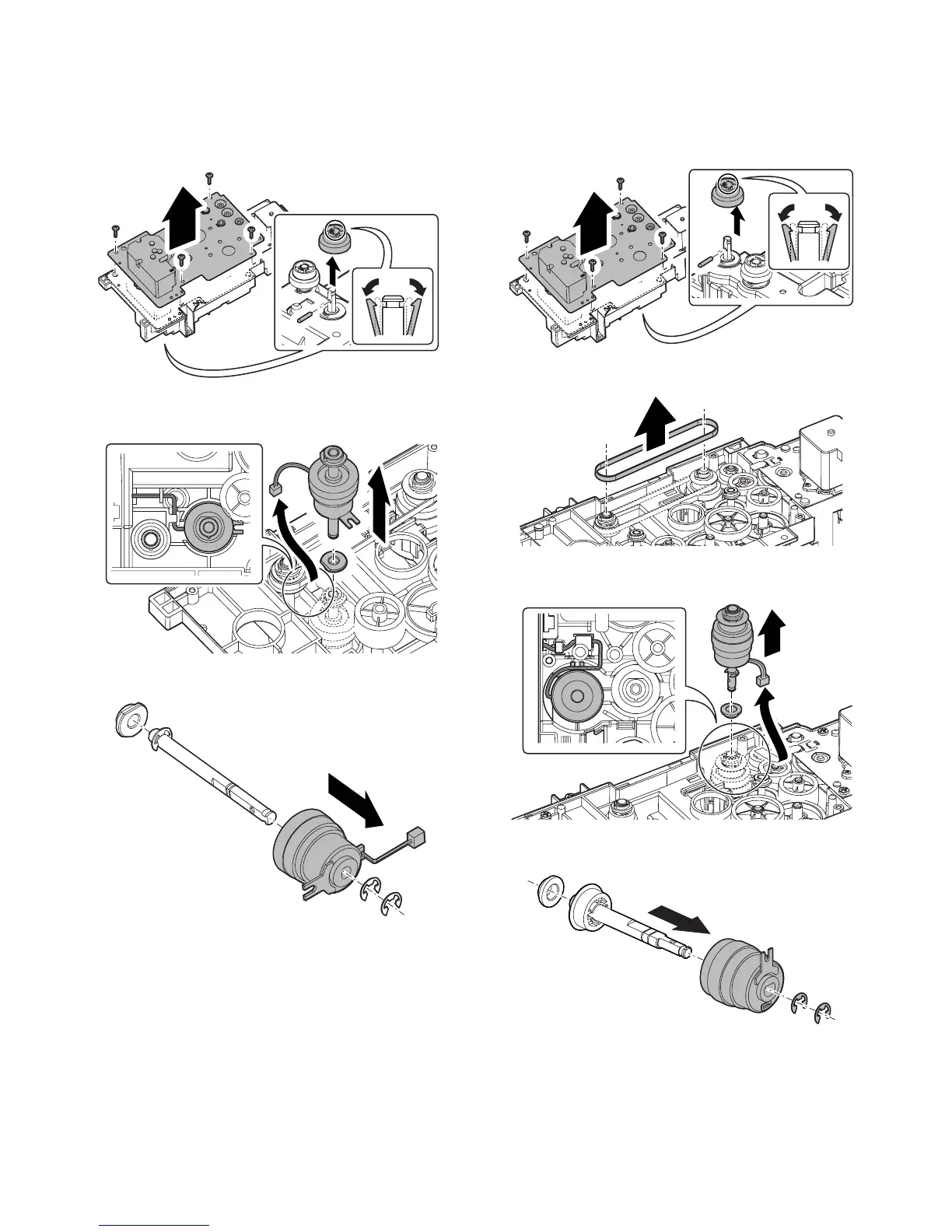

e. Paper feed clutch (Paper feed tray 2)
1) Remove the paper tray lift-up motor unit.
2) Remove the paper feed motor.
3) Remove the paper feed drive unit.
4) Remove the connection gear 21T. Remove the screws to
detach the drive frame upper unit.
5) Disconnect the connector, and remove the paper feed clutch
unit.
6) Remove the E-ring, and remove the paper feed clutch.
f. Tray vertical transport clutch
1) Remove the paper tray lift-up motor unit.
2) Remove the paper feed motor.
3) Remove the paper feed drive unit.
4) Remove the connection gear 21T. Remove the screws to
detach the drive frame upper unit.
5) Remove the belt.
6) Remove the connector, then remove the tray vertical transfer
clutch unit.
7) Remove the E-ring, then remove the tray vertical transfer
clutch.
