High Voltage Settings

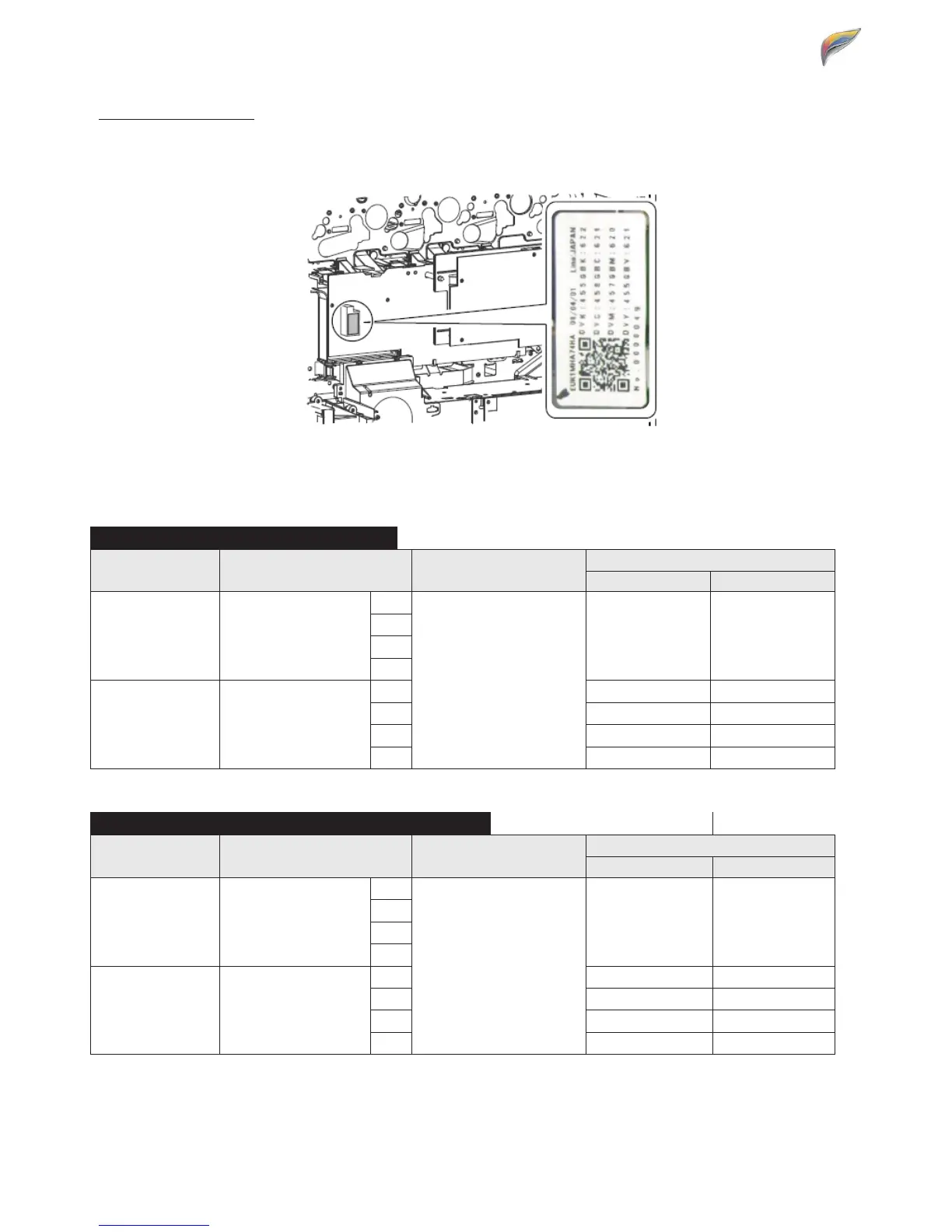

Note: The adjustment value of each colour mode is specified on the information label attached to the
MC/DV High Voltage Power PWB.
Using Simulation 8-01 (DV Bias Setting) & Sim 8-02 (MC Grid Bias Setting), enter the values
specified, especially after replacing the PCU PWB, EEPROM or following U2 trouble.
DV BIAS VOLTAGE – SIMULATION 08-01
Item Mode Adjustment Range
Actual Voltage
MX-4141N
MX-5141N
Middle Speed
DV Bias Voltage
K
0-600
-450 +/- 5V
-450 +/- 5V
C
M
Y
Low Speed
DV Bias Voltage
K
-450 +/- 5V
-450 +/- 5V
C
-430 +/- 5V
-430 +/- 5V
M
-430 +/- 5V
-430 +/- 5V
Y
-430 +/- 5V
-430 +/- 5V
MAIN CHARGE GRID VOLTAGE – SIMULATION 08-02
Item Mode Adjustment Range
Actual Voltage
MX-4141N
MX-5141N
Middle Speed
MC Grid Voltage
K
150-850
-630V +/- 5V
-640V +/-
5V
C
M
Y
Low Speed
MC Grid Voltage
K
-620V +/- 5V
-620V +/- 5V
C
-600V +/- 5V
-600V +/- 5V
M
-600V +/- 5V
-600V +/- 5V
Y
-600V +/- 5V
-600V +/- 5V
