LOADING PAPER

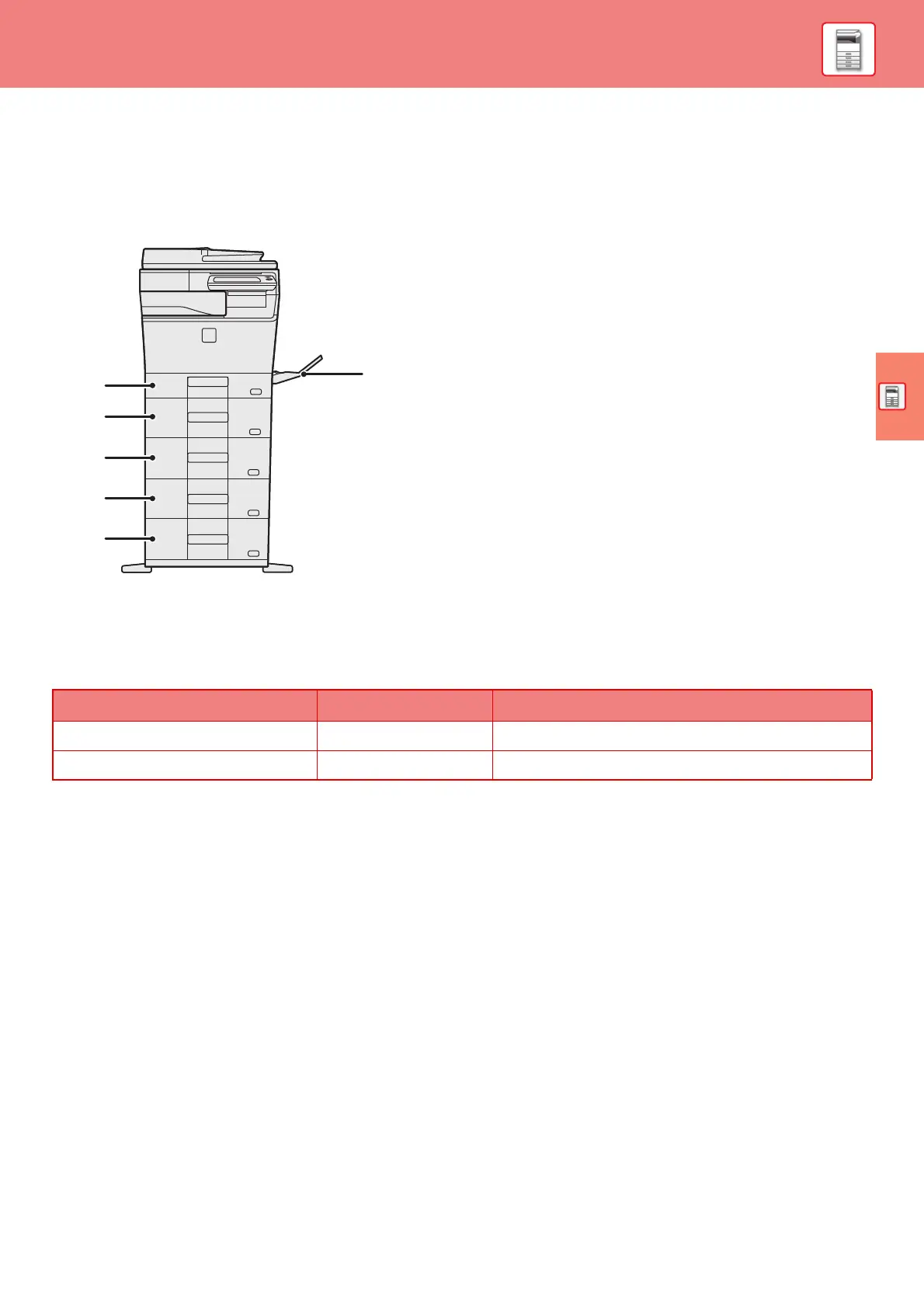

NAMES AND LOCATIONS OF TRAYS
The names of the trays are as follows.
Setting orientation of the print side
The setting orientation varies for the print side of paper, depending on the tray used. For "Letter Head" and
"Pre-Printed", set the paper in the reverse orientation.
Place with the print side facing the direction indicated below.
Tray In normal status With letter head or pre-printed paper set
Trays 1 - 5 Facing up Facing down
Bypass tray Facing down Facing up
(1) Tray 1
(2) Tray 2 (when a 600-sheet paper feed unit is installed)
(3) Tray 3 (when two 600-sheet paper feed units are installed)
(4) Tray 4 (when three 600-sheet paper feed units are installed)
(5) Tray 5 (when four 600-sheet paper feed units are installed)
(6) Bypass tray
To Next Page
