5028
7

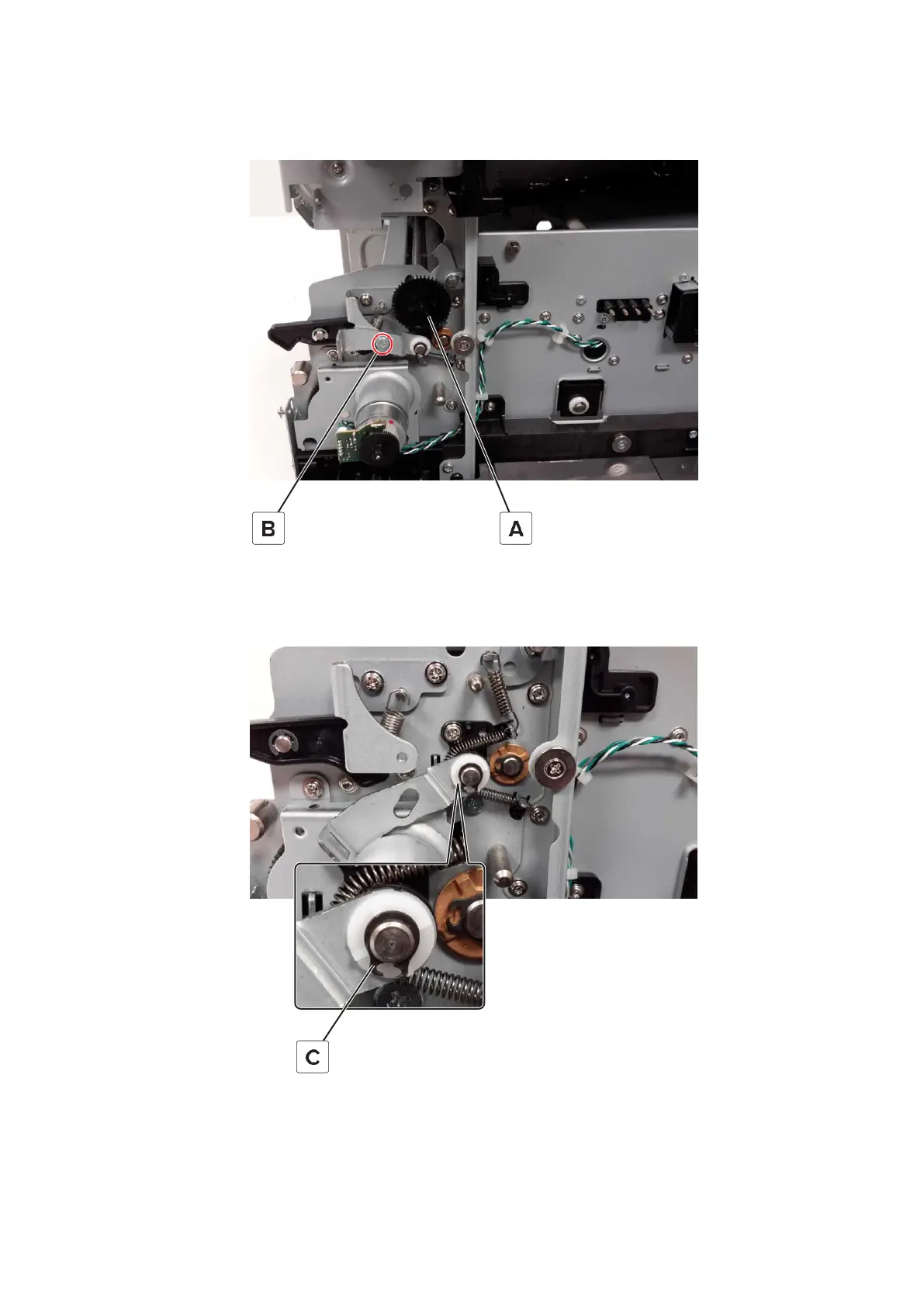

On the right side of the printer, remove the gear (A), and then remove the screw (B).
Remove the C ‑ clip (C), and then remove the spacer.
8
Warning—Potential Damage:
damage.
Be careful not to over extend the clip when removing or installing to avoid
Parts removal
380
