5028
5

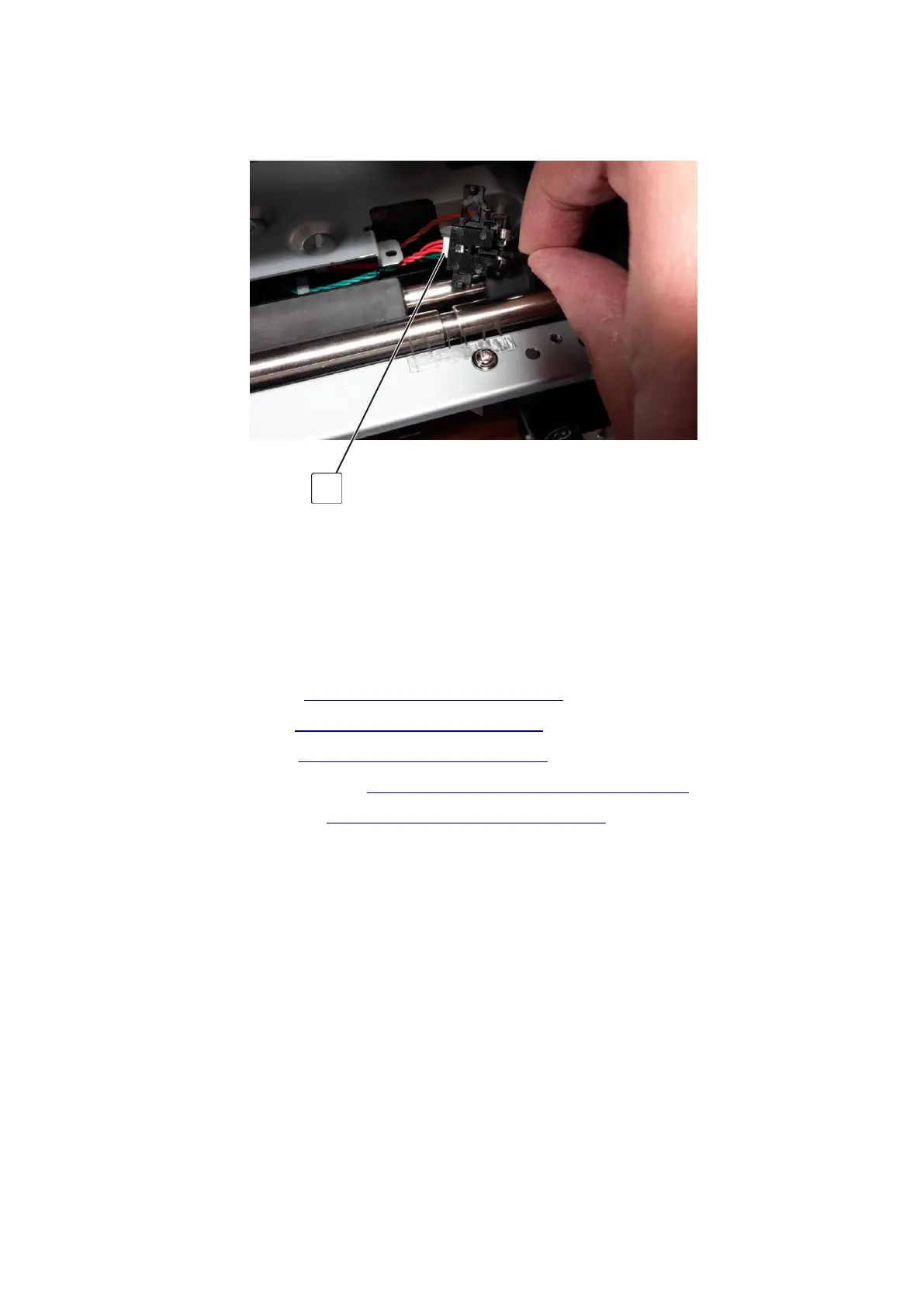

Disconnect the sensor cable (B), and then remove the sensor.
B
Deskew rollers removal
Note: There are two types of deskew rollers used on this printer. The solid rubber roll use C-clips to fasten
the deskew roller. Printers using the segmented rubber roller use E-clips to fasten the deskew roller. The
parts are not interchangeable. Use both rollers when replacing this part.
1
2
3
4
5
6
Open the front door.
Remove the right cover. See “Right cover removal” on page 309 .
Remove the left cover. See “Left cover removal” on page 308 .
Remove the LVPS cage. See “LVPS cage removal” on page 345 .
Remove the sensor (media type). See “Sensor (media type) removal” on page 377 .
Remove the sensor (input). See “Sensor (input) removal” on page 378 .
Parts removal
379
