5028
18

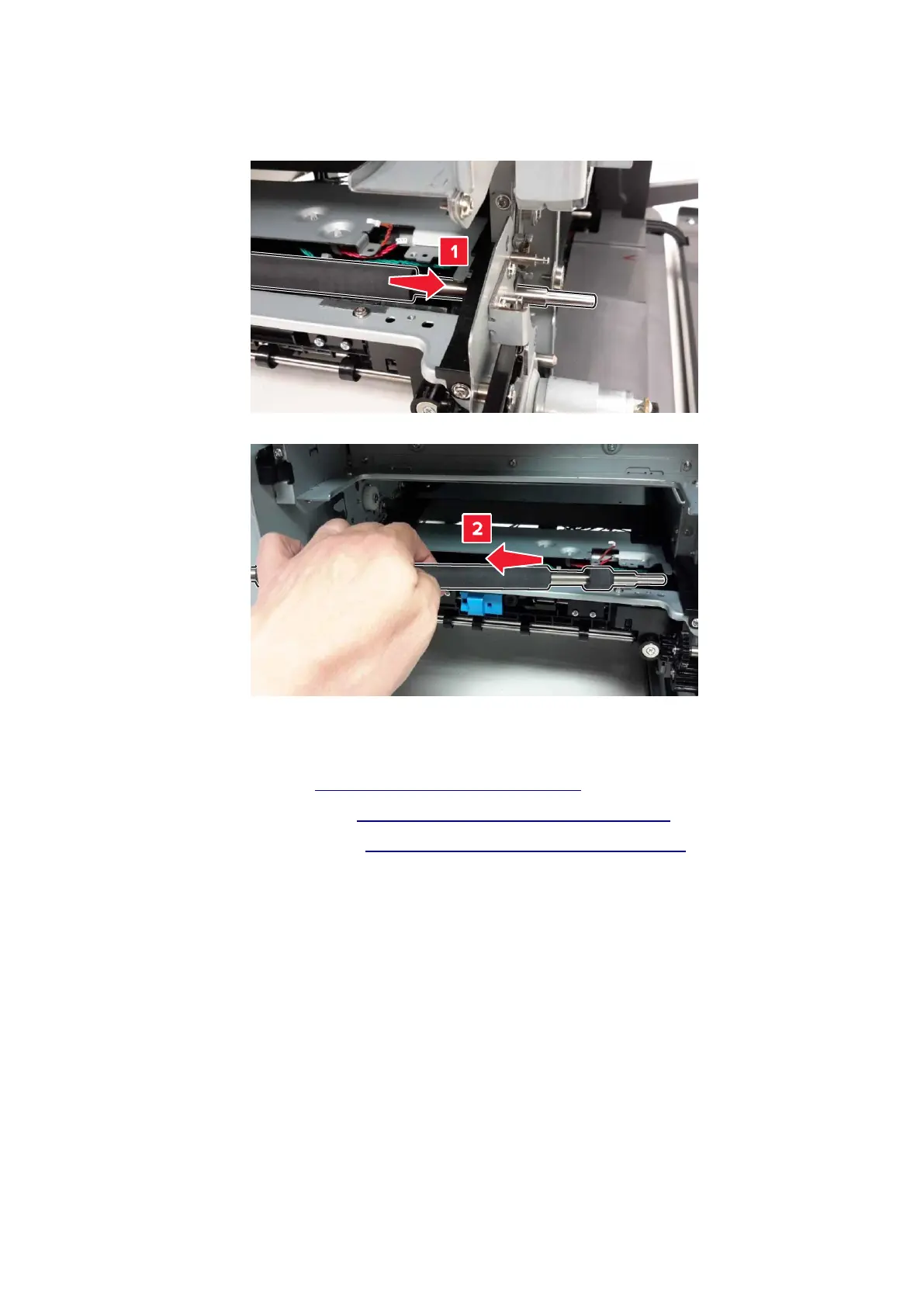

Slide the rear deskew roller to the right to remove.
Diverter removal
1
2
3
Remove the badge cover. See “Badge cover removal” on page 320 .
Remove the number pad cover. See “Number pad cover removal” on page 321 .
Remove the upper control panel. See “Upper control panel removal” on page 317 .
Parts removal
386
