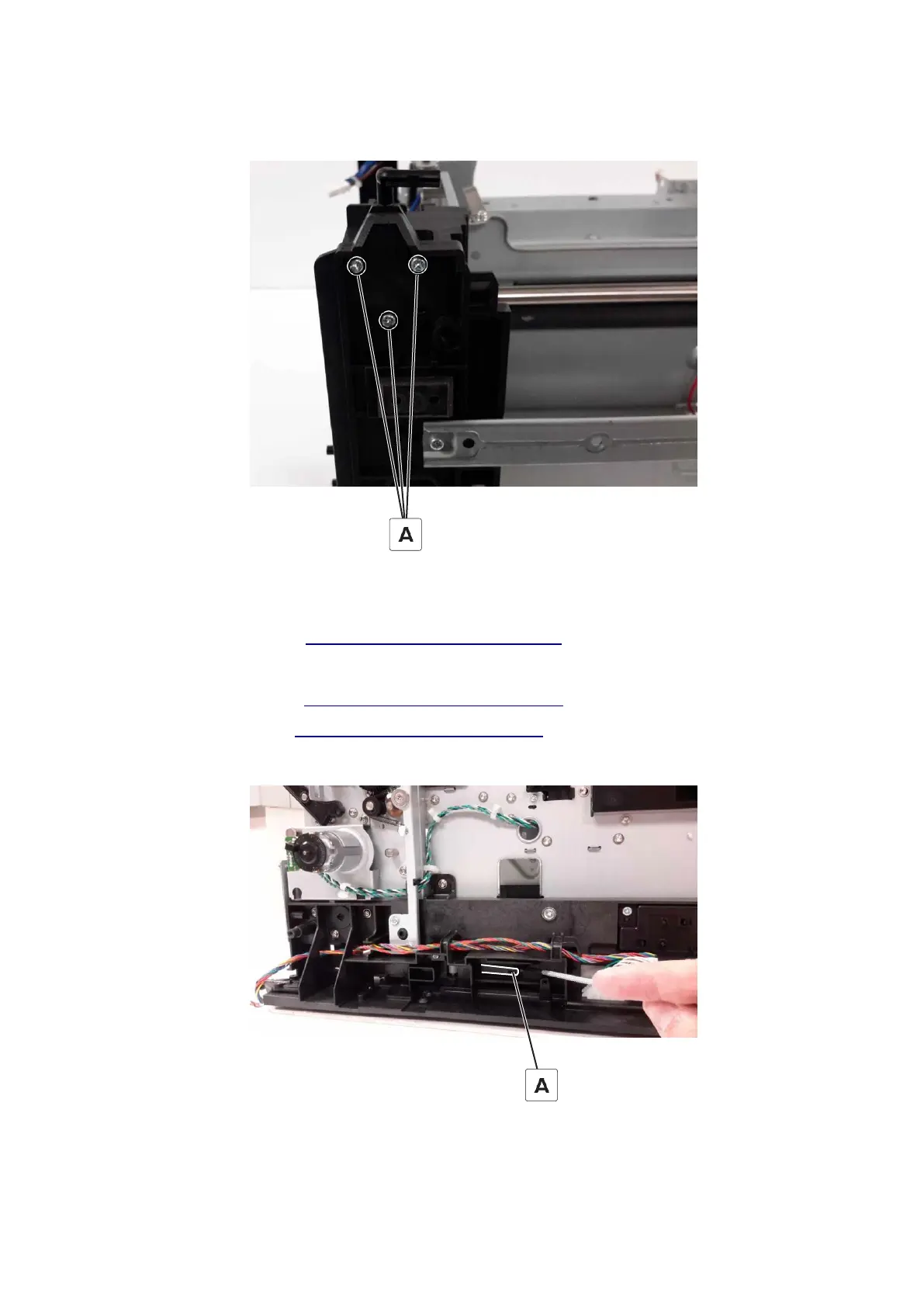

Remove the three screws (A) securing the hinge, and then remove the hinge.
Tray rail removal
1
2
3
4
5
Remove the motor cover. See “Motor cover removal” on page 310 .
Remove the waste toner bottle.
Remove the right cover. See “Right cover removal” on page 309 .
Remove the left cover. See “Left cover removal” on page 308 .
Pull the tab (A) on the rail.
