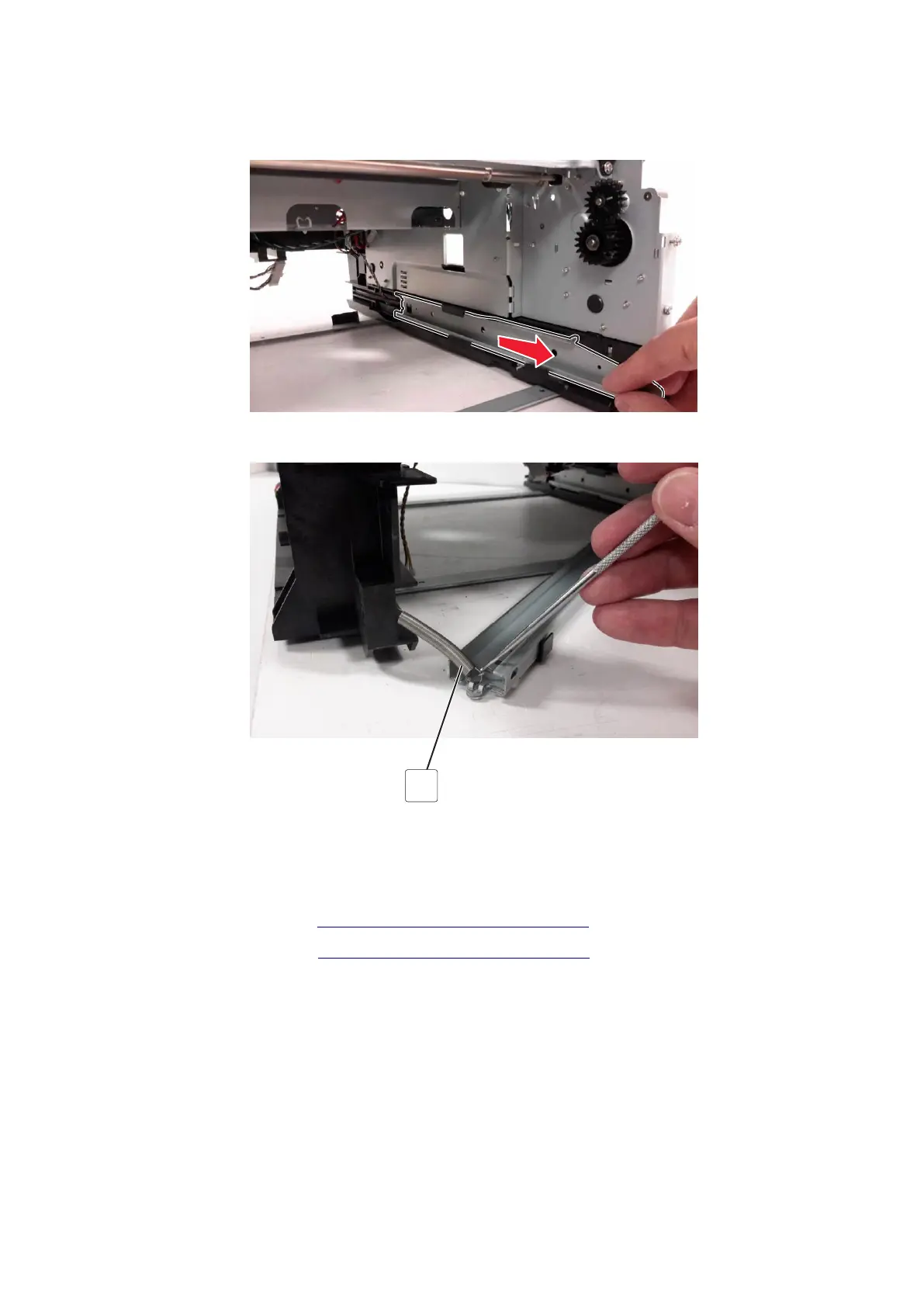

Hold the tab in place, and then slide the rail toward the front of the printer to remove.
7
Disconnect the spring (B) from the rail.
B
Aligner idler gears removal
1
2
3
Remove the imaging kit.
Remove the media feeder. See “Media feeder removal” on page 411 .
Remove the isolation unit. See “Isolation unit removal” on page 409 .
Parts removal
