MX-M1204 MX-M904/M1054/M1204 (MAIN UNIT) 2 – 3
2. Transit and delivery
A. Implements, facility, and manpower
A forklift is recommended for removing the machine from the ship-
ping carton.
If no forklift is available, Be sure to use the skid slope (DKIT-
0367FCZZ). Removing the machine by hand requires four or more
persons as the machine is heavy. Use care and safety precautions
when removing the machine from the shipping carton.
Transit of the machine must be made in a protected and secure
condition to the place of install.
Since the hard disk drive is built in the machine, refrain from vibra-
tions or shocks to the machine when in transit.
B. Delivery
Remove the packing materials prior to installation in the office envi-
ronment.
When delivering the machine, be sure to keep the separation pawl
fixing material attached. (If the machine is delivered without the fix-
ing material, the drum may be scratched.)
NOTE: For USA / CANADA
If the fusing performance is insufficient in a special environment
such as low temperature and low humidity, an environment that
heavy paper is mainly used and so on when 208V power supply is
used, please replace with 208V lamp (RLMPU0764FCPZ).
(Measurement method)
Measure the voltage between L and N of the figure above using a
digital multi meter.

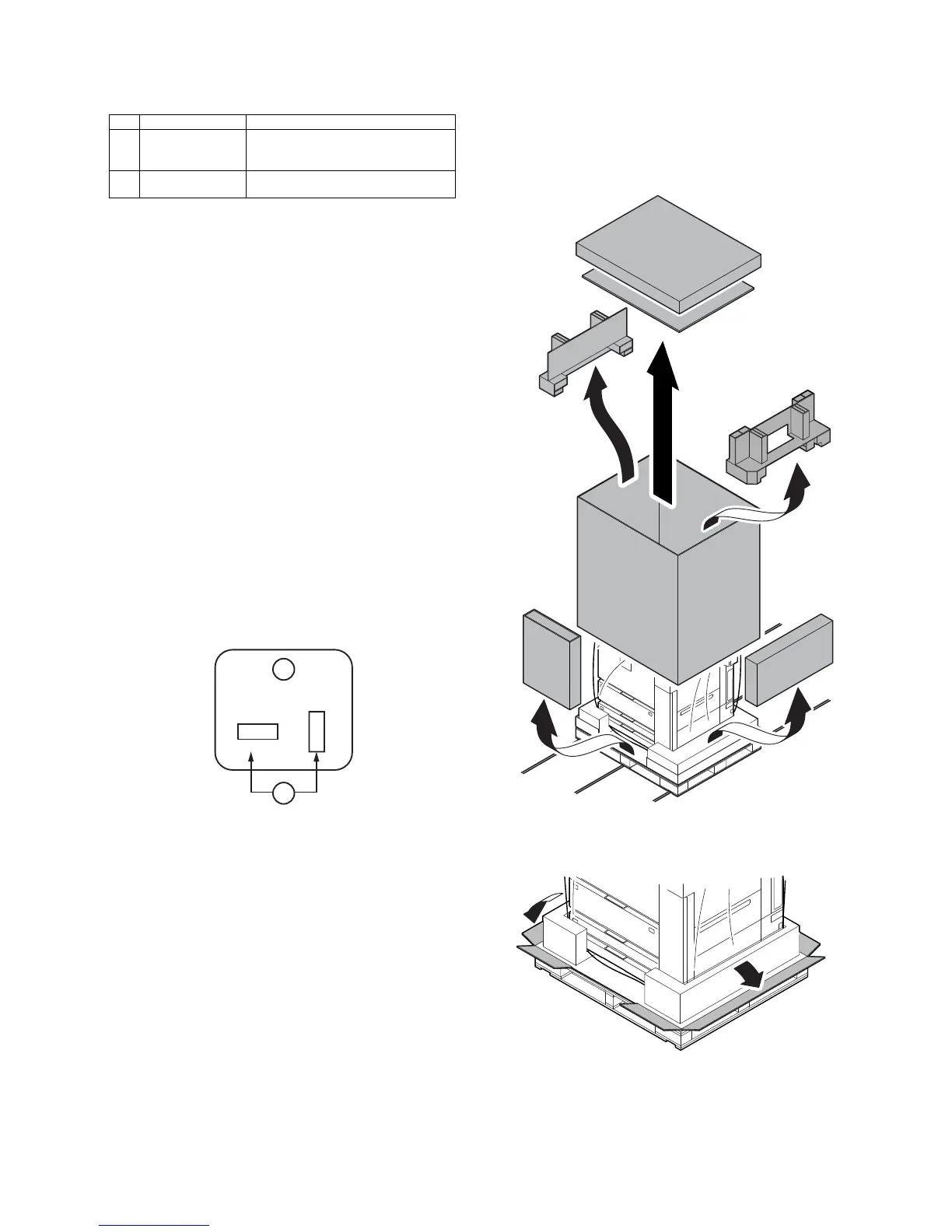

3. Unpacking
A. Pulling out the main unit
1) Remove the top case, the top cushion, the packing case, and
the box containing the operation panel, the operation panel
arm and parts for assembly.
2) Cut the four corners of the bottom case.
No Content Method
1 Implements, facility,
and manpower
Use a forklift. (If no forklift is available,
ensure manpower of four persons or more,
and use the skid slope (DKIT-0367FCZZ)).
2 Delivery Transit must be made in safely packed and
protected environment.
L
N
GND
V
Voltage reference points for wall outlet.
To Next Page
