MX-M232D (AR-SP10/AR-RP10) 4 - 1
[4] AR-SP10/AR-RP10

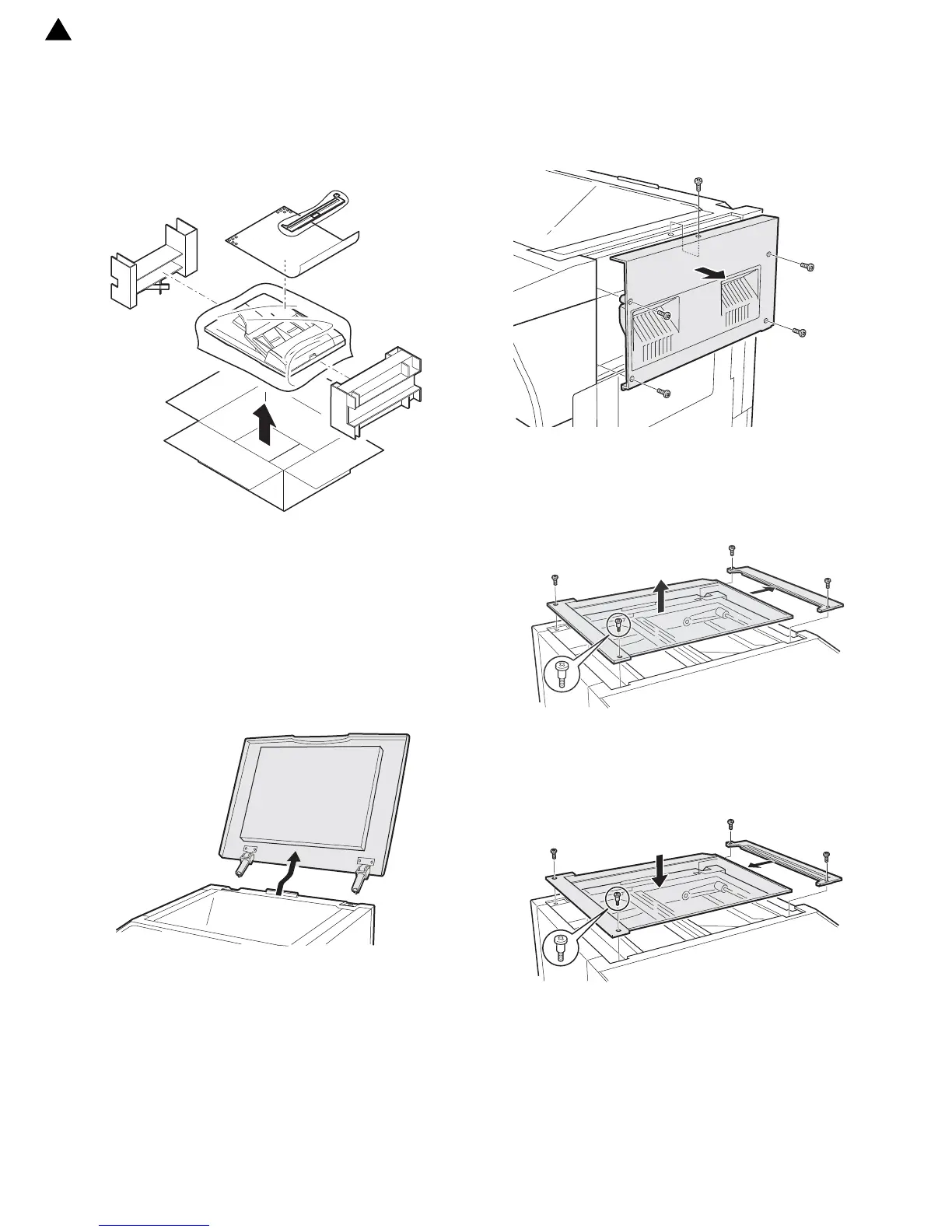

1. Unpacking
For unpacking, refer to the figure below.
2. Installation
Turn the main switch of the machine to the “OFF” position and then
remove the power plug of the machine from the outlet.
1) Remove the document cover.
Lift the document cover from the machine and tilt it to the rear side to
remove it.
2) Remove the right cabinet.
Remove the screws and remove the right cabinet.
3) Remove the document glass and the right document glass holder.
Remove the screws, remove the document glass from the machine,
and then remove the right document glass holder.
4) Attach the SPF glass holder.
Fit the SPF glass holder to the document glass.
Attach the document glass to the machine and fix it with the screws.
1
‘13/Nov
To Next Page
