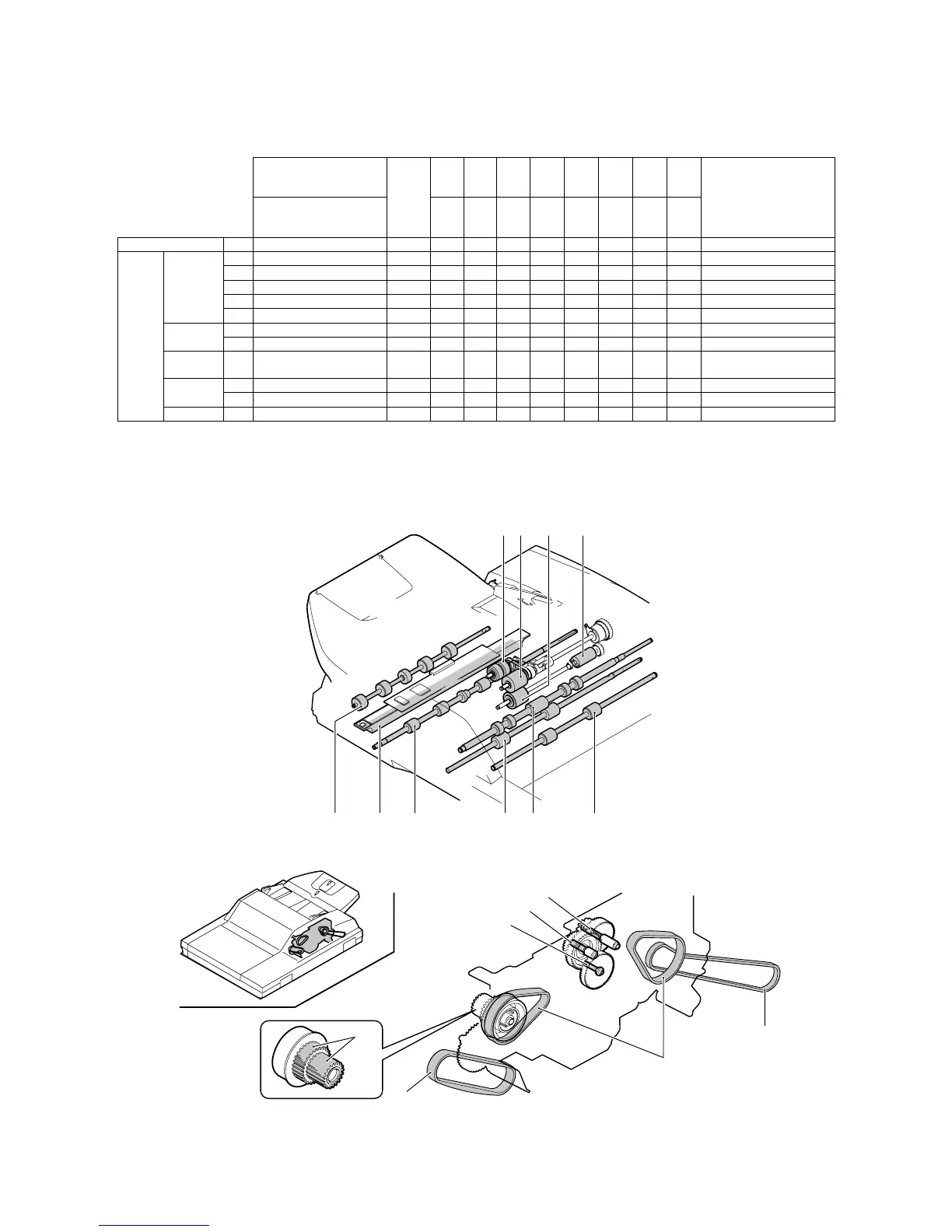

F. DSPF section
✕ : Check {: Clean ▲: Replace U: Adjust ✩: Lubricate : Shift position
(Clean, replace, or adjust as necessary.)
(Note 1) Replacement reference: For replacement, refer to each paper feed counter value.
• DSPF section: 100K or 1 year
• Torque limiter: 800K
55ppm (PM: 250K)
When
calling
250
K
500
K
750
K
1000
K
1250
K
1500
K
1750
K
2000
K
Remark/Refer to the
Parts Guide.
Block/Item No.
(Only the replacement
parts are described.)
62ppm/70ppm (PM: 300K)
300
K
600
K
900
K
1200
K
1500
K
1800
K
2100
K
2400
K
Unit name No. Part name
DSPF Paper feed 1 Pickup roller ✕ {{{{{{{{(Note 1)
2 Paper feed roller ✕ {{{{{{{{(Note 1)
3 Separation roller ✕ {{{{{{{{(Note 1)
4 Torque limiter ✕✕✕✕✕✕✕✕(Note 1)
5 Resist roller ✕ {{{{{{{{
Transport
section
6 Transport roller ✕ {{{{{{{{
7 Exposure section (CIS unit) ✕ {{{{{{{{
Paper exit
section
8 Paper exit roller ✕ {{{{{{{{
Drive
section
9 Gears (Grease) ✕ ✕✕✕✕✕✕✕✕UKOG-0299FCZZ
10 Belts ✕✕✕✕✕✕✕✕
Others 11 Sensors ✕✕✕✕✕✕✕✕Clean with air
