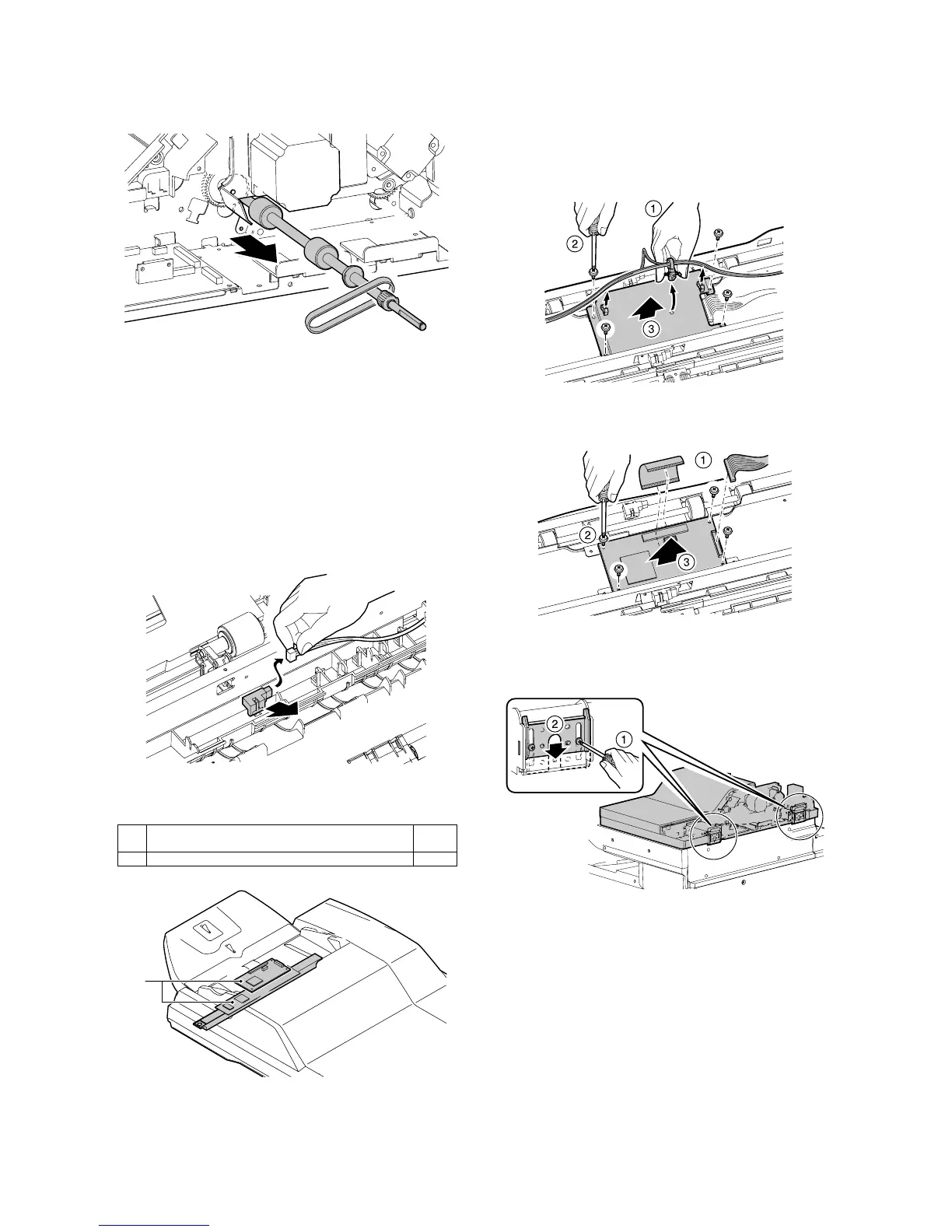

MX-M700N DSPF SECTION C – 14
11) Remove Transport roller 2 (Drive).
k. DSPF document paper pass detector 2
1) Remove the cabinet. (See “A-(1)-a. Cabinet”)
2) Remove the document feed tray unit.
(See “C-(1) Paper feed unit”)
3) Remove the No. 1 resist roller idle, the paper feed paper guide
lower unit, and the No. 1 resist roller drive.
(See “C-(2)-e. No. 1 resist roller (Drive)”)
4) Remove the transport roller 1 (Drive).
(See “C-(2)-j. Transport roller 1 (Drive)”.)
5) Disconnect the connector, and remove the DSPF document
paper pass detector 2.
D. CIS section
(1) CIS control PWB/CIS unit
1) Remove the cabinet. (See “A-(1)-a. Cabinet”)
2) Remove the document tray unit.
(See “B-(1) Document tray unit”)
3) Remove the harness. Remove the PWB cover.
4) Remove each cables, and remove the PWB.
5) Loosen the hinge screws to lower the two fittings.
No. Parts
Mainte
nance
(1) CIS control PWB/CIS unit ✕ {
(1)
