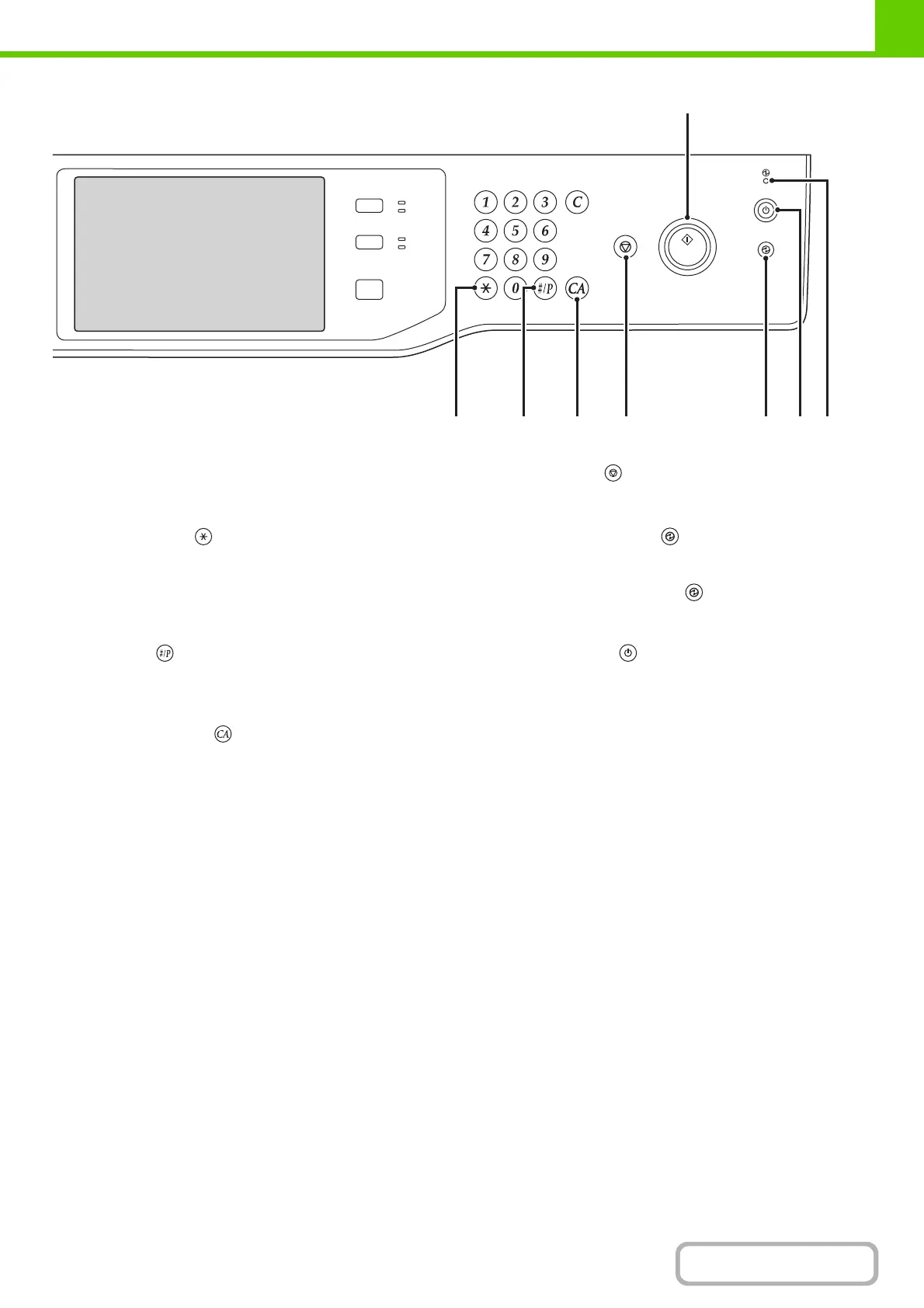

Sharp MX-M623N

MX-M753N AR-PN4 6 – 2
3) Disconnect the power plug of the main unit from the power out-
let.
B. Punch cover disassembly
1) Open the front upper door of the finisher.
Remove the punch cover fixing screws (6 pcs.), and lift the
punch cover slightly to remove it from the finisher.
2) Remove the two fixing screws of the dummy punch cover, and
remove the dummy punch cover and the metal plate.
Attach the removed metal plate again with the two fixing
screws.
3) Remove the cabinet B fixing screws (2 pcs.) on the rear side of
the finisher, and remove the rear cabinet B.
C. Paper guide disassembly
1) Remove the paper guide fixing screw (1 pc.) and remove the
paper guide from the finisher.
D. Punch unit assembly
1) Hang the punch unit on the step screws (2 pcs.) of the finisher
and assemble it.
2) Fix the punch unit with the paper guide fixing screw (1 pc.)
which was removed in step C..
