MX-M753N MX-FN14 7 – 6

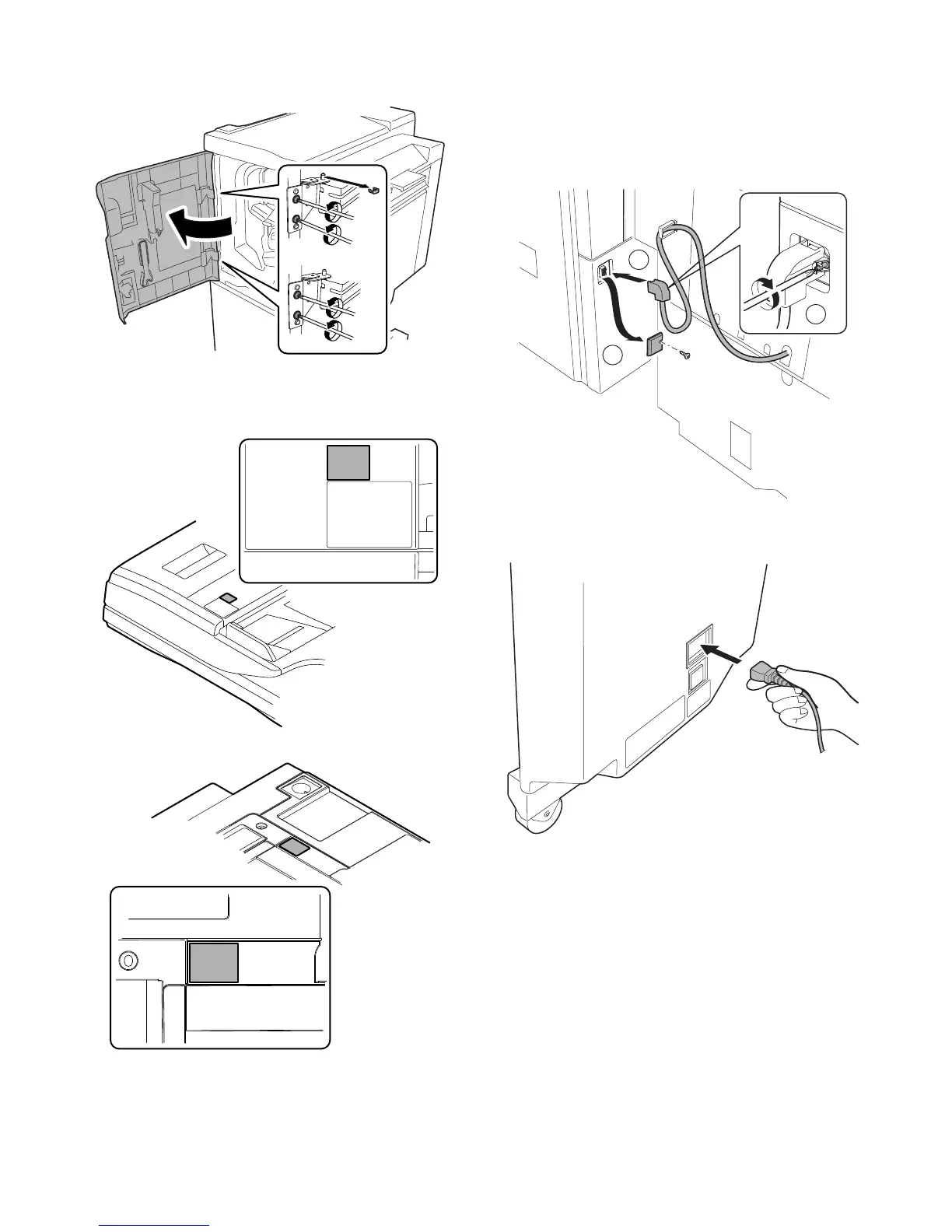

14) Attach the front cover upper, tighten the screw, and attach the
clip. Close the front cover upper.
E. Attach the staple position label.
Attach the staple position label as shown in the figure.
F. Connect the finisher connector
1) Remove the connector cover fixing screw for connection of the
finisher joint harness connector, and remove the connector
cover.
2) Connect the finisher relay harness connector to the main unit
connector, and tighten the screw on the connector to fix.
3) Install the clamp to the finisher, and pass the cable.
G. Connect the power cord
1) Connect the power cord to the finisher.
