Sharp MX-M623N

MX-M753N MX-PN10 8 – 4

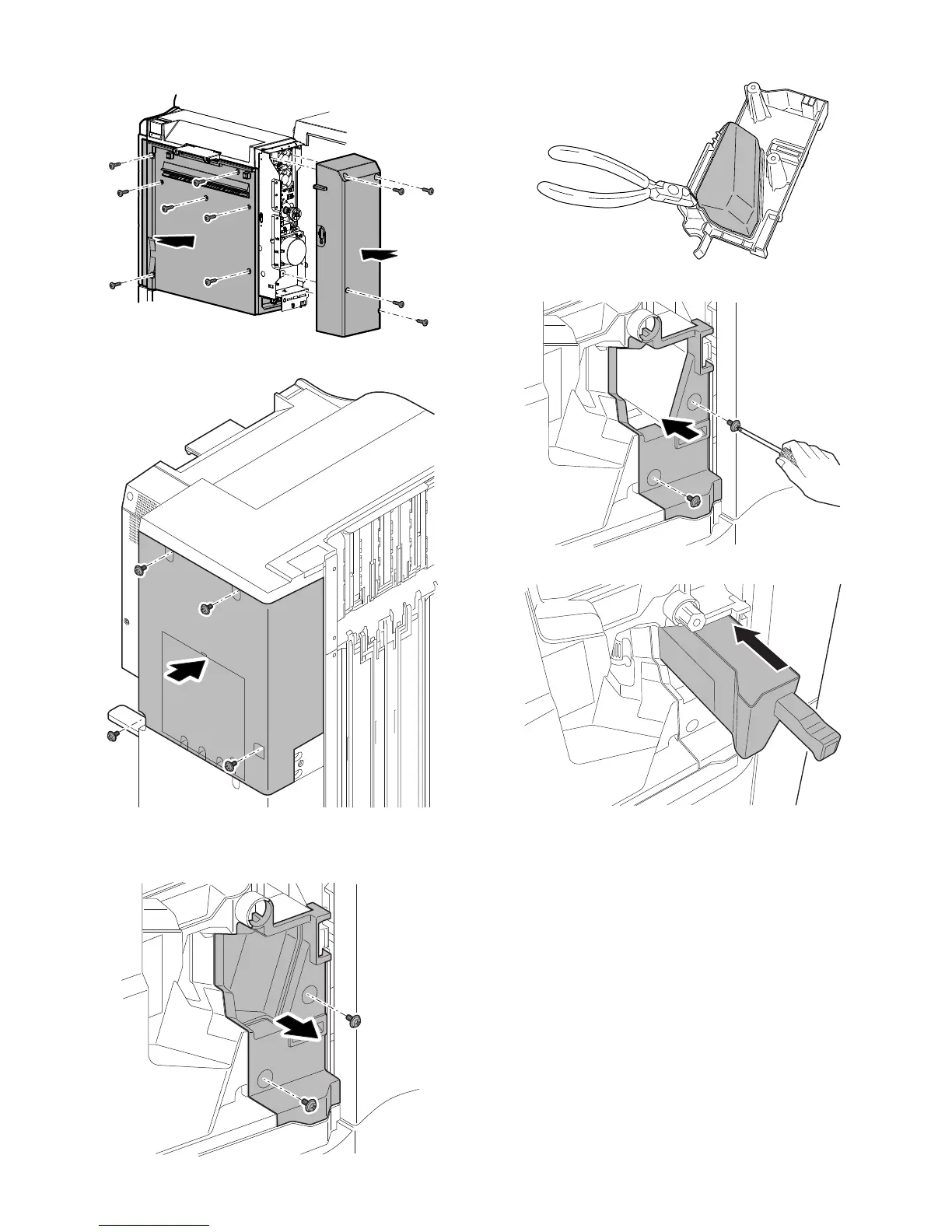

4) Install the rear cover and the right cover of the finisher inter-
face section, and fix each with the screw.
5) Install the rear cover of the finisher, and fix it with the screw.
G. Installation of the dust box
1) Remove the screw, and remove the dust box cover.
2) Cut out dust box cover by using a pair of diagonal cutters.
3) Install the dust box cover, and fix it with the screw.
4) Install the dust box.
