Sharp MZ-5500 Tehnical Manual

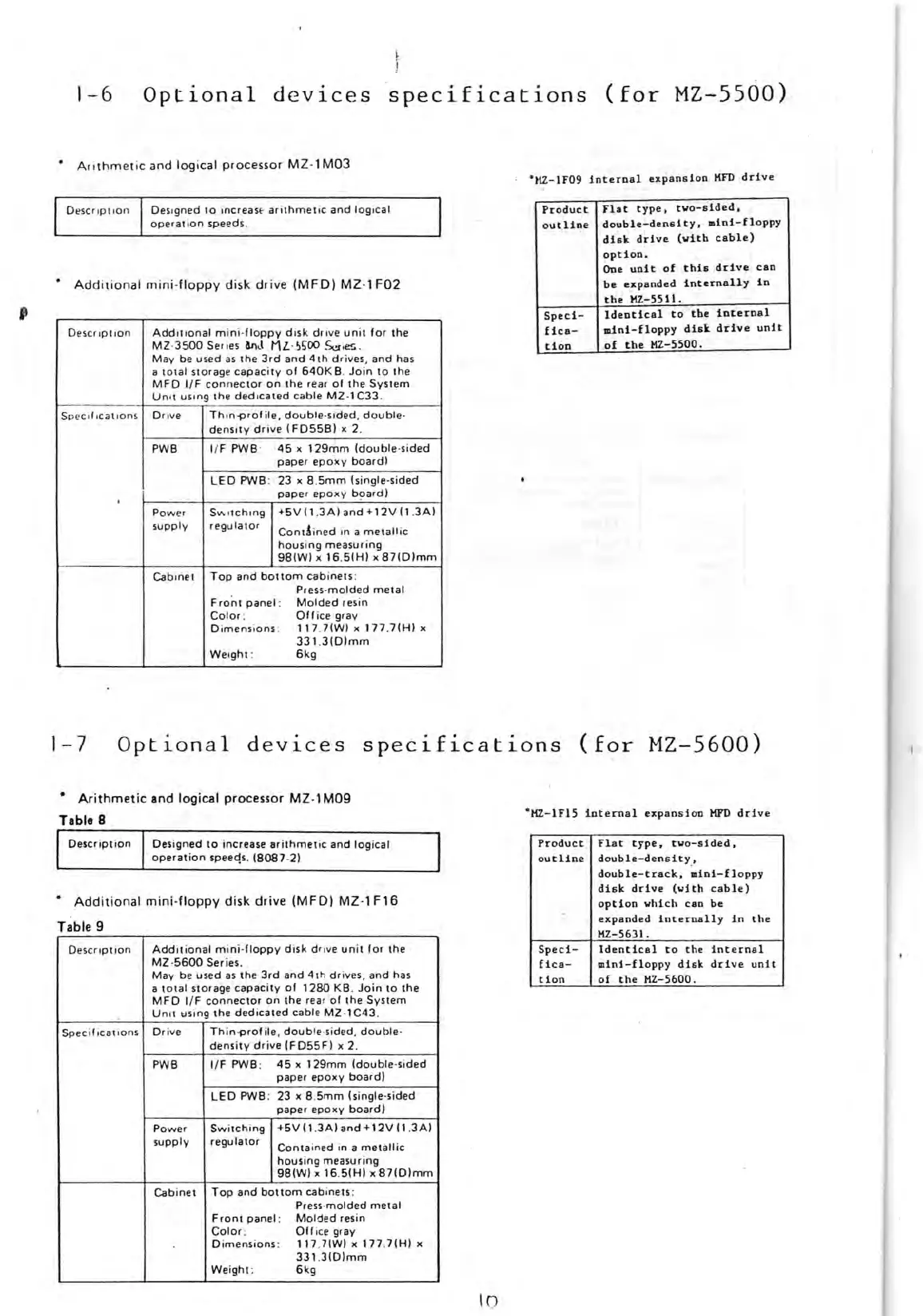

1-6
Optional devices ' specifications (for MZ-5SÖO)
Ar i thmet ic and logical processor MZ -l M03
. ·~1Z - 1F09 internal expansion KFD drive
Desi gned 10 increas f- ar i thmet ic and log i cal
operal i on speeds .
Add i tional mini - floppy disk dr i ve (MFD) MZ-' F02
Additional m ini- floppy d l sk drive unit far the
MZ· 3500 Se I ies a.n ~ l ML-~5"OO Ser i e<:; .
May be used as t he 3rd and 4th d rives, and has
a total storage capacity of 640K B. Join to the
MFD I/F connector on the rear 01 the System
Un lt uSlng the dedlcated cable MZ - 1C33 .
Descr ip
1Ion
Th i n-profile, double-sided, double ·
density drive (FD55B) x 2.
Drive
5Dec i
f Icat l on s
li F PWB
45 x l29mm (double - sided
paper epoxy board)
PWB
LED PWB :
23 x 8 . 5mm (si ngle-sided
paper epoxy b~ard)
,
+5V (1.3A) and +12V (1 . 3AI
supply
SW 1 tch ing
Powe r
regula to r
ContAined in a metallic
hous i ng measuring
98(W) x 16 . 5(H) x 87ID)mm
Top and boltom cab i nets :
Pr ess - molded metal
F rorn panel :
Molded resin
Color :
Office gray
Dimensions :
117 .7(W) x l77 . 7(H) x
33l . 31D1mm
We i ght :
6kg
Cab i net
Product
Flat
type,
two-sided ,
outllne
double-denslty, mini-floppy
disit drive
(with
cable)
option.
One unit of this
drive
can
be expanded internally
in
the HZ-SSll .
Spec!-
ldentical to the
internal
fica-
mini - floppy disk
drive unH
tion
of the HZ-S500.
1- 7
Optional devices specifications (for MZ-5600)
• Arithmetic and logical processor MZ-' M09
·HZ-IFIS internal expansion MYD drive
Table 8
Designed to increase arithmet ic and logical
operation speeqs . (8087 -2)
• Addit ional mini - floppy disk drive (MFD) MZ-' F16
Table 9
Descrlption
Additional mini - floppy disk d rI ve un it fo r the
MZ - 5600 Series .
May
be used as the 3rd and 4t h drives, and has
a to tal storage capacity of 1280 KB . Join to the
MFD I/F connector on the rea r of the System
Un it tJS ing the dedicated cable MZ - 1C43 .
Spec i ficat i ons
Drive
Th i n-profile , doub !e· sided, double ·
dens i ty dr ive (FD55FI x 2 .
PWB
I/F PWB :
45 x l29mm (double·s i ded
paper epoxy board)
LED PWB :
23 x 8 . 5mm (single-sided
paper epoxy board)
Power
supply
Sw i tching
regulator
+5V (1 . 3A) and +12V (1 . 3A)
Conta i ned in a metallic
hous ing measuring
98(WI x l6 . 5(H) x 87(D)mm
Cabinet
Top and boltom cab i nets :
Press-
molded metal
Front panel : Molded resin
Color : Off ice gray
Dimensions :
117 .7(W) x l77 . 7(H) x
331 . 3(O)mm
Wei ght :
6kg
Product
outline
rlat type,
two-sided,
double - density .,
double-track, mini-floppy
disk drive (with cable)
option which C8n be
expanded internally in the
HZ-563l.
Speci-
Identical to the internal
fica-
mini-floppy disk drive unit
tion of the MZ-5600.
