1-1
MZ-5500 SERIES HARDWARE DESCRIPTION

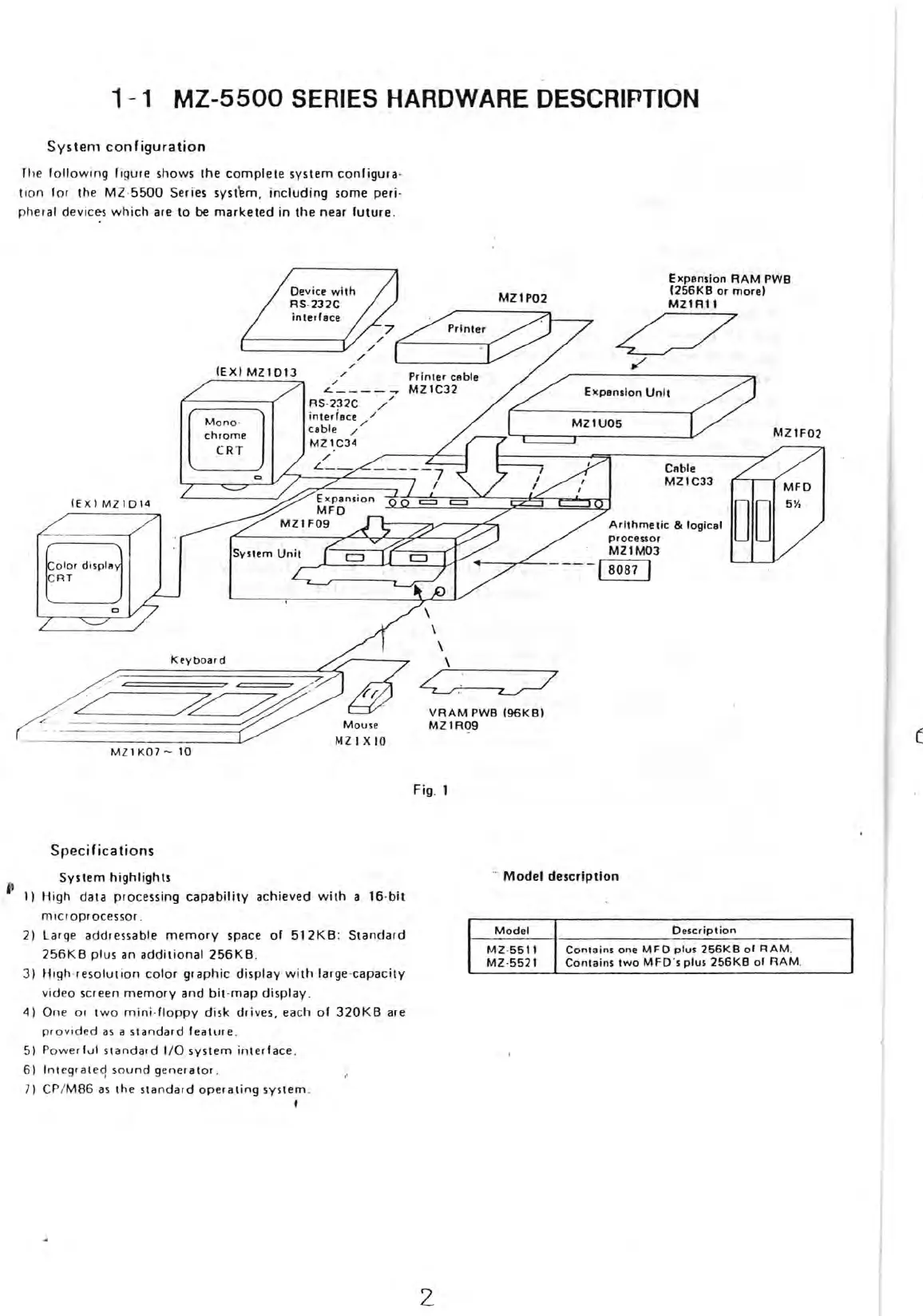

System configuration
lhe following figure shows the complete system configura-
tion for the MZ · 5500 Series syst'em. including some peri-
pheral device-s
which are to be marketed in the near future_
Oevice with
RS-232C
interface
MZ1P02
Expansion RAM PWB
(256KB or more)
MZ1R11
L7
,/ .
"
"
4 ____ ......
(EX) MZ1D14
Color display
CRT
Mono ·
chrome
CRT
Keyboar d
, /
interface //
cable /
MZ1CJ4
Mouse
MZ I X 10
"
\
\
\
VRAM PWB (96KB)
MZ1R09
Expansion Unlt
C"ble
MZ1C33
Arlthmetic & logicaIOD
processor
M21M03
----.:.(8087 I
MZ1F02
MZ1K07-10
Fig. 1
Specifications
System highlights
.. Model description
1) High data processing capability achieved wilh a 16 - bit
microprocessor .
2) Large addr essable
memory space of 512 K B: Standard
255KB plus an additional 256KB .
3) High · resolution color graphie display with large- capacity
video screen memory and bit- map display.
4) One or
two mini· floppy disk drives, each of 320K Bare
prov i ded as a standard feature.
5) Powerful standard 1/0 system interface .
5)
Integrateq sound generator .
7) ep / M86 as the standard operating system .
f
Model
Oescription
MZ - 5511
MZ- 5521
Conlains one MFO plus 256KB of RAM .
Contains two MFO 's plus 256KB of RAM .
