Sharp MZ-5500 Tehnical Manual

.
- -

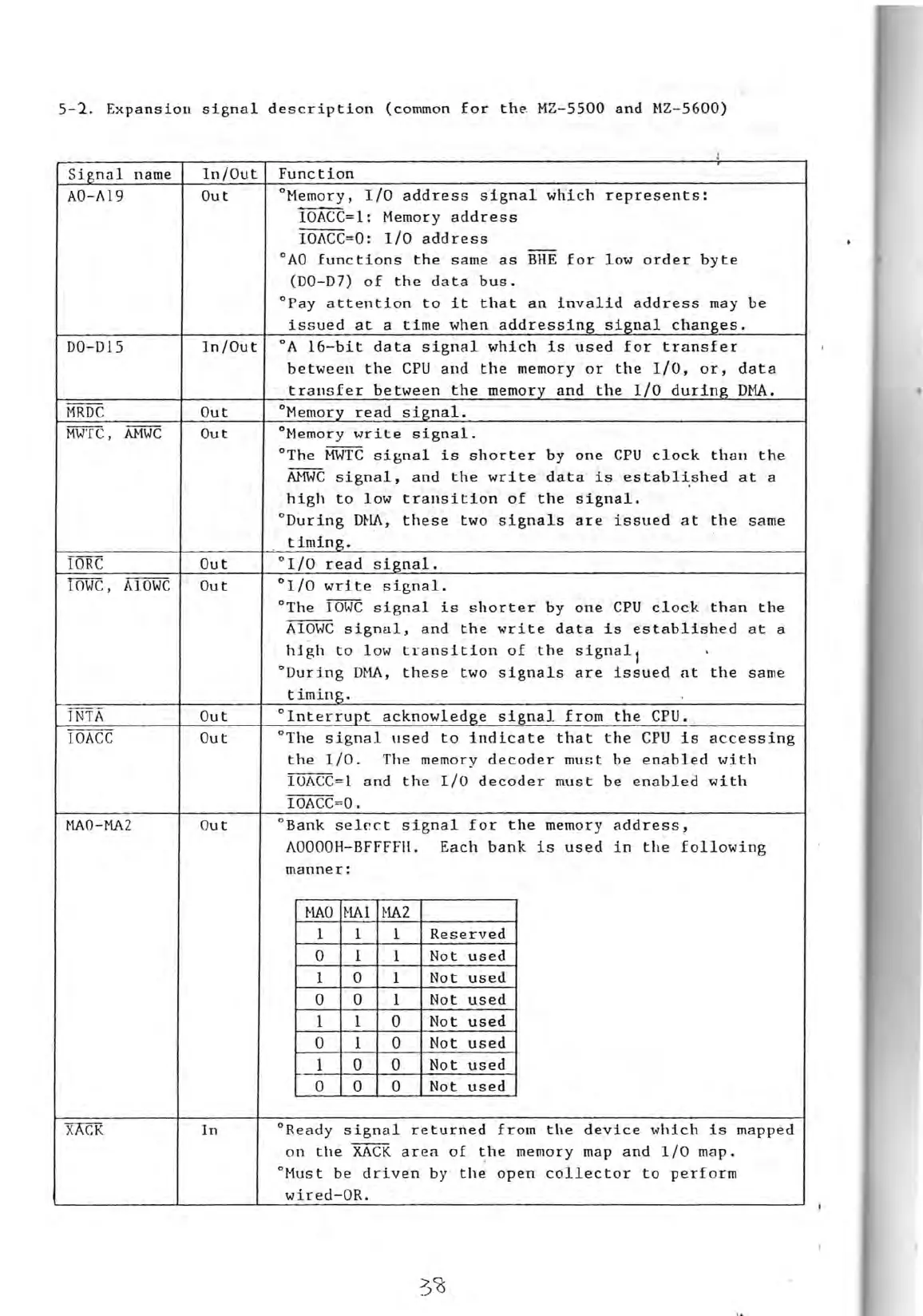

5-1 . Expansion signal description (common for the MZ - 5S00 and MZ - S600)
In/Out
Signal
nam e
Out
AO - AI9
DO - DIS
MRDC
MWTC , AMWC
ln/Out
Out
Out
IORC
10WC, AIOWC
Out
Out
JNTA
IOACC
Out
Out
MAO-MA2 Out
Function
°Memory,
1/0 address signal
which represents:
IOACC = l:
Memory addr e ss
10ACC=O : 1/0 address
°AO
functions
the
same
as
BHE for low order byte
(DO - D7 ) of
the data bus.
°Pay
attention to it that an invalid address may be
issued a t a time when addre ss ing signal ch ang es .
°A
16-bit data signal which is used for transfer
between th e CPU and the memory or
the
1/0,
or, data
transfer be tween th e memory and the
1/0 during DMA.
°Memory read s ignal.
°Me~ory writ e signal .
°Ihe MWIC s ignal i s
sho
rter by one CPU clock than
the
AMWC
signal, and the write da ta is es tablished at a
high
to
low
transition of
the
si g nal.
°During DH!,-,
the se
two
signals are issued at the same
timing.
°r/o
r ead
signal .
°1/0 write signal.
°Ihe
IOWC
signal is shorter by one CPU clock than the
AIOWC signal, and
the write da ta
is es tab lishe .d at
a
high to low
tl - ansition of the
s ignalt
°During DMA,
these two signals are issued at
th e
s
ame
timing .
°lnterrupt acknowledge
signal from
the CPU.
°Ihe signal used to indicate that
the epu
is accessing
the
1/0.
Ihe memory decoder must be enabled with
lOACC~1
and the 1/0 decod er must be enabled with
lOACC=O.
°Bank
select signal for
the memory
address,
AOOOOH - BFFFFH.
Each bank is used
in
the
following
manner:
MAO
HAI
HA2
1
1
1
0 I I
1 0 1
0
0 1
1
1
0
0 1 0
1
0 0
0
0
0
Reserved
Not used
Not us ed
Not us ed
Not used
Not used
Not
used
Not
used
°Ready signal
returned from the device which is mapped
on
th e XACK area of
~he memory map and
1/0 map.
°Must be
driven
by
the
open collector
to
perform
wired - OR.
XACK In
\
