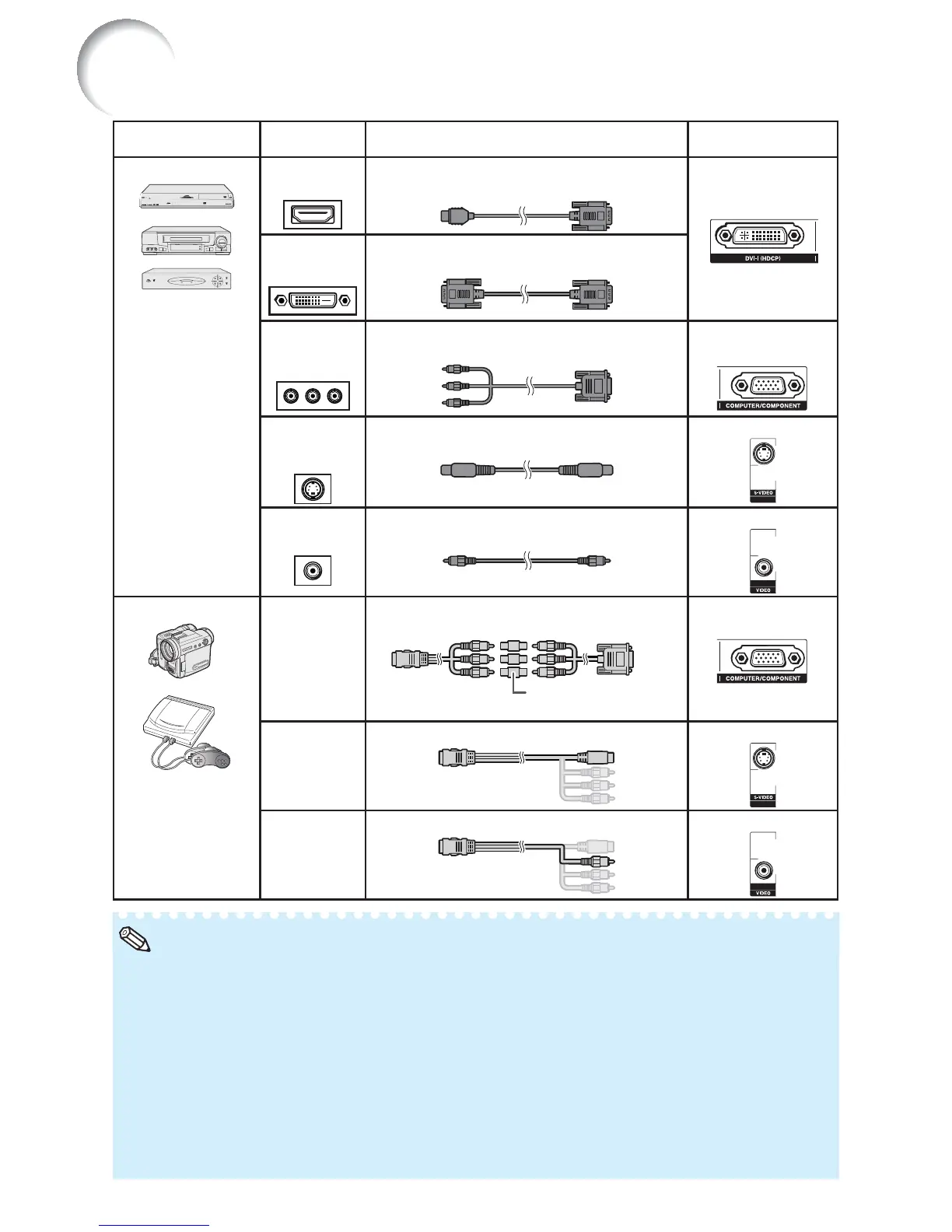

Connecting the Projector to Other Equipment (Continued)
Equipment
Terminal on
connected equipment
Cable
Terminal on the
projector
Video equipment
HDMI output
terminal
HDMI to DVI cable
(commercially available)
DVI-I
DVI digital
output
terminal
DVI Digital cable (commercially available)
Component
video output
terminal
3 RCA to mini D-sub 15 pin cable
(optional, AN-C3CP2)
COMPUTER/
COMPONENT
S-video
output
terminal
S-video cable (commercially available) S-VIDEO
Video output
terminal
Video cable (commercially available) VIDEO
Camera/Video game
Component
video
output
terminal
Cables for a camera or a video game/3 RCA to
mini D-sub 15 pin cable (optional, AN-C3CP2)
RCA adaptor plug
(commercially available)
COMPUTER/
COMPONENT
S-video
output
terminal
Cables for a camera or a video game
S-VIDEO
Video
output
terminal
Cables for a camera or a video game
VIDEO
While the projector is connected to video equipment that has an HDMI output terminal, only the video
signal can be input to the projector. (Connect the AUDIO input terminal for audio input.)
Depending on specifi cations of video equipment or the DVIÙHDMI digital cable, the signal
transmission may not work property. (The HDMI specifi cation does not support all connections to
video equipment that has HDMI digital output terminal using a DVIÙHDMI digital cable.)
For details on compatibility for connection, see support information on DVI connection provided by
the video equipment manufacturer.
When you connect external equipment to the projector using a DVI digital cable, the image will look
different from its original appearance. In this case, switch to the Plug-and-Play data. (See page
37.)
When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a
commercially available cable that fi ts in the projector terminal you want to connect.
The projector does not support RGBC signals via the Euro-scart.
•
•
•
•
•
•
