27
Basic
Operation
2 Adjusting the Height
The height of the projector can be
adjusted using the adjustment feet at the
front and rear of the projector.
When the screen is above the projector,
the projection image can be made higher
by adjusting the projector.

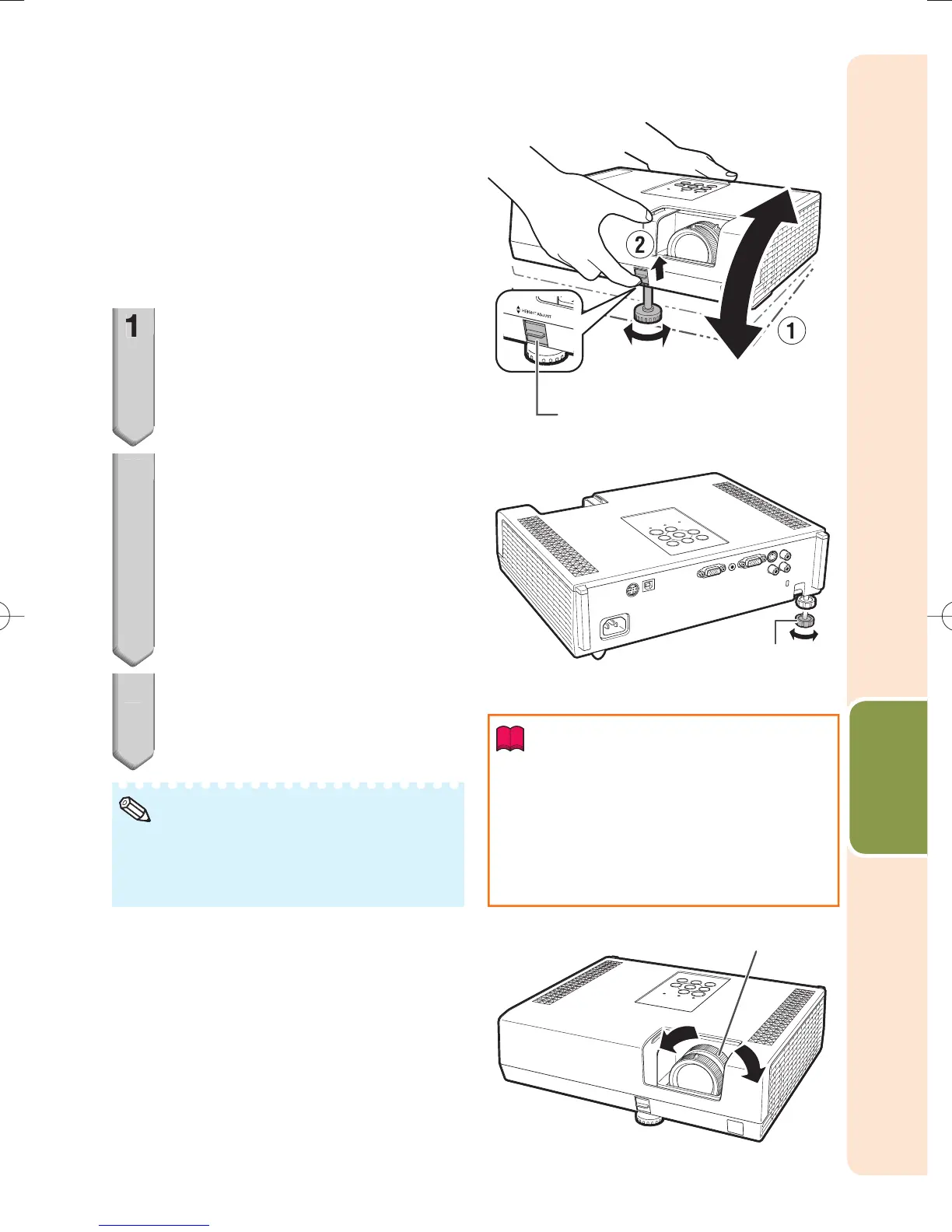

1
Lift the projector to adjust its
height while lifting the HEIGHT
ADJUST lever.
2
Remove your hands from the
HEIGHT ADJUST lever of the
projector after its height has
been fi nely adjusted.
The angle of projection is adjustable up to
9 degrees from the surface on which the
projector is placed.
3
Use the rear adjustment foot to
make the projector level.
The projector is adjustable ±2 degrees
from the standard position.
When adjusting the height of the projector,
trapezoidal distortion occurs. Follow the
procedures in Keystone Correction to correct
the distortion. (See pages
28 and 46.)
•
Note
3 Adjusting the Picture Size
You can adjust the picture size using the
zoom ring on the projector.
Rotate the zoom ring to enlarge or
shrink the picture size.
Using the knob on the zoom ring will make the
adjustments easier.
•
Zoom ringZoom ring
•
•
1
2
3
Rear adjustment footRear adjustment foot
HEIGHT ADJUST lever
Make small
adjustments.
Info
Do not apply too much pressure on the
projector when the front adjustment foot
comes out.
When lowering the projector, be careful not to
get your fi ngers caught in the area between
the adjustment foot and the projector.
Hold the projector fi rmly while lifting or carrying.
Do not hold by the lens area.
•
•
•
•
