(8) Board list
Touch to display the list of boards as thumbnail images. (Page 21)
(9) Minimize
The software will be minimized in the task tray.
(10) Window / Maximize
Displays the software in a window. (Page 16)
* Whiteboard mode only.
(11) Quit
The software is exited.
(12) Board
Work area. You can write letters, draw lines, and paste images etc.
The board can be displayed in 2 modes: whiteboard mode and overlay mode. The latter is transparent, showing the background.
(13) Toolbar
TIPS
• The background color and image can be changed for whiteboard mode. (Page 24)
Menu
There are 3 menu types that can be used to select functions.
• Square menu (below), classic menu (page 9) or oating menu (page 10)
• Function list of “All Functions” (page 13)
To use a function, touch the icon of the function in the menu to select it.
TIPS
• When 4K display is used, the menu size can be changed. (Page 56)
n

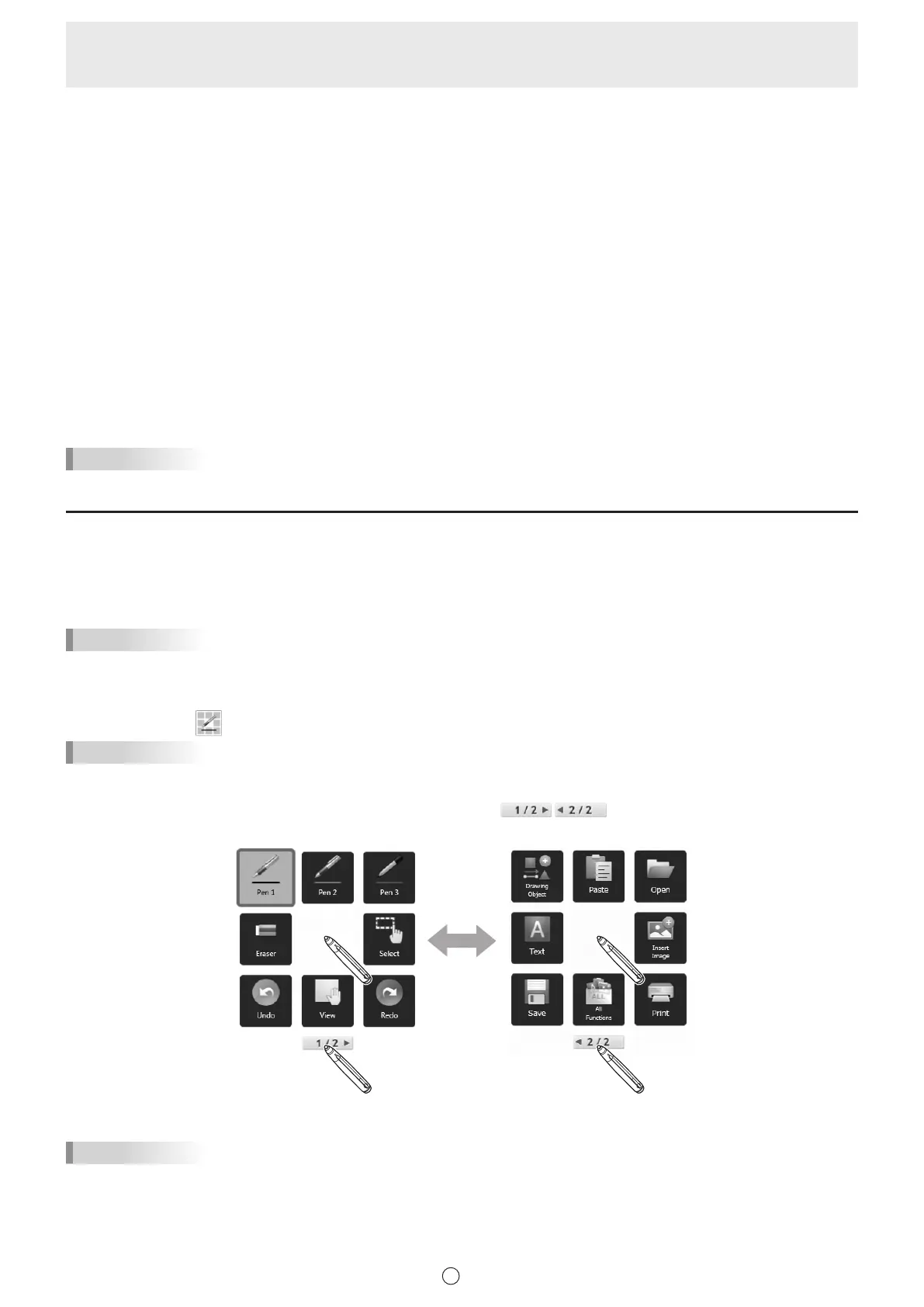

Square menu
Touch the indicator ( ) to display the square menu.
TIPS
• The illustration displayed in the indicator varies depending on the function used.
The square menu has 2 sides. To change the menu, touch the button (
) under the icon or touch the blank
center of the square menu.
When a place other than the menu is touched, the menu disappears and the indicator is displayed.
TIPS
• The square menu and indicator can be moved by dragging.
To move the square menu, drag the blank center of the square menu.
• To move the indicator close to the pen tip of the touch pen, hold the pen down on the screen.
• The icon size can be changed to large or small.

Sharp PN-70SC3 Specifications

General

Panel life	- h
Pixel pitch	- mm
Screen shape	Flat
Response time	6 ms
Backlight type	Edge LED
Display diagonal	70 \
Touch technology	Multi-touch
Display brightness	300 cd/m²
Display technology	LED
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Touchscreen technology	Infrared
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Display diagonal (metric)	176.6 cm
Number of simultaneous touchpoints	6
Ethernet LAN	No
HDMI ports quantity	3
VGA (D-Sub) input ports	1
HDMI output ports quantity	0
Bundled software	SHARP PenSoftware
Placement supported	Horizontal
Multi-display supported	-
Product color	Black
Product design	Digital signage flat panel
Bezel width (top)	40.5 mm
Heavy metals free	Hg (mercury)
Bezel width (side)	39 mm
Bezel width (bottom)	77 mm
Panel mounting interface	400 x 400 mm
RMS rated power	20 W
Number of built-in speakers	2
AC input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	235 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	109 mm
Width	1633 mm
Height	994.5 mm
Weight	59000 g
