Sharp PN-HS501 User Manual

9
E
n
Front view
n
Rear view
1
19 18 19
15
14
13
12
16
3 4 56789
10 11
2
17

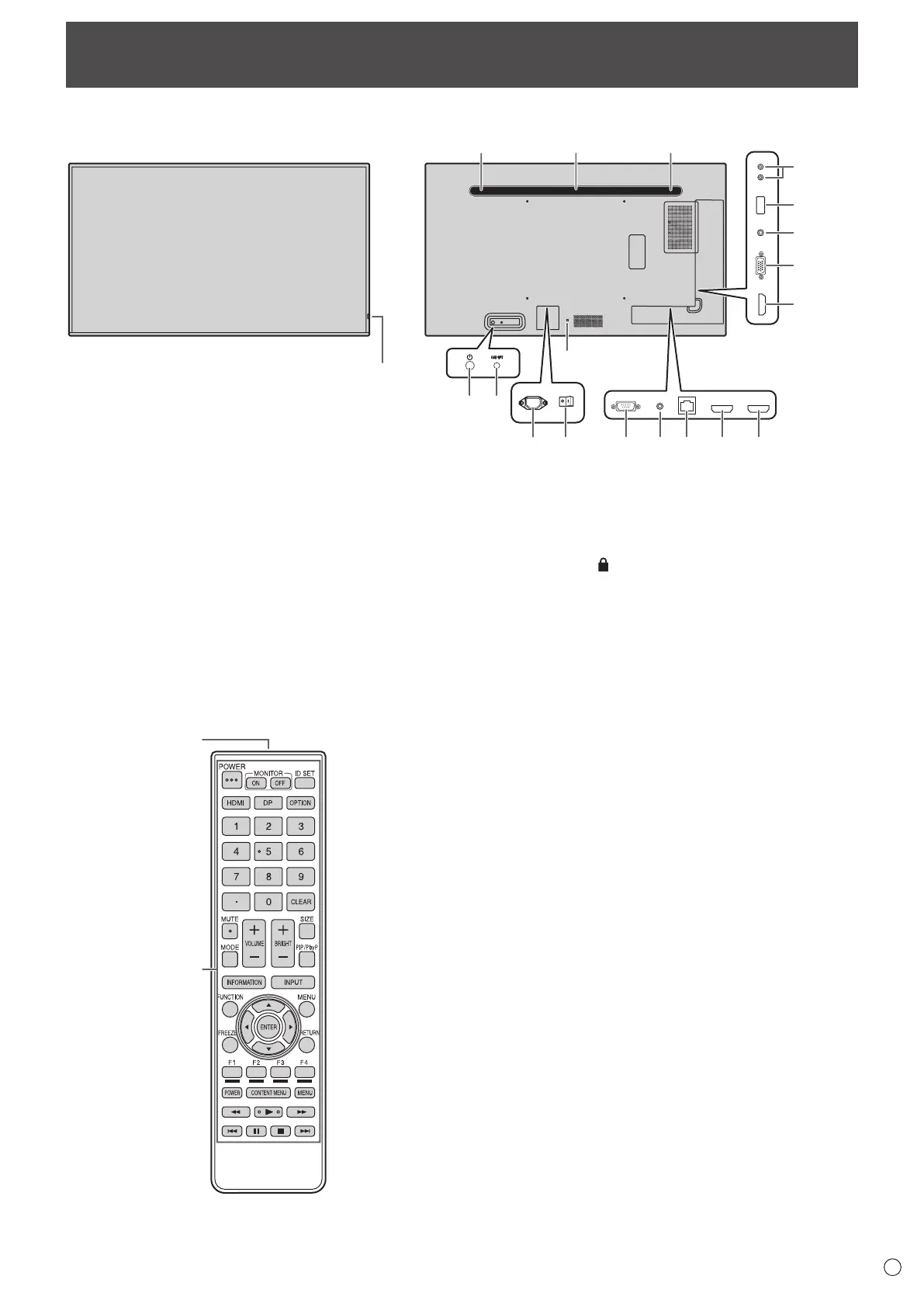

Part Names
1. LCD panel
2. Power LED (See page 15.) / Remote control sensor
(See page 14.)
3. AC input terminal (See page 12.)
4. Main power switch (See page 15.)
5. RS-232C input terminal (See page 11.)
6. IR output terminal (See page 11.)
7. LAN terminal (See page 11.)
8. HDMI3 input terminal (See page 10.)
9. HDMI2 input terminal (See page 10.)
10. POWER button (See page 15.)
11. INPUT button (See page 18.)
12. Audio output terminals (See page 10.)
13. USB port (See page 10.)
14. Audio input terminal (See page 10.)
15. D-sub input terminal (See page 10.)
16. HDMI1 input terminal (See page 10.)
17. Anti-theft slot (
)
Allows the monitor to be secured using a commercially
available anti-theft lock.
18. Vents
19. Speakers
n
Remote control unit
2
1
1. Signal transmitter
2. Operation buttons (See page 17.)
