Sharp PN-LC652 Setup Manual

10
E

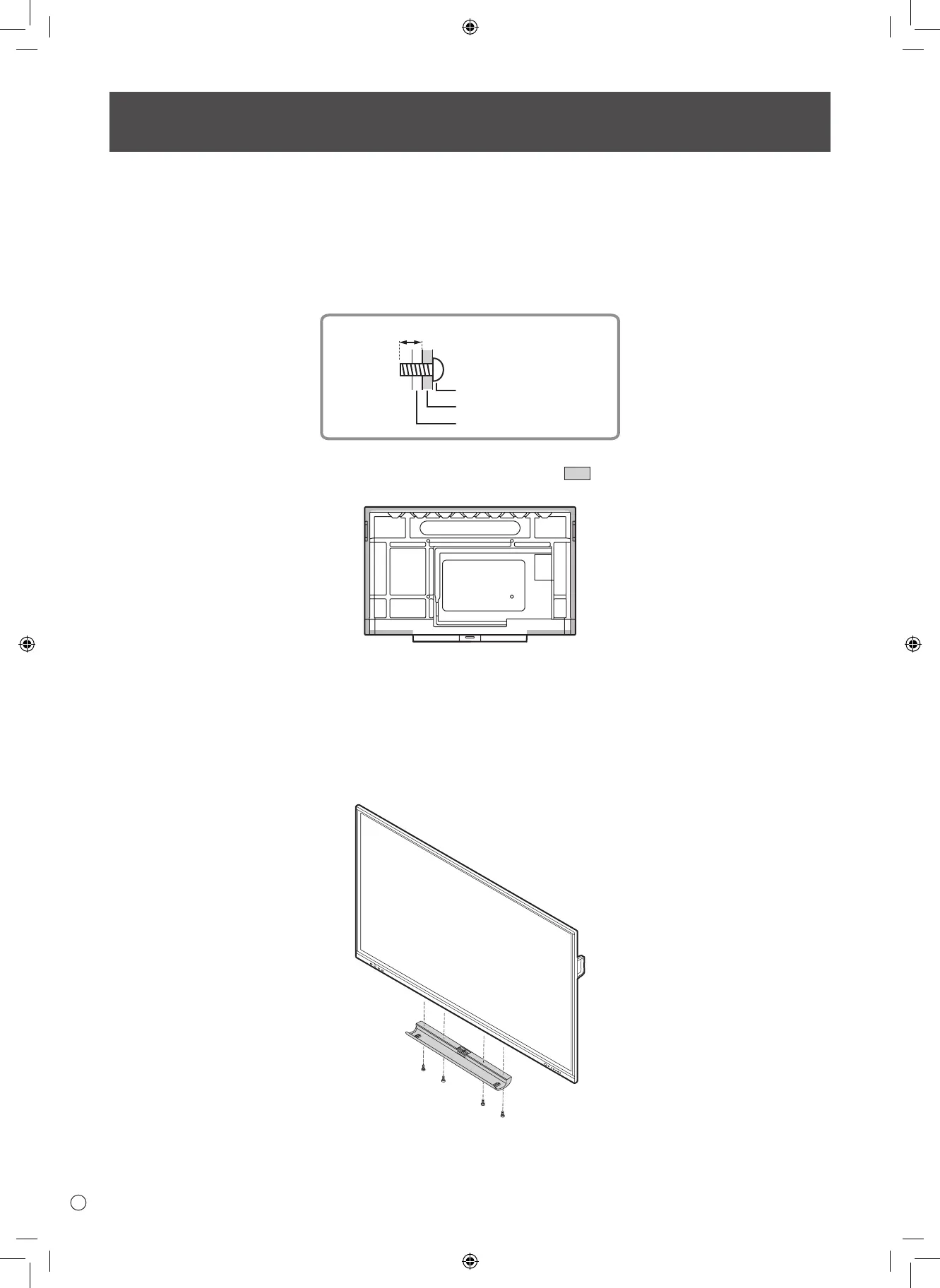

• When installing, removing or moving the monitor, ensure that this is carried out by at least 4 people. (PN-LC652: at least 2
people.)
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials
such as plaster / thin plastic board / wood before starting installation.
• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M8 screws that are 3/8 inch (10 mm) to 9/16 inch (15 mm) longer than the
thickness of the mounting bracket.
Screws (M8)
Mounting bracket
Monitor mounting
3/8 - 9/16 inch (10-15 mm)
• Do not use an impact driver.
• When moving the monitor, be sure to hold the handles or the parts marked by
below. Do not grasp the screen or tray.
This may cause product damage, failure, or injury.
• If you need to temporarily place the monitor on a table or other surface during installation, spread a thick soft cloth on the
table to prevent damage to the screen and table.
• Prior to repacking or removal, remove the tray.
• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than those for mounting brackets, located on the rear of the monitor, for installation.
n
Attaching the Tray
Secure the tray using 4 tray mounting screws (M3x8) (supplied).
Mounting Precautions
(For SHARP dealers and service engineers)

Sharp PN-LC652 Specifications

General

Pixel pitch	0.372 x 0.372 mm
LED backlight	Yes
Response time	8 ms
Display diagonal	65 \
Surface hardness	8
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Touchscreen technology	Infrared
Contrast ratio (typical)	1200:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	163.9 cm
Active display area (W x H)	1428.5 x 803.5 mm
Number of simultaneous touchpoints	20
DVI port	No
USB connector type	USB Type-A, USB Type-B, USB Type-C
USB ports quantity	6
HDMI ports quantity	4
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI input ports quantity	3
HDMI output ports quantity	1
USB 2.0 Type-B ports quantity	2
Purpose	Education
Pen type	Passive pen
Operating hours (hours/days)	16/7
RMS rated power	30 W
Orientation	Horizontal
Screen shape	Flat
Mounting type	Wall
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	21.9 mm
Placement supported	Indoor
Bezel width (bottom)	53.2 mm
Panel mounting interface	600 x 400 mm
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	390 W
Internal memory	8 GB
Processor family	ARM Cortex
Processor architecture	ARM Cortex-A55
Processor manufacturer	ARM
Internal storage capacity	16 GB
Operating system installed	Android 11
Package depth	225 mm
Package width	1660 mm
Package height	1010 mm
Package weight	49000 g
Certification	CE; FCC; RCM; REACH; RoHS; UL/C-UL
Cables included	AC, USB

Weight and Dimensions

Display depth	85.9 mm
Display width	1511.6 mm
Display height	917.9 mm
Display weight	38500 g
