Sharp PN-LC652 Setup Manual

6
E

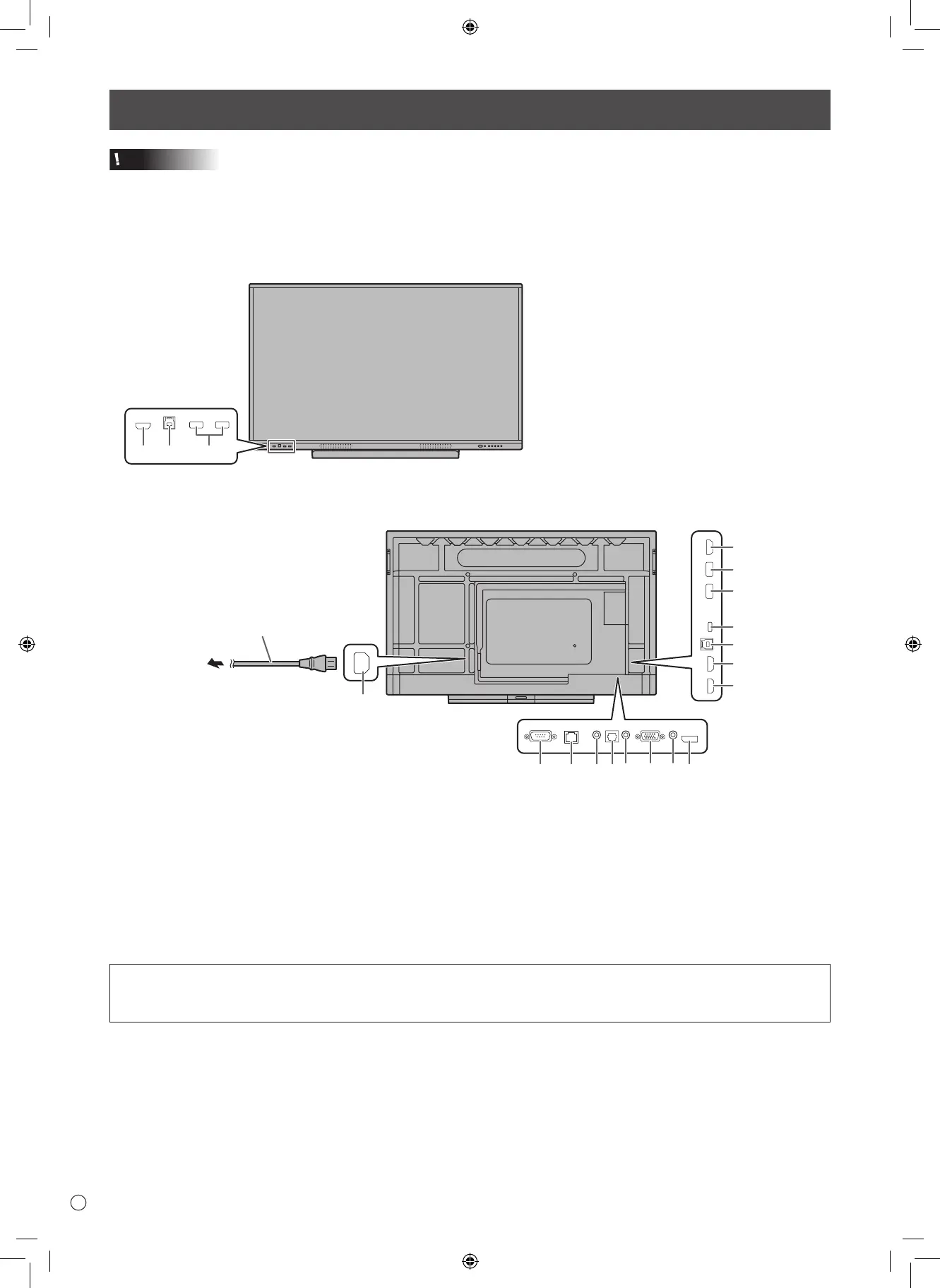

Connections
Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
1 2 3
1. HDMI1 input terminal
2. TOUCH PANEL1 terminal
(for HDMI1)
3. USB port (USB 3.0 compliant)
4. HDMI output terminal
5. USB port for APPLICATION mode (USB 3.0 compliant)
6. USB Type C port
7. TOUCH PANEL2 terminal
(for HDMI2/HDMI3/DisplayPort/D-SUB)
8. HDMI2 input terminal
9. HDMI3 input terminal
10. RS-232C input terminal
The TOUCH PANEL terminal is USB3.0 Type B.
Although the connector shape is different, the supplied USB cable (USB 2.0 Type B) can be connected to the TOUCH PANEL
terminal.
n
Rear view
For power outlet
Power cord (Supplied)
6
5
4
3
7
8
9
10 11 12
13 14 15 16 17
18
n
Front view
11. LAN terminal
12. Audio output terminal
13. Digital audio output (optical) terminal
14. Audio input terminal
15. D-sub input terminal
16. Mini AV input terminal
17. DisplayPort input terminal
18. AC input terminal

Sharp PN-LC652 Specifications

General

Pixel pitch	0.372 x 0.372 mm
LED backlight	Yes
Response time	8 ms
Display diagonal	65 \
Surface hardness	8
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Touchscreen technology	Infrared
Contrast ratio (typical)	1200:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	163.9 cm
Active display area (W x H)	1428.5 x 803.5 mm
Number of simultaneous touchpoints	20
DVI port	No
USB connector type	USB Type-A, USB Type-B, USB Type-C
USB ports quantity	6
HDMI ports quantity	4
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI input ports quantity	3
HDMI output ports quantity	1
USB 2.0 Type-B ports quantity	2
Purpose	Education
Pen type	Passive pen
Operating hours (hours/days)	16/7
RMS rated power	30 W
Orientation	Horizontal
Screen shape	Flat
Mounting type	Wall
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	21.9 mm
Placement supported	Indoor
Bezel width (bottom)	53.2 mm
Panel mounting interface	600 x 400 mm
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	390 W
Internal memory	8 GB
Processor family	ARM Cortex
Processor architecture	ARM Cortex-A55
Processor manufacturer	ARM
Internal storage capacity	16 GB
Operating system installed	Android 11
Package depth	225 mm
Package width	1660 mm
Package height	1010 mm
Package weight	49000 g
Certification	CE; FCC; RCM; REACH; RoHS; UL/C-UL
Cables included	AC, USB

Weight and Dimensions

Display depth	85.9 mm
Display width	1511.6 mm
Display height	917.9 mm
Display weight	38500 g
