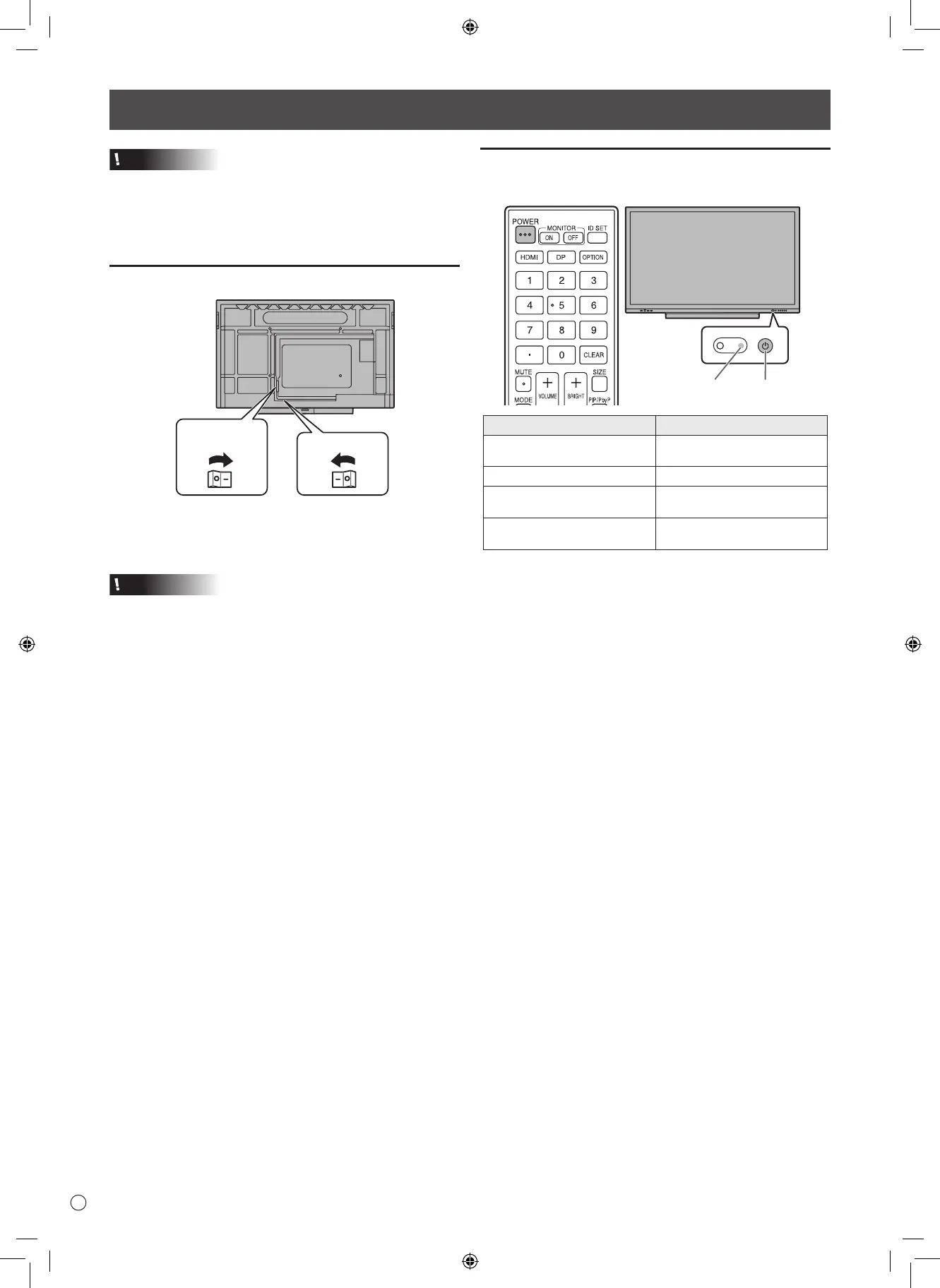

Sharp PN-LC652 Setup Manual

8
E
Caution
• Turn on the monitor first before turning on the computer or
playback device.
• When switching the main power switch or the POWER
button off and back on, always wait for at least 5 seconds.
A short interval may result in a malfunction.
Turning on the main power
Main power switchMain power switch
PN-LC652
When you turn on the main power, the monitor enters standby
state.
Off mode, when main power is off.
Caution
• The main power must be turned on/off with the main power
switch. Do not connect/disconnect the power cord or turn
the breaker on/off while the main power switch is on.
•
For a complete electrical disconnection, pull out the main plug.
Turning power on
1. Press the POWER button.
Power LED
POWER button
Status Status of the monitor
Blue lit
Power on
Sleep state (Backlight off)
Orange lit Power off (Standby state*
1
)
Orange flashing (at approx. 2
seconds interval)
Power off (Standby state*
2
)
Orange flashing (at approx. 1
second interval)
Input signal waiting state
*1 When “Power save mode” is set to on.
Standby mode when “Wake On LAN” is set to off.
Networked standby mode when “Wake On LAN” is set to on.
Networked standby mode allows the monitor to be turned on
via network (LAN, RS-232C, and HDMI CEC).
*2 When “Power save mode” is set to off.
Turning Power On/Off

Sharp PN-LC652 Specifications

General

Pixel pitch	0.372 x 0.372 mm
LED backlight	Yes
Response time	8 ms
Display diagonal	65 \
Surface hardness	8
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Touchscreen technology	Infrared
Contrast ratio (typical)	1200:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	163.9 cm
Active display area (W x H)	1428.5 x 803.5 mm
Number of simultaneous touchpoints	20
DVI port	No
USB connector type	USB Type-A, USB Type-B, USB Type-C
USB ports quantity	6
HDMI ports quantity	4
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI input ports quantity	3
HDMI output ports quantity	1
USB 2.0 Type-B ports quantity	2
Purpose	Education
Pen type	Passive pen
Operating hours (hours/days)	16/7
RMS rated power	30 W
Orientation	Horizontal
Screen shape	Flat
Mounting type	Wall
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	21.9 mm
Placement supported	Indoor
Bezel width (bottom)	53.2 mm
Panel mounting interface	600 x 400 mm
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	390 W
Internal memory	8 GB
Processor family	ARM Cortex
Processor architecture	ARM Cortex-A55
Processor manufacturer	ARM
Internal storage capacity	16 GB
Operating system installed	Android 11
Package depth	225 mm
Package width	1660 mm
Package height	1010 mm
Package weight	49000 g
Certification	CE; FCC; RCM; REACH; RoHS; UL/C-UL
Cables included	AC, USB

Weight and Dimensions

Display depth	85.9 mm
Display width	1511.6 mm
Display height	917.9 mm
Display weight	38500 g
