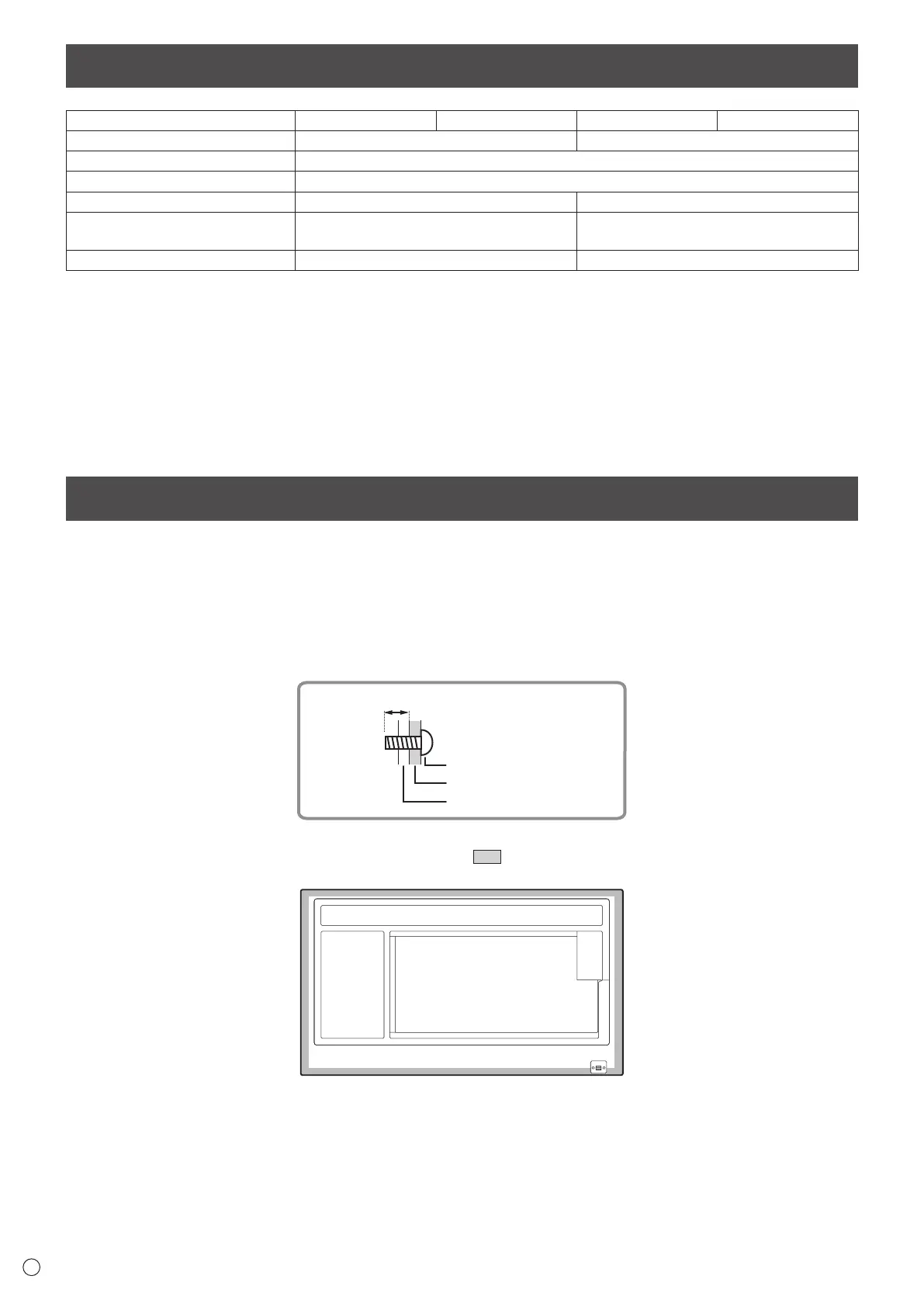

Sharp PN-M401 Setup Manual

8
E
• When installing, removing or moving the monitor, ensure that this is carried out by at least 2 people.
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials
such as plaster / thin plastic board / wood before starting installation.
• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the
thickness of the mounting bracket.
Screws (M6)
Mounting bracket
Monitor mounting
5/16 - 3/8 inch (8-10 mm)
• Do not use an impact driver.
• When moving the monitor, be sure to hold the parts marked by
below. Do not hold the LCD panel. This may cause
product damage, failure, or injury.
• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.
• When using this monitor laying at on a surface (when the monitor is tilted more than 20 degrees upward or downward
from the perpendicular in relation to a level surface), consult an authorized SHARP dealer because there are some specic
mounting conditions.
Model PN-M501 PN-B501 PN-M401 PN-B401
Power requirement AC 100 - 240 V, 1.4 A, 50/60 Hz AC 100 - 240 V, 1.1 A, 50/60 Hz
Operating temperature
*
32°F to 104°F (0°C to 40°C)
Operating humidity 20% to 80% (no condensation)
Power consumption 120 W 92 W
Dimensions inch (mm)
(excluding protrusions)
Approx. 44-3/16 (W) x 2-11/16 (D) x
25-1/2 (H) (1123 x 68 x 647)
Approx. 35-1/2 (W) x 2-5/8 (D) x 20-3/16 (H)
(902 x 66 x 513)
Weight lbs. (kg)
Approx. 49 (22) Approx. 34 (15)
* When using this monitor laying at on a surface (when the monitor is tilted more than 20 degrees upward or downward from the perpendicular
in relation to a level surface), use this monitor at the ambient temperature between 32°F (0°C) and 86°F (30°C).
Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such
cases, please check the temperature condition specied by the optional equipments.
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specication changes for product improvement
without prior notice. The performance specication gures indicated are nominal values of production units. There may be some deviations from
these values in individual units.
Specications
Mounting Precautions (For SHARP dealers and service engineers)
