Specications
• When installing, removing or moving the monitor, ensure that this is carried out by at least 3 people.
(PN-R603: at least 2 people.)
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials
such as plaster / thin plastic board / wood before starting installation.
• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the
thickness of the mounting bracket.
• Do not use an impact driver.

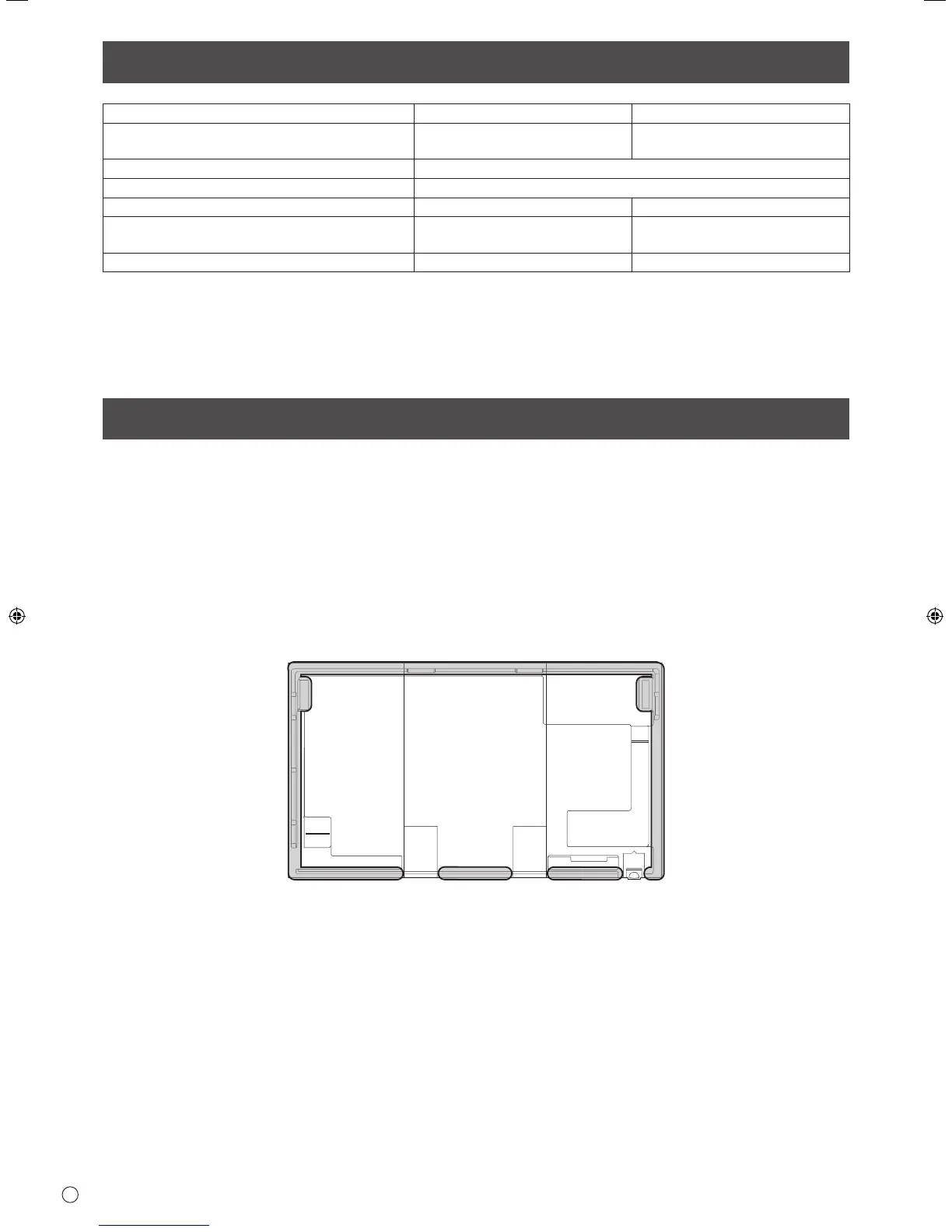

• When moving the monitor, be sure to hold the areas shown in the gure below. Do not hold the LCD panel. This may cause
product damage, failure, or injury.
• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.
Model PN-R703 PN-R603
Power requirement AC 100 - 240 V, 3.0 - 1.2 A,
50/60 Hz
AC 100 - 240 V, 2.3 - 1.0 A,
50/60 Hz
Operating temperature
*
32°F to 104°F (0°C to 40°C)
Operating humidity 20% to 80% (no condensation)
Power consumption 270 W 200 W
Dimensions (excluding protrusions) inch (mm)
Approx. 62-1/8 (W) x 1-9/16 (D) x
36-1/16 (H) (1578 x 39.4 x 916)
Approx. 54-1/4 (W) x 1-9/16 (D) x
31-1/4 (H) (1378 x 39.4 x 794)
Weight lbs. (kg)
Approx. 94.8 (43) Approx. 70.5 (32)
* Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such
cases, please check the temperature condition specied by the optional equipments.
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specication changes for product improvement
without prior notice. The performance specication gures indicated are nominal values of production units. There may be some deviations from
these values in individual units.
