PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010
CONFIDENTIAL

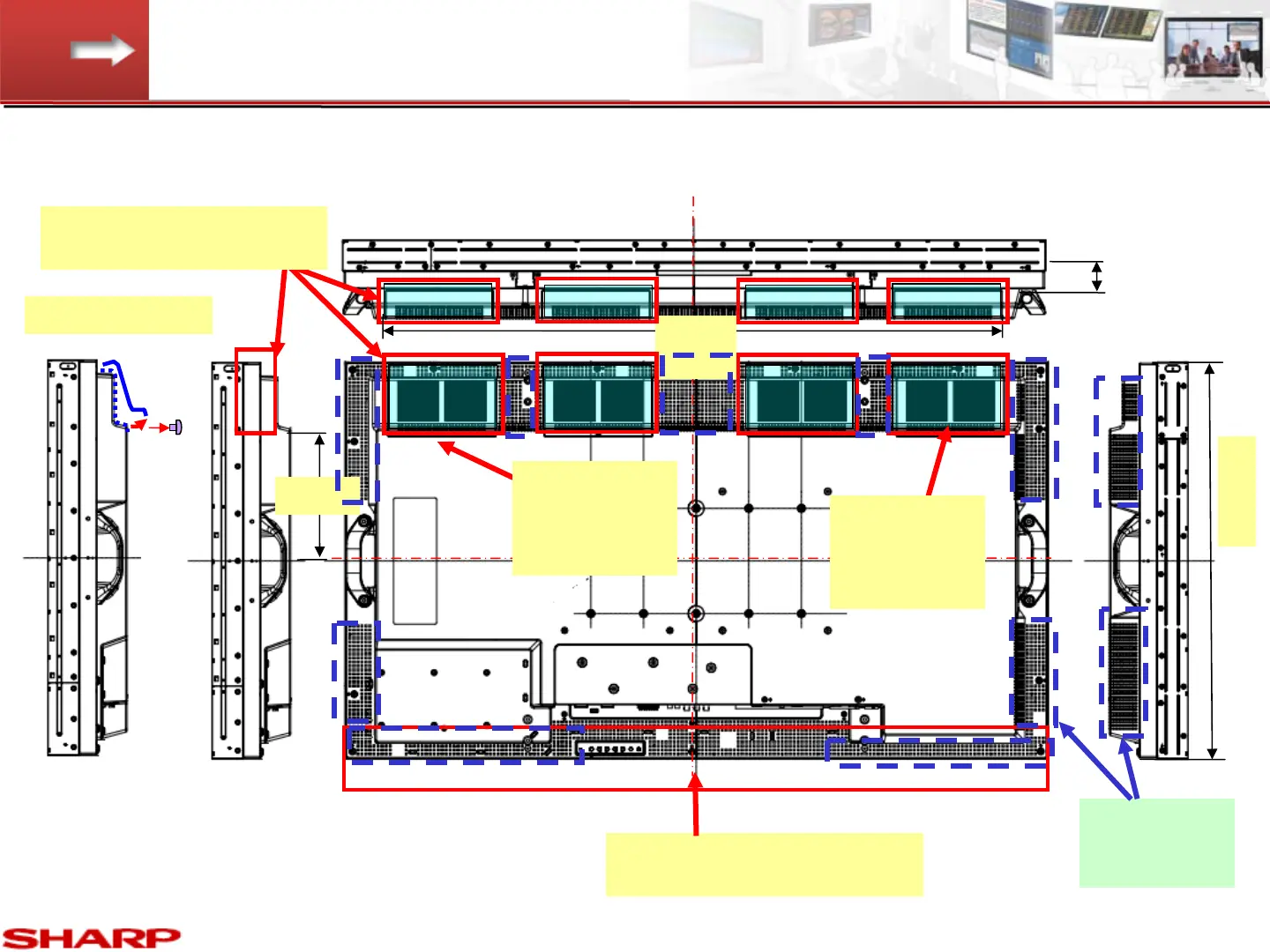

Position of
cooling fan.
4 places at
backside.
Fan-cover is
attached
firmly with
screws.
(1180
)
(754.2)
(232)
Cover removal
Intake port of cooling fan.
Do NOT cover this area.
Do NOT cover vent hole and intake-port. If the temperature of the inside of the monitor is rising, it may cause the failure of the
monitor.
Do NOT
cover engine
grille.
Do NOT cover this area for
replacing of cooling fan
Position of exhaust fan and intake-port
13
