Sharp R-15AT Original Instruction

4
DEF ON NO. X2 CHECK
15
2 3 4 5
7
1
10
12
14
8
6
9
11
13
16
"


!
&'
!"#$
%

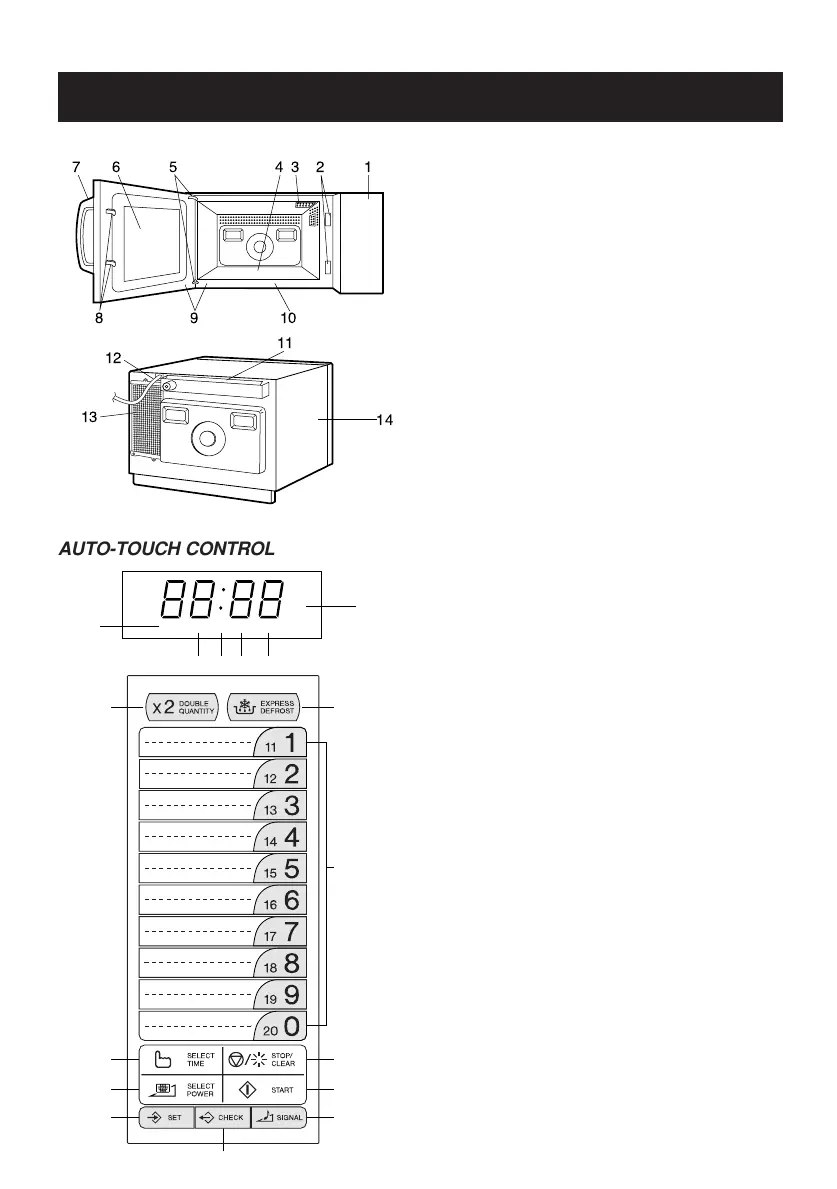

AUTO-TOUCH CONTROL PANEL
1 Control panel
2 Door lock openings
3 Oven lamp
4 Ceramic floor (Not removal)
5 Door hinges
6 Door
7 Door open handle
8 Safety door latches
9 Door seals and sealing surfaces
10 Cavity face plate
11 Air ventilation cover and openings
12 Power supply cord
13 Air intake filter (Air intake openings)
14 Outer cabinet
DISPLAY AND INDICATORS
Check indicators after the oven starts to confirm the
oven is operating as desired.
1 Cook indicator
This indicator shows cooking in progress.
2 Express Defrost indicator
3 Memory number indicator
4 Double quantity indicator
5 Check mode indicator
6 Digital display
OPERATING KEYS
7 DOUBLE QUANTITY key
8 EXPRESS DEFROST key
9 NUMBER keys
10 SELECT TIME key
11 STOP/CLEAR key
12 SELECT POWER key
13 START key
14 SET key
15 CHECK key
16 SIGNAL key
PART NAMES
OVEN
2/3
SEEG R15AT Eng contents 13.7.9, 8:54 AM4

Sharp R-15AT Specifications

General

Grill	No
Rotisserie	-
Control type	Buttons
Display type	LCD
Product type	Solo microwave
Certification	CE
Product color	Stainless steel
Microwave power	1000 W
Built-in display	Yes
Appliance placement	Countertop
Number of power levels	11
Current	16 A
Connected load	- W
AC input voltage	230 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	424 mm
Width	520 mm
Height	309 mm
Weight	18000 g
Interior dimensions (W x D x H)	351 x 372 x 211 mm
