Sharp R-203FW - Parts List - Electric Parts; Electric Parts List

30
R-201FK/W
R-203FW
R-205FW
R-206FW
6
45
1
2
3
6
45
1
2
3
A
B
C
D
E
F
G
H
A
B
C
D
E
F
G
H
*
*
*
*
*
∆
*
∆
*
*
*
PARTS LIST
Note: The parts marked “∆” may cause undue microwave exposure.
The parts marked “*” are used in voltage more than 250V.

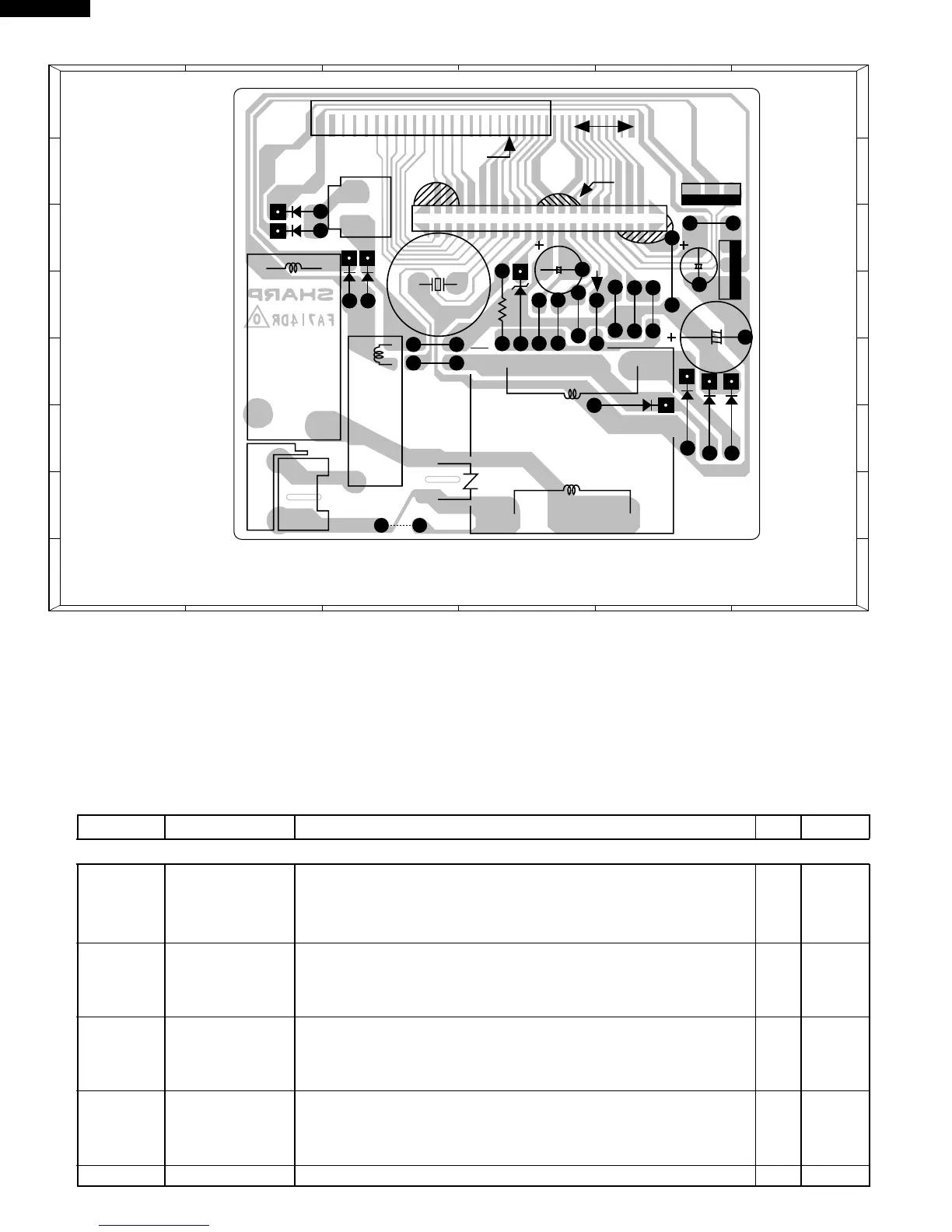

Figure S-3. Printed Wiring Board
REF. NO. PART NO. DESCRIPTION Q'TY CODE
ELECTRIC PARTS
1- 1 QSW-MA085WRE0 Secondary interlock switch/ Door sensing switch 2 AF
1- 1 QSW-MA137WRE0
Secondary interlock switch/ Door sensing switch (Interchangeable) 2AH
1- 2 FFS-BA027WRKZ
C/T fuse (120˚C, 13A) and monitor switch assembly (AM51620C53Y1) 1AS
1- 3 FACCDA079WRE0 Power supply cord 1 AF
1- 3 FACCDA064WRE0 Power supply cord (Interchangeable) 1 AP
1- 4 FH-DZA102WRKZ High voltage rectifier assy 1 AN
1- 4 FH-DZA088WRK0 High voltage rectifier assy (Interchangeable) 1 AP
1- 5 RC-PZA041WRE0 High voltage capacitor 1 AS
1- 5 RC-QZA307WRZZ High voltage capacitor (Interchangeable) 1 AX
1- 5 RC-QZA308WRZZ High voltage capacitor (Interchangeable) 1 AN
1- 6 RMOTEA383WRE0 Fan motor 1 AV
1- 6 RMOTEA355WRE0 Fan motor (Interchangeable) 1 AU
1- 6 RMOTEA408WRZZ Fan motor (Interchangeable) for production use 1 --
1- 7 RV-MZA226WRE0 Magnetron 1 BE
1- 7 RV-MZA306WRZZ Magnetron (Interchangeable) 1 BL
1- 8 RLMPTA082WRZZ Oven lamp 1 AL
1- 9 RMOTDA186WRE0 Turntable motor 1 AW
1- 9 RMOTDA211WRE0 Turntable motor (Interchangeable) 1 AS
1-10 QFS-TA038WRE0 Temperature fuse 120deg. C (Oven) 1 AK
1-11 RTRN-A648WRZZ Power transformer 1 BH
1-11 RTRN-A642WRZZ Power transformer (Interchangeable) 1 BH
DIP
CN-B
C21
T1
S
D2
P
(J1)
1
C8
2
5
E
Q22
B
21
SP1
Q21
(J12)
(J13)
(J14) (J15)
E
C2
R4
3
4
ZD1
D3 D4
D1
VRS1
RY2
RY1
CN-A
1
3
(J11)
(J10)
D20
D21
D40
D22
CHIP
SIDE
UNIT
CODE
