R306LW
12 – 1
R306LW
Service Manual
CHAPTER 12. CIRCUIT DIAGRAMS

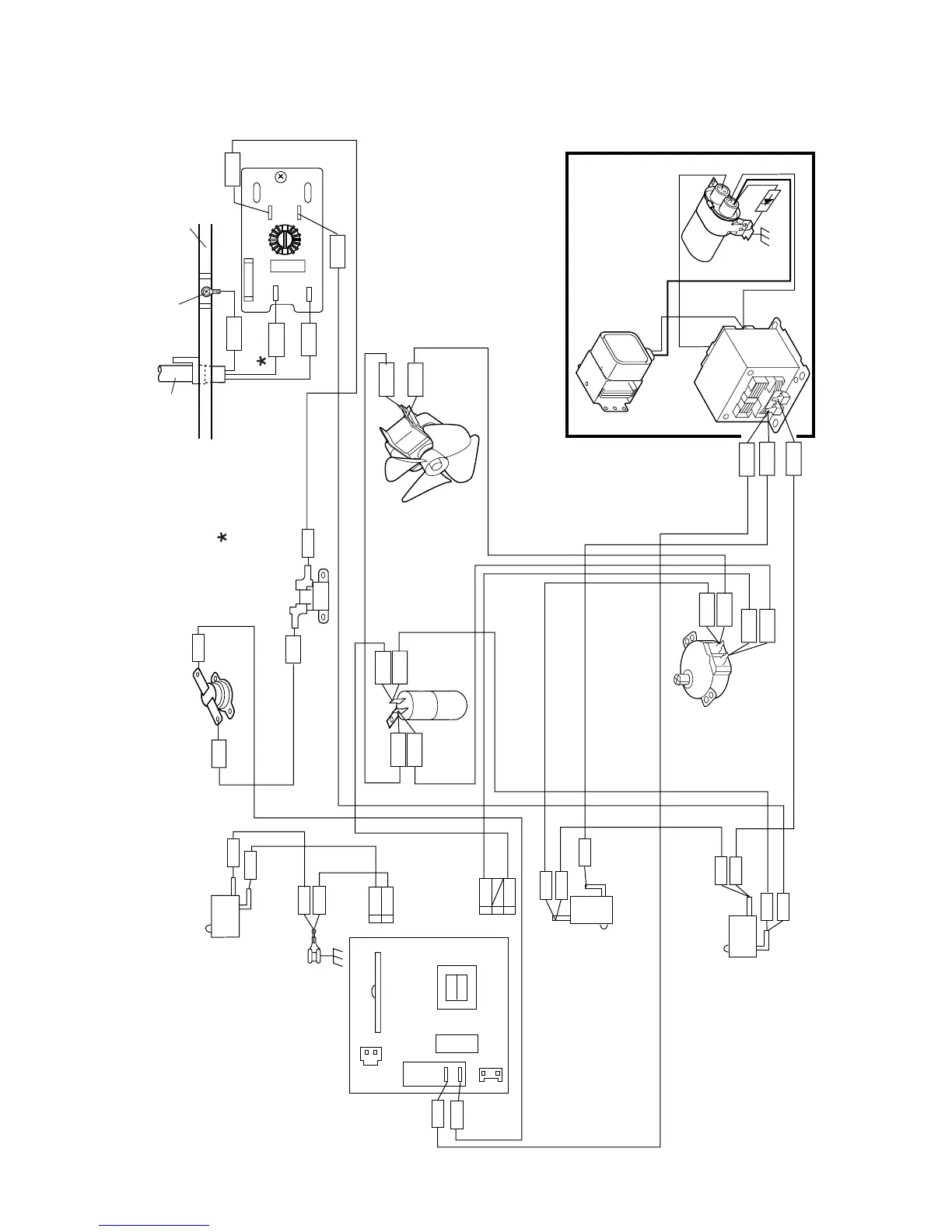

[1] Pictorial Diagram (Figure S-1)
Figure S-1. Pictorial Diagram
GRY
MONITOR
SWITCH
SECONDARY
INTERLOCK SWITCH
COM
COM
BLK
N.C.
N.O.
N.O.
COM
GRY
GRN
GRN
WHT
THERMAL CUT-OUT
(OVEN)
DOOR
SENSING SWITCH
WHT
RED
BLK
TEMPERATURE
FUSE (MAGNETRON)
RED
GRN
CONTROL PANEL
WHT
RY1
PRIMARY
INTERLOCK
RELAY
CN-B
2
1
CN-A
T1
3
1
RY2
RED
PNK
RED
CN-A
2
GRY
1
3
CN-B
2
1
GRN
GRY
COM
N.O.
BLK
GRY
WHT
HIGH VOLTAGE
CAPACITOR
H.V. RECTIFIER
(RED)
(WHT)
(RED)
HIGH VOLTAGE COMPONENTS
MAGNETRON
TURNTABLE
MOTOR
POWER
TRANSFORMER
RED
RED
GRY
GRY
RED
WHT
PNK
GRY
FUSE
FAN MOTOR
WHT
BLK
PNK
OVEN
LAMP
PNK
GRY
GRN
GRY
L
N
WHT
RED
Power Supply
Cord
Oven Cavity
Back Plate
Screw
Noise Filter
GRY
GRY
RED
Connect the wire lead
which has the black case
to the terminal "L" of the
noise filter.
