WIRING DIAGRAMS
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. COOKING TIME PROGRAMMED.
3. DUAL COOK KEY TOUCHED ONCE.
4. START KEY TOUCHED. NOTE: * indicates components with potentials above 250 V.
CUT-OUT
*
10M /0.5W
TRANSFORMER POWER,
230V~SOHz
T/C TRANSFORMER
H.V. RECTIFIER *
NOISE SUPPRESSION COIL
THERMI-
STOR
DAMPER
‘SWITCH
* ASYMMETRIC.
RECTIFIER

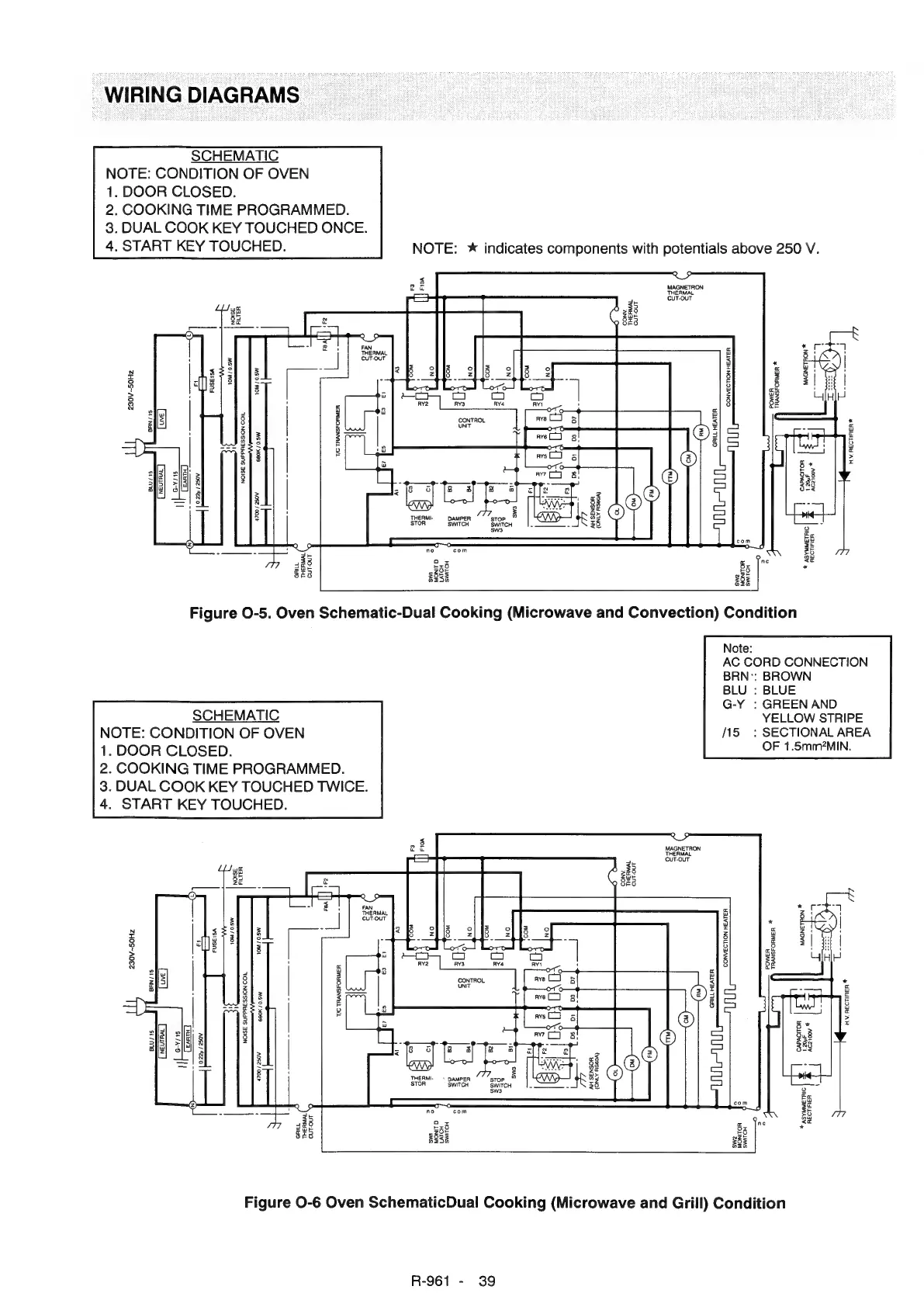

Figure O-5. Oven Schematic-Dual Cooking (Microwave and Convection) Condition
Note:
AC CORD CONNECTION
BRN:: BROWN
BLU : BLUE
G-Y : GREEN AND
YELLOW STRIPE
15 : SECTIONAL AREA
OF 1.5mm2MIN.
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. COOKING TIME PROGRAMMED.
3. DUAL COOK KEY TOUCHED TWICE.
4. START KEY TOUCHED.
MAGNETRON
THERMAL
CUT-OUT
10M /0.5W
230V~50Hz
CONVECTION HEATER
TRANSFORMER
POWER
T/C TRANSFORMER
HV RECTIFIER *
NOISE SUPPRESSION COIL
Treurac]
THERMI- = DAMPER stop
STOR SWITCH SWITCH
SwW3
* ASYMMETRIC
RECTIFIER
Figure O-6 Oven SchematicDual Cooking (Microwave and Grill) Condition
R-961 - 39
